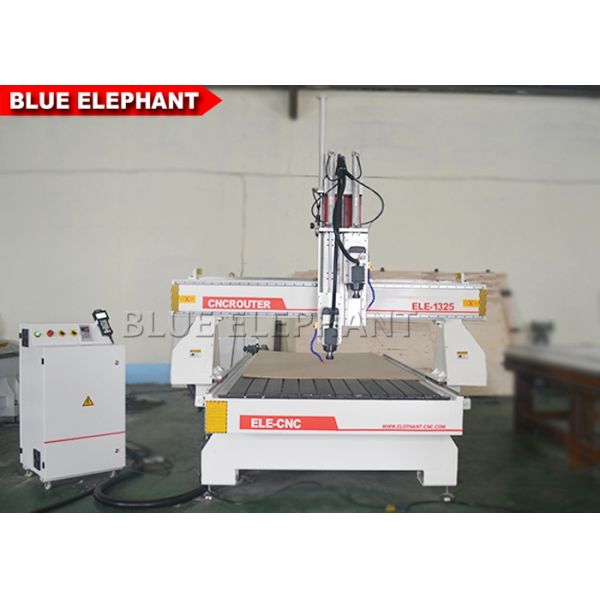

4.5kw Italy HSD air cooling spindle , multi spindle 1325 cnc router machine, wood cnc router machine
Applications and Samples of desktop wood cnc router
1) . WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2) . Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding,and other advertising materials derivatives making.
3) . Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial
marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4) . Relief sculpture and 3D engraving.
5) . Cylindrical object.
Parameter of multi spindle 3d cnc router
Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum and T-slot working table |
Frame Structure | 20mm thickness Heavy-duty Thicken Big Steel Tube Structure |
X, Y Structure | Helical Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption | (Without Spindle) 3.2Kw |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 2* 4.5kw Italy HSD air cooling spindle 1* 3.5kw Changsheng air cooling spindle which can cut 2 cutters |
Spindle Speed | 18000/24000RPM |
Drive Motors | Stepper / Japan YASKAWA Servo |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | Original NC Studio System control system NK105 (Options: SYNTEC control system) |
Working Method | Pneumatic System, spindle work one by one |
Inverter | Imported Delta Inverter |
Collet | ER25 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
Our Service
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems,
we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts
have any problems, we can change the old machine parts to new ones free, but you should pay all
the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts
with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
Company Information
Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .
We have always been developing to the research and manufacturer of CNC router machine and laser
cutting engraving machine .
We have our R & D department , Quality control department , and after sale &service department .
Our products are widely used in Woodworking ,Advertising , Model ,Electric , CAD/CAM Industry model ,
Clothing , Package Printing , Marking , Laser sealing and so on .
We had got CE and FDA certification always offer best quality machine .
Our Philosophy : To Be First Brand -- CNC Manufacturer & wholesaler Platform !
Just looking forward to service every customer, like you .
