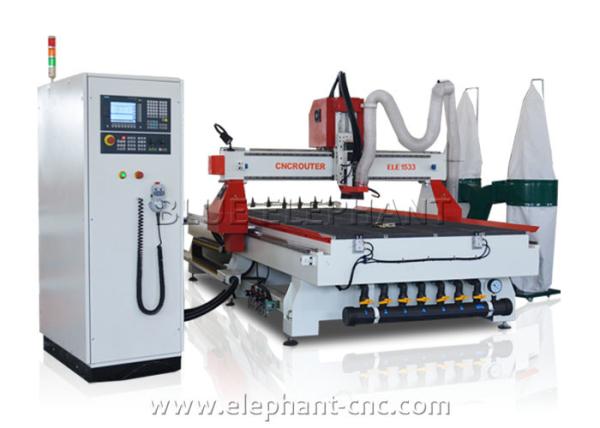

Italy 9kw air cooling spindle , Japan YASKAWA servo 1533 dust collector cnc router wood machine with vacuum system
Italy 9kw air cooling spindle , Japan YASKAWA servo 1533 dust collector cnc router wood machine with vacuum system
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1533
Certification :
CE, ISO9001，SGS，CIQ
Place of Origin :
Jinan City, Shandong Province,China
MOQ :
1set
Price :
15999-25999$
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200sets per Month
Delivery Time :
15-20working days
Packaging Details :
Standard marine export plywood case
Spindle power :
Italy 9kw air cooling spindle
X, Y Structure :
Gear and rack transmission, Taiwan HIWIN Linear Rail
Z Structure :
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
Drive Motors :
Japan YASKAWA servo (Taiwan DELTA servo for optional)
Controlling system :
SIEMENS(SYNTEC, LNC for optional)
Table Surface :
Vacuum and T-slot Combined
Description

Italy 9kw air cooling spindle , Japan YASKAWA servo 1533 dust collector cnc router wood machine with vacuum system

Parameters of atc cnc:

Model ELE-1325 ELE-1530 ELE-1836
X,Y,Z travel( mm) 1300x2500 x 200 1500 x 3000 x200 1800 x 3600 x200
Spindle power Italy 9kw air cooling spindle
Spindle rotation speed 0-24000RPM
Tool collet ISO30
Max. Rapid Travel Rate 60000mm/min
Max. Working Speed 25000mm/min
X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
X,Y,Z Repositioning Accuracy ±0.03mm
Table Surface Vacuum and T-slot Combined
X, Y Structure Gear and rack transmission, Taiwan HIWIN Linear Rail
Z Structure Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
Drive Motors Japan YASKAWA servo (Taiwan DELTA servo for optional)
Controlling system SIEMENS(SYNTEC, LNC for optional)
Working Voltage AC380V,3PH,50/60Hz (Option: 220V)
Tool change type Carousel auto tool change system Linear auto tool change system
Tools number

8 Positions ATC

Service

1 , Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2 , Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3 , Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4 , We offer 24 hours technical support by call, and email.
5 , Our technician can give you remote guide online(Skype or MSN) if you have any question.
6 , We can record videos of operating the laser machine.
7 , Free training course in our factory.
8 . Machine will be adjusted before it is delivered , operation disk/CD was included.

Company Information

Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .

We have always been developing to the research and manufacturer of CNC router machine and laser

cutting engraving machine .

We have our R & D department , Quality control department , and after sale &service department .

Our products are widely used in Woodworking ,Advertising , Model ,Electric , CAD/CAM Industry model ,

Clothing , Package Printing , Marking , Laser sealing and so on .

We had got CE and FDA certification always offer best quality machine .

Our Philosophy : To Be First Brand -- CNC Manufacturer & wholesaler Platform !

Just looking forward to service every customer, like you .

Samples:

Italy 9kw air cooling spindle , Japan YASKAWA servo 1533 dust collector cnc router wood machine with vacuum system

Italy 9kw air cooling spindle , Japan YASKAWA servo 1533 dust collector cnc router wood machine with vacuum system
