Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1325
Certification :
CE, ISO9001,SGS,CIQ
Place of Origin :
Jinan City, Shandong Province,China
MOQ :
1set
Price :
6999-12999
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200sets per Month
Delivery Time :
15-20 working days
Packaging Details :
Standard marine export plywood case
Spindle :
9KW Air cooling HSD spindle
Inverter :
11kw Delta inverter
Transmission :
X, Y axis: High precision Rack Gears; Z axis: imported Ball Screw
X, Y, Z Rail :
Square Rail
Frame :
Tube structure
Table surface :
T slot combined & stainless steel tank
Description

Japan / Taiwan / German servo motor , Taiwan linear rail , Taiwan SYNTEC controller , ELE - 1325 wood carving machine

CNC Router machine Features:

1 , Welded structure by thick profiled steel

2 , Assembled with precise parts such as: Japan/Taiwan/German servo motor, Taiwan linear rail, Taiwan SYNTEC controller, French Schnerider low-voltage apparatus .

3 , Automatic lifting device for vacuum suckers allows the easy operation for the job on the side of working pieces. Vacuum working table is with double cavities and bakelite material with high absorption power.

4 , Imported Syntec high performance control system, separated keyboard control, color LCD display.

5 , With Italian combination drills, the machine can finish various processes one time including drilling, edge cutting, engraving, slotting, and lock hole making and expanding for the wooden door panels with complicated processing requirement.

CNC Router Parameters:

working area 1300X2500X220mm
Max moving speed 40000mm/min
Max Engraving Speed 25000mm/min
Reposition Accuracy <0.05/300mm
Spindle 9KW Air cooling HSD spindle
Inverter 11kw Delta inverter
Spindle rotation: 6000-24000rpm
Packaging Details: Free fumigation wooden box for atc cnc router
Tool diameter 2mm-20mm
Transmission X, Y axis: High precision Rack Gears; Z axis: imported Ball Screw
X, Y, Z Rail Square Rail
Beam Steel
Frame Tube structure
Table surface T slot combined & stainless steel tank
Control System SYNTEC Control System from Taiwan

Typeset

software

Type3, Art CAM
Motor/ Driver YASKAWA Motor from Japan
Voltage: AC380V/50HZ

Warranty & after-sale service

1 , 18 months warrantry for the whole machine.

2 , Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.

3 , we offer you free training towards the machine in our factory.

4 , free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support for the machine.

Application and samples:

Wood MDF, Plastic, PVC, Acrylic sheet, Glass, Plywood, Aluminum sheet. Solid wood, Alucobond, wave board, screen, calligraphy tablet and so on.

1 . Furniture Industry
2 . Decoration Industry
3 . Musical Instrument Industry
4 . Mould Industry
5 . Craft Industry
6 . Advertising Industry

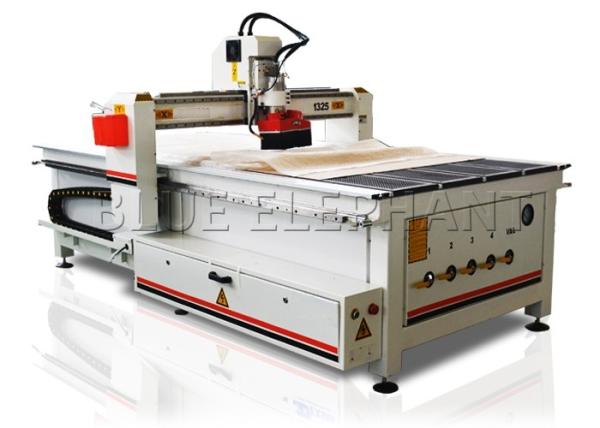

Japan / Taiwan / German servo motor , Taiwan linear rail , Taiwan SYNTEC controller , ELE - 1325 wood carving machine

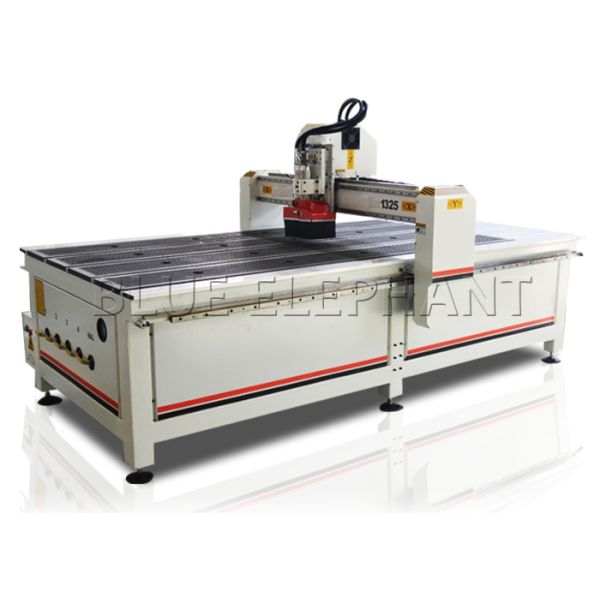

Japan / Taiwan / German servo motor , Taiwan linear rail , Taiwan SYNTEC controller , ELE - 1325 wood carving machine
