Easy operation machine for woodworking , cnc router machine for antique furniture wood
Easy operation machine for woodworking , cnc router machine for antique furniture wood
Easy operation machine for woodworking , cnc router machine for antique furniture wood
Easy operation machine for woodworking , cnc router machine for antique furniture wood
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1325
Certification :
CE, ISO9001, SGS, CIQ
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $3,599 - 9,999 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10-15 working days
Packaging Details :
Standard marine export plywood case
Voltage :
380V/220V,3phase,50/60HZ
Dimension(L*W*H) :
3200*2140*1850mm
After-sales Service Provided :
Engineers available to service machinery overseas
spindle :
Italy 4.5KW air cooling spindle
Inverter :
5.5kw Taiwan DELTA inverter
driver :
Leadshine 860H
motor :
FL118 stepper motor
controll system :
off-line DSP controll with USP port
thansmission :
helical rack and gear and Taiwan HIWIN linear guide
table :
vacuum adsorption table
structure :
Welded structure
Description

Easy operation machine for woodworking , cnc router machine for antique furniture wood

Product Description

Features:

  • 1300x2500x200 working area
  • 4.5 kw Italy HSD air cooling spindle,18000rpm

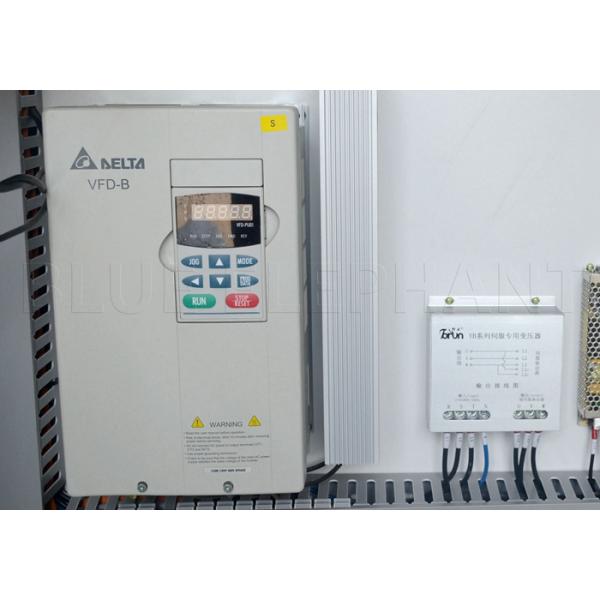

  • 5.5 kw Taiwan Delta inverter
  • DSP A11 control system
  • FL118 stepper motor and YAKO 2811 big driver
  • Imported Taiwan HIWIN 20# Square Linear Guide
  • Z axis Original Taiwan TBI ball screw Transmission

  • T-slot and vacuum working table

  • Japan Ormon Limit Switch
  • France Schneider safety switch

  • Seperated control box

  • Voltage 380V 3phase 50HZ (option:220v)
  • Plywood case Package
  • Type3/Artcam software

​Advantages:

---The roller in front, for easy uploading.

---Taiwan #20 HIWIN linear guide, import from Taiwan, top brand in the world, with long life.

---Adopt Italy HSD air cooling spindle, top brand in the world.

Main parts:

Easy operation machine for woodworking , cnc router machine for antique furniture wood

Easy operation machine for woodworking , cnc router machine for antique furniture wood

Easy operation machine for woodworking , cnc router machine for antique furniture wood

Technical Parameters:

Number Description Parameter
1 X,Y,Z Working Area 2000x3000x200mm
3 X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
4 X,Y,Z Repositioning Accuracy ±0.03mm
5 Table Surface T-slot Table
6 Spindle 4.5kw HSD air cooling spindle
7 X, Y Structure 20#Taiwan HIWIN Linear guide and helical rack
8 Z Structure Ball screw and#20 Taiwan HIWIN Linear guide
9 Stepper Motor FL118
10 Max. Rapid Travel Rate 45000mm/min
11 Max. Working Speed 30000mm/min
12 Stepper driver YAKO 2811 Driver
13 Spindle Speed 0-18000RPM
14 Lubrication system Manual or auto
15 Inverter 5.5kw Taiwan Delta Inverter
16 Command Language G Code
17 Control System DSP A11
18 Computer Interface USB
19 Flash Memory 512M(U Disk)
20 Collet ER25
21 X,Y Resolution <0.01mm
22 Software Compatibility Type3 Software, (Option: Artcam Software)
23 Running Environment Temperature 0 - 45 Centigrade
24 Relative Humidity 30% - 75%

Applications:

1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.

Easy operation machine for woodworking , cnc router machine for antique furniture wood
