ELE 1530 CNC Router Woodworking Machine for sign making with 1500x3000x400 working area
ELE 1530 CNC Router Woodworking Machine for sign making with 1500x3000x400 working area
ELE 1530 CNC Router Woodworking Machine for sign making with 1500x3000x400 working area
ELE 1530 CNC Router Woodworking Machine for sign making with 1500x3000x400 working area
ELE 1530 CNC Router Woodworking Machine for sign making with 1500x3000x400 working area
ELE 1530 CNC Router Woodworking Machine for sign making with 1500x3000x400 working area
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1530
Certification :
CE, ISO9001, SGS, CIQ
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $5,800 - 9,800 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10-20 working days
Packaging Details :
Standard marine export plywood case
Voltage :
AC380V/50/60Hz,3PH (Option: 220V)
Power(W) :
6kw
Warranty :
12 months
After-sales Service Provided :
Engineers available to service machinery overseas
spindle :
4.5 KW Italy HSD air cooling spindle
Motor and driver :
750w Japan YASKAWA servo system
Inverter :
5.5kw Delta inverter
Working area :
1500x3000*400mm
Control system :
DSP A11 control system
Working table :
T-slot working table
Spindle Speed :
0-18000RPM
Description

ELE 1530 Manufacturer supplier Shandong cnc machine , wood cnc machine for sign making

Features:

  • 1500x3000x400 working area
  • 4.5Kw Italy HSD air cooling spindle ,18000rpm
  • 5.5 KW Taiwan DELTA inverter
  • DSP A11 control system
  • 750w Japan YASKAWA servo motor and driver
  • Imported Taiwan HIWIN #20 Square Linear Guide
  • Z axis Original Taiwan TBI ball screw Transmission
  • Vacuum and T-slot table
  • Intergrated control box
  • Manual or auto Oil Lubrication system
  • Japan Omron Limit Switch
  • Voltage 380v, 3phase ,50HZ(220V for optional)
  • Plywood case Package
  • Type3/Artcam software

Advantages:

1. Heavy duty structure,Z axis 400mm

2. Japan 750W YASKAWA servo motor and driver

3. Original 4.5Kw Italy HSD spindle

Technical Parameters:

Description Parameter
X,Y,Z Working Area 1500x3000x400mm
Table Surface T-slot working table
Frame Welded structure steel tube frame
X, Y Structure 20#Taiwan HIWIN Linear guide and helical rack
Z Structure Taiwan TBI Ball screw and#20 Taiwan HIWIN Linear guide
Spindle Power 4.5KW Italy HSD air cooling spindle
Spindle Speed 0-18000RPM
Drive Motors 750w Japan YASKAWA servo motor and driver
Inverter 5.5 kw Taiwan Delta Inverter
Command Language G Code
Control System DSP A11
Computer Interface USB
Collet ER32
X,Y Resolution <0.01mm
Software Compatibility Type3 Software, (Option: Artcam Software)
Running Environment Temperature 0 - 45 Centigrade
Relative Humidity 30% - 75%

PS:All the working area and specifications can be customized according to your requests.

Applications:

Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.Also can processing aluminum,pvc,acrylic,pcb,mdf,stone,etc.

Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.

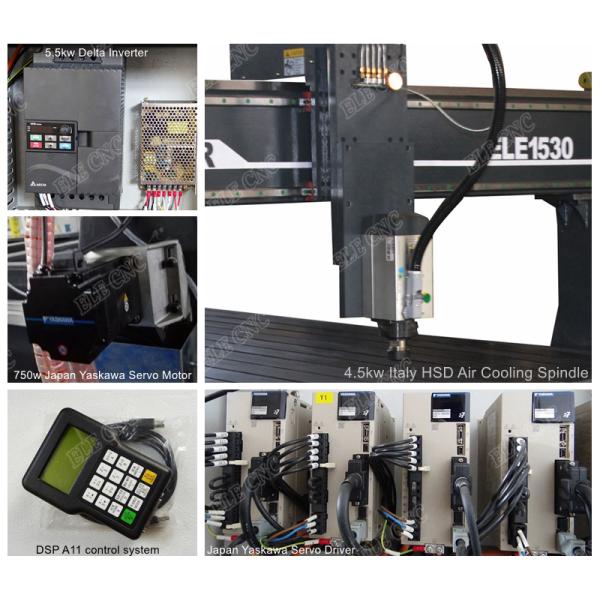

Main parts:

ELE 1530 CNC Router Woodworking Machine for sign making with 1500x3000x400 working area
