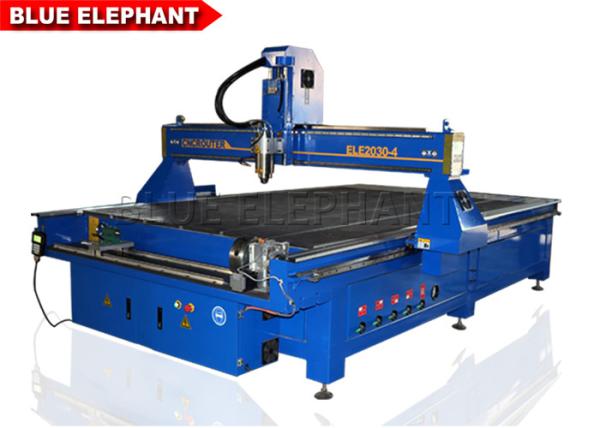

ELE 2030 4 Axis CNC Router Machine , wood cutting machinery for wood furniture making
ELE 2030 4 Axis CNC Router Machine , wood cutting machinery for wood furniture making
ELE 2030 4 Axis CNC Router Machine , wood cutting machinery for wood furniture making
ELE 2030 4 Axis CNC Router Machine , wood cutting machinery for wood furniture making
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE2030
Certification :
CE, ISO9001, SGS, CIQ
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $3,800 - 8,700 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10-20 working days
Packaging Details :
Standard marine export plywood case
Voltage :
AC 220V/1PH/50HZ(380V/3PH optional)
Power(W) :
7kw
Warranty :
12 months
After-sales Service Provided :
Engineers available to service machinery overseas
spindle :
6kw Changsheng water cooling spindle
Motor and driver :
Stepper system
Inverter :
7.5kw Fuling inverter
Working area :
2000*3000mm
Control system :
USB interface
Working table :
Vacuum&t-slot working table
Spindle Speed :
0-24000RPM
Operating system :
DSP A18 for 4 axis
Description

ELE 2030 china jinan hot sale cnc router machine , wood cutting machinery for wood furniture making

Features:

  • Effective working area:2000*3000mm
  • Z axis 300mm
  • 6Kw water cooling spindle,24000rpm
  • 7.5kw Fuling inverter
  • Stepper motor and drivers
  • Rotary device:Integrated infront equipment 200*1400mm
  • Control system DSP A18 with USB interface
  • HIWIN#20 linear square guide way for X,Y,Z axis
  • Taiwan TBI ball screw for Zaxis
  • Vacuum and T-slot table
  • Japan OMRON limit switch for X,Y,Z axis
  • Tool sensor calibrate
  • Oil Lubrication System
  • Water mist cooling sprayer system
  • 7.5KW water circulation vacuum pump
  • 1.5KW newty pedust collector with two bags
  • Voltage:380V,3phase,50HZ

Technical Parameters:

Description Parameter
X,Y,Z Working Area 2000x3000x200mm
Table Surface Vacuum and T-slot Table
Frame Welded Structure
X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure Hiwin Rail Linear Bearings and TBI Ball Screw
Spindle Power 6KW Changsheng water cooling spindle
Spindle Speed 0-24000RPM
Motors FL118 stepper motor
Driver YAKO 2608
Inverter 7.5kw Fuling inverter
Working Voltage AC380V/50/60Hz,3PH (Option: 220V)
Command Language G Code
Operating System DSP A18
Computer Interface USB
Collet ER25
X,Y Resolution <0.01mm
Software Compatibility Type3/UcancameV9 Software, (Option: Artcam Software)
Running Environment Temperature 0 - 45 Centigrade
Relative Humidity 30% - 75%

PS:All the working area and specifications can be customized according to your requests.

Applications:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,

craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

crystal word making, blaster molding, and other advertising materials derivatives making.

3. die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as

artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4. relief sculpture and 3D engraving

Main parts:

ELE 2030 4 Axis CNC Router Machine , wood cutting machinery for wood furniture making
