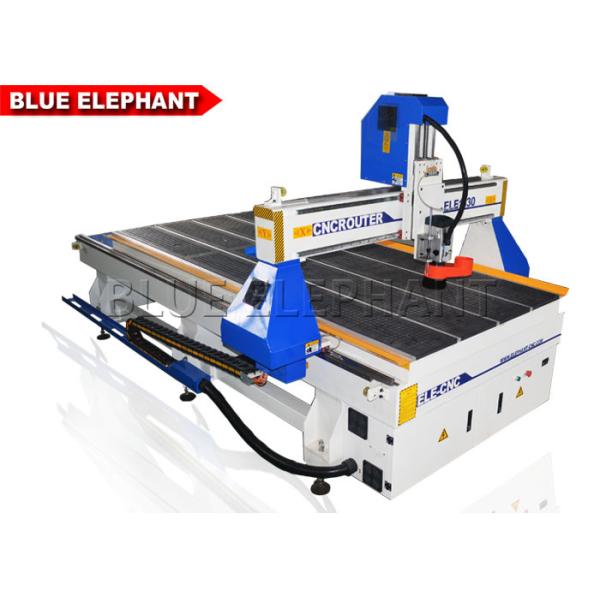

ELE 1330 3d Wood Carving Cnc Router Machine For Sign Making CIQ Certification
ELE 1330 3d Wood Carving Cnc Router Machine For Sign Making CIQ Certification
ELE 1330 3d Wood Carving Cnc Router Machine For Sign Making CIQ Certification
ELE 1330 3d Wood Carving Cnc Router Machine For Sign Making CIQ Certification
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1325
Certification :
CE, ISO9001, SGS, CIQ
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $4,999 - 9,999 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10-15 working days
Packaging Details :
Standard marine export plywood case
Voltage :
380v, 3 phase, 50/60HZ(Optional:220v)
Dimension(L*W*H) :
3700*2140*1950mm
X,Y,Z Working Area :
1300x3000x400mm
Control system :
NCstudio
Spindle power :
4.5kw Italy HSD Air Cooling spindle
Spindle speed :
0-18000RPM
Description

ELE 1330 3d cnc wood carving router , china cnc wood router for sign making

ELE 1330 3d Wood Carving Cnc Router Machine For Sign Making CIQ Certification

Features:

  • 4.5 kw HSD ATC air cooling spindle from Italy
  • 5.5kw Delta inverter from Taiwan
  • NCstudio control system
  • 750w Leadshine mixed servo motor
  • 7.5kw Whirlpool vacuum pump
  • Vacuum and T-slot working table
  • #20 HINWIN square linear guide
  • Taiwan TBI ball screw
  • 380V,3PH,50HZ(220V for optional)

Parameters:

Description Parameter
X,Y,Z Working Area 1300x2500x200mm
Spindle 4.5kw HSD air cooling spindle
Inverter 5.5kw Delta Inverter
Motor driver 750w Leadshine mixed servo
Spindle Speed 0-18000RPM
Control System NCstudio
Table Surface T-slot&vacuum Table
X, Y Structure #20 Taiwan HIWIN Linear guide and helical rack
Z Structure Ball screw and#20 Taiwan HIWIN Linear guide
Max. Rapid Travel Rate 45000mm/min
Max. Working Speed 30000mm/min
X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
X,Y,Z Repositioning Accuracy ±0.03mm
Lubrication system Manual
Command Language G Code
Computer Interface USB
Collet ER32
X,Y Resolution <0.01mm
Software Compatibility Type3 Software, (Option: Artcam Software)
Running Environment Temperature 0 - 45 Centigrade
Relative Humidity 30% - 75%

Applicantion:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.

4. relief sculpture and 3D engraving

FAQ

Q:This is the first time I use this kind of machine, is it easy to operate?


Re: There are english manual or guide video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

Q:If machine have any problem after I receive it, how can I do ?


Re:Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.


Q: MOQ
Re: 1 set machine, mixed order is also welcomed.

Q: How can I buy this machine from you? ( Very easy and flexible !)

1. Consult us about this product on line or by e-mail.

2. Negotiate and confirm the final price , shipping , payment methods and other terms.

3. Send you the proforma invoice and confirm your order.

4. Make the payment according to the method put on proforma invoice.

5. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.

6. Send your order by air or by sea.

Our Factory

Jinan Blue Elephant CNC Equipment Co., Ltd is located in Jinan City , Shandong Province .
We have always been developing to the research and manufacturer of CNC router machine and plasma cutting machine .
We have our R & D department , Quality control department , and after sale & service department .
Our products are widely used in Woodworking , Advertising , Model , Electric , CAD / CAM Industry model , Clothing , Package Printing , Marking , Laser sealing and so on .
We had got CE and SGS certification , always offer best quality machine .
Welcome to visit our factory!

Main parts:

ELE 1330 3d Wood Carving Cnc Router Machine For Sign Making CIQ Certification

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. inner package: Stretchy film and plastic film for humidity.

3. We can package according to your requests.

ELE 1330 3d Wood Carving Cnc Router Machine For Sign Making CIQ Certification

Delivery Detail: Shipped in 25-30 working days after payment.

Guarantee and After-sale service:

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.

Welcome to our factory:

ELE 1330 3d Wood Carving Cnc Router Machine For Sign Making CIQ Certification

  • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
  • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
  • Just looking forward to service every customer, like you.

Contact us:

Mobile: 0086-15064026772

Web: www.elephant-cnc.com
