1325 Combination Woodworking Cnc Router Cutting Machine With DSP A11 Control
1325 Combination Woodworking Cnc Router Cutting Machine With DSP A11 Control
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1325
Certification :
CE, ISO9001, SGS, CIQ
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $3,999 - 6,999 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10-15 working days
Packaging Details :
Standard marine export plywood case
Voltage :
AC380V/50/60Hz,3PH (Option: 220V)
Dimension(L*W*H) :
3200*1840*1900mm
Spindle power :
3.5kw Changsheng air cooling spindle
Control system :
DSP A11
Transmission :
Taiwan TBI Ball Screw
Guide rail :
#20 Hiwin Square Guide Rail
Description

1325 combination woodworking machine , cnc machine router with best price

Product Description

Features:

  • Working area: 1300mm*2500mm*200mm
  • Steel gantry , strong structure
  • 3.5kw Changsheng air cooling spindle
  • 3.7kw Fuling inverter
  • Z axis with Taiwan TBI Ball screw transmission
  • X,Y axis with high precision helical rack gear transmission
  • X,Y,Z axis with Taiwan TBI/PMI/HIWIN Linear Guide
  • DSP A11 control ststem
  • FL118 stepper motor , Leadshine 860H driver
  • Artcam /Type 3 software
  • Voltage:380V, 3phase, 50/60HZ(220v for optional)

Technical Parameters:

X,Y,Z Working Area 1300x2500x200mm
Table Surface T-slot Table
Spindle 3.5kw Changsheng air cooling spindle
X, Y Structure #20 Taiwan HIWIN Linear guide and helical rack
Z Structure TBI Ball screw and #20 Taiwan HIWIN Linear guide
Driver and Motor Stepper
Software Artcam /Type 3 software
Spindle Speed 0-18000RPM
Lubrication system Manual
Inverter 3.7kw Fuling Inverter
Command Language G Code
Control System DSP A11
Computer Interface USB
Collect ER20
Software Compatibility Type3 Software, (Option: Artcam Software)
Running Environment Temperature 0 - 45 Centigrade
Relative Humidity 30% - 75%

Application:

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,

craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as

artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4. relief sculpture and 3D engraving

Our Services

1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8. Machine will be adjusted before it is delivered , operation disk/CD was included.

Packaging and shipping:

1. Outside Package:Standard export wooden case .

2. Inner package:strech film .
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.

For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.

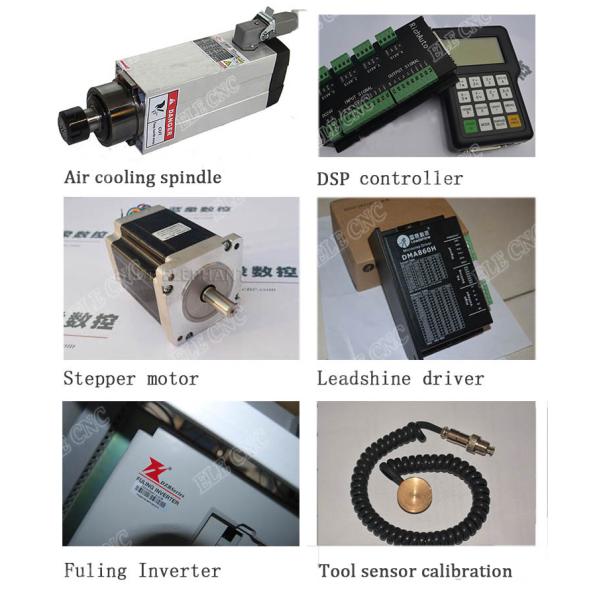

Main Parts:
1325 Combination Woodworking Cnc Router Cutting Machine With DSP A11 Control

We are looking for agents from all over the world,Welcome to visit our factory!

1325 Combination Woodworking Cnc Router Cutting Machine With DSP A11 Control
