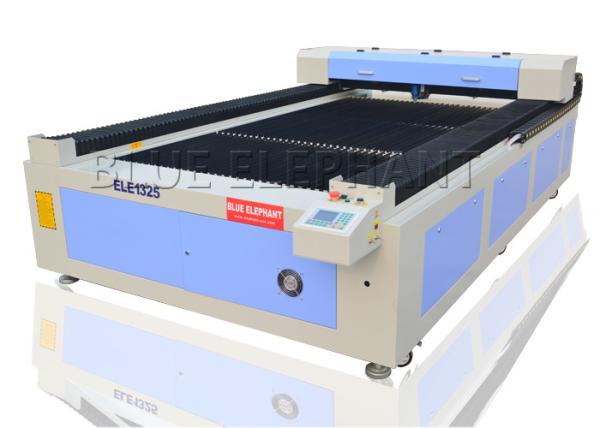

Auto Focus Co2 Laser Engraving And Cutting Machine Metal Cutting With Assistance Gas
Auto Focus Co2 Laser Engraving And Cutting Machine Metal Cutting With Assistance Gas
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1325
Certification :
CE, ISO9001, SGS, CIQ
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $2,599 - 9,999 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10-15 working days
Packaging Details :
Standard marine export plywood case
Laser Power :
130-160w
Working table :
Aluminum Knife
Driving system :
stepper( optional servo)
Working voltage :
AC220V 1ph 50Hz
Whole machine size :
3400*1830*1100mm
Extra rotary device for cylindrical :
100mm rotary diameter
Description

Auto focus laser head cnc laser cutter , co2 metal laser cutting machine with assistance gas

Product Description
Specification:
ItemsParameter
ModelELE 1325 laser metal cutting machine
Working area1300 * 2500mm
Whole machine size3400 * 1830 * 1100mm
Laser-typeSealed CO2 laser tube
Laser power130-160w
Cooling modeWater-cooling and protection system
Cutting Speed60,000mm/min
Resetting position accuracy±0.05mm
Exhausting methodExhausted by funnel
Graphic format supportedAI BMP DST DWG DXF DXP LAS PLT
Controlling softwareRuida laser controller with colored screen
Compatible softwareCorelDraw,AutoCAD,Photoship
Draving systemStepper
Working voltageAC220V 1ph 50Hz
Operating temperature0-45℃
Operating humidity5-95%

Features of co2 laser engraver:

  • Mixed-cut: metal steel such as stainless steel,carbon steel,and nonmetal such as acrylic,wood,etc.
  • High precision: X/Y axis adopt Leadshine servo motor with high precision belt transmission,improve the response speed and cutting precision,extend service life.
  • Good stability: optimized the nc system control,it can meet the precision parts processing,stable dynamic performance,also can work for long hours.
  • The cutting section with good quality: mechanical follow-up cutting head system,cutting head always follows the material to keep the cutting point locaation unchanged,which insures smooth cutting section without processing again.It can adopt to flat or curved surface sheet cutting.
  • Adopt sealed co2 laser tube,main consumable items are electric energy,water cooling,auxiliary gas and laser light.
  • Simple structure,easy operation,stable laser device and low maintenance cost.

​

Instructions of laser cutting machine:

  • 1300*2500mm table size.
  • RECI laser tube W6 model.
  • Ruida laser controller with colored screen.
  • Auto focus laser head for metal sheets cutting with assistance gas.
  • CW5200 water chiller.
  • Adjust table hight. 1/3.
  • Extra rotary device for cylindrical cups:100mm rotary diameter.

​

Application:


Applicable Industry:
Advertising industry(stainless steel and acrylic),sheet metal industry(carbon steel),package industry(die board),and so on.

Applicable Materials:

Acrylic,stainless steel,carbon steel,MDF,die board,etc.

Packaging & Shipping

Package: Standard polywood case for 1325 laser metal cutting machine.
Shipping: within 7 working days after receiving your payment.
you can choose air transport, ocean shipment, DHL etc.

If you have any questions or need,pls contact me .
