Antique Furniture Multi - Head CNC Router Cnc Wood Door Engraving Machine
Antique Furniture Multi - Head CNC Router Cnc Wood Door Engraving Machine
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1325
Certification :
CE, ISO9001, SGS, CIQ
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $5,800 - 10,350 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month cnc router
Delivery Time :
10-20 working days
Packaging Details :
Standard marine export plywood case
Voltage :
AC220V/3PH/50HZ(option:380v)
Dimension(L*W*H) :
3050*1940*2200mm
Spindle power :
1 set 4.5kw and 2 sets 3kw Italy HSD air cooling spindle
Control system :
DSP A15 control system
Spindle speed :
0-18000rpm
Working area :
1300*2500*200mm
Description

ELE 1325 high precision cnc wood door engraving machine , cnc router for untique furniture

Antique Furniture Multi - Head CNC Router Cnc Wood Door Engraving Machine

Advantages:

  • New type thicker and bigger heavy duty welded frame and gantry

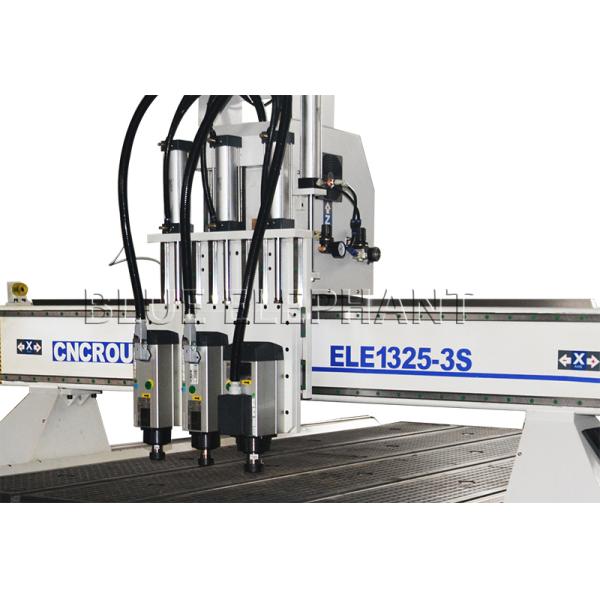

  • 2* 3 KW HSD + 4.5 KW HSD air cooling spindle with good quality for cutting and carving.
  • YAKO 2811 bigger and stronger driver for long time working.

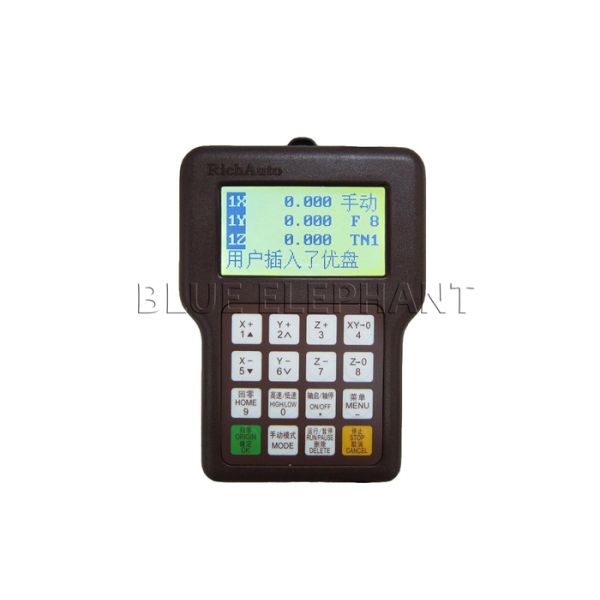

  • DSP A15 handle controller ,very convenience for operation.

Features:

------working size:1300*2500*200mm

------spindle:3kw*2 HSD air cooling spindle; 4.5kw HSD air cooling spindle

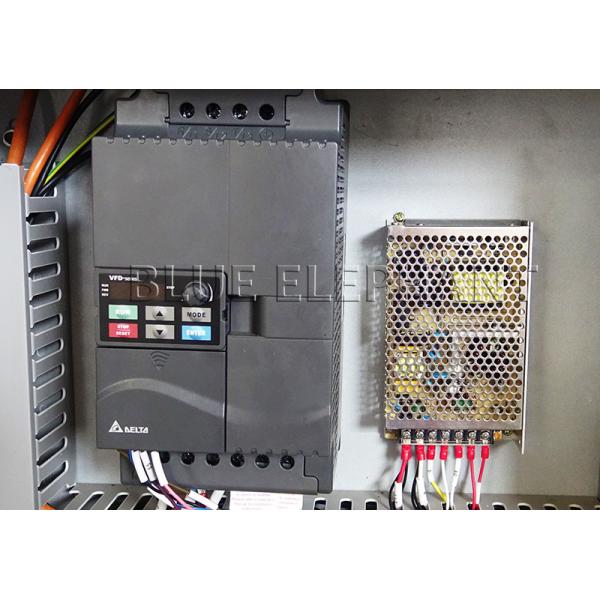

------Inverter:5.5kw Taiwan Delta inverter

------DSP A15 control system

------motor and driver: FL118 stepper motor and YAKO 2811 bigger and stronger driver

------working table:T-slot &vacuum work table

------Taiwan HIWIN Linear Guide #20 for XYZ axis

------helical rack & gear transmission for XY axis

------Taiwan TBI ball screw for Z axis

------Japan Omron Limit switch

------FrenchSchneider rotary safety switch

------New type thicker and bigger heavy duty welded frame and gantry

----- 5.5kw air type circulation vacuum pump

------Dust hood 4 pieces with 3 pipe and one support

------220 v 3phase 50 hz(380v for optional)

Parameters:

Descriptions Parameters
Modle ELE1325-3S
Working area 1300*2500*200mm
Control system DSP A15 control system
Spindle 1 set 4.5kw HSD air cooling spindle , 2 set 3kw HSD air cooling spindle
Spindle speed 0-18000RPM
Inverter 5.5kw Taiwan DELTA Inverter
Motor and driver FL118 stepper motor , YAKO 2811 big driver
Voltage 220V, 3ph, 50Hz(380v for optional)
Linear rail Taiwan HINWIN/PMI 20# linear guide
Table structure New type thicker and bigger heavy duty welded frame and gantry
Table surface Vacuum T-slot working table,4 zones
X,Y axis transmission Helical rack and pinion drive for X,Y axis
Z axis transmission Taiwan TBI 2510 ball screw for z axis
Vacuum pump 5.5kw air type circulation vacuum pump

Applications:

Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to wood , MDF , acrylic , mainly for doors , cabinet , furniture , any wooden products, antique furniture, crafts gifts, relief processing.

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sign making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

Product details:

Antique Furniture Multi - Head CNC Router Cnc Wood Door Engraving Machine

Antique Furniture Multi - Head CNC Router Cnc Wood Door Engraving Machine

Antique Furniture Multi - Head CNC Router Cnc Wood Door Engraving Machine

Packaging & Delivery


Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.

Antique Furniture Multi - Head CNC Router Cnc Wood Door Engraving Machine

Our Factory

Antique Furniture Multi - Head CNC Router Cnc Wood Door Engraving Machine

Contact us:

Skype: elephantcnc
WhatsApp/Mobile: 0086-15064026772
Web: www.elephant-cnc.com
