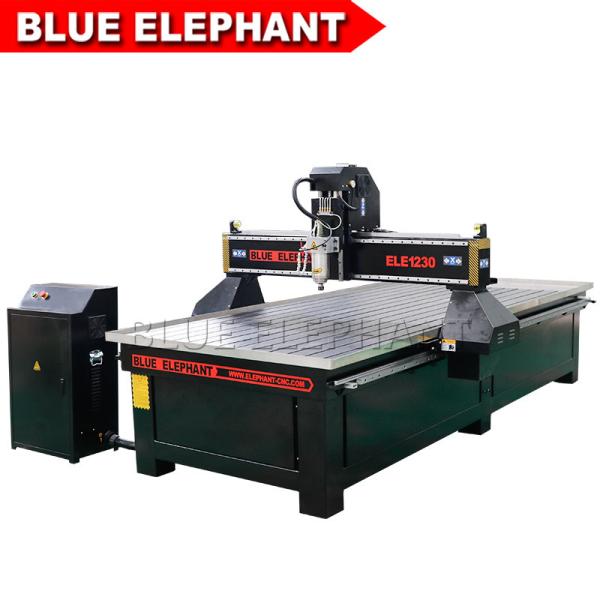

Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone
Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone
Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone
Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone
Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone
Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone
Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone
Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELECNC- 1530
Certification :
CE, ISO9001, SGS, CIQ
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1set
Price :
US $6,000 - 7,999 / Set
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10-20 working days
Packaging Details :
Standard marine export plywood case
X,Y,Z Working Area :
1200x3000x200mm
Table Surface :
T-slot +PVC protection working table
Structure :
Industrial class square tube strong structure
X, Y, Z axis Structure :
Rack and gear for 3 axis, X axis, Y axis, Z axis
Transmission :
Taiwan PMI/ABBA square linear guide way for 20mm Taiwan TBI ball screw
X,Y Resolution :
<0.01mm
Spindle Power :
Changsheng 3kw water cooling spindle
Spindle Speed :
0-24000RPM
Drive Motors :
FL118 stepper motor and YAKO2811 drive
Inverter :
Fuling 3.7kw inverter
Description

Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

Features:

  • The latest multi-functional stone engraving machine.
  • After improvement, the large water tank is more practical, avoiding the turbulent flow of water in the water spray process of spindle.
  • At the same time, additional mist cooling spray device can also help you process Soft metals like gold, copper, aluminum and pvc etc.
  • The combination of water-cooled spindles, stepper motors and ABBA square rails etc makes this economical and practical type featured available.

Parameters:

Description Parameter
X,Y,Z Working Area 1200x3000x200mm
Table Surface T-slot +PVC protection working table
Structure Industrial class square tube strong structure
X, Y, Z axis Structure Rack and gear for 3 axis, X axis, Y axis, Z axis
Transmission Taiwan TBI ball screw
X,Y Resolution <0.01mm

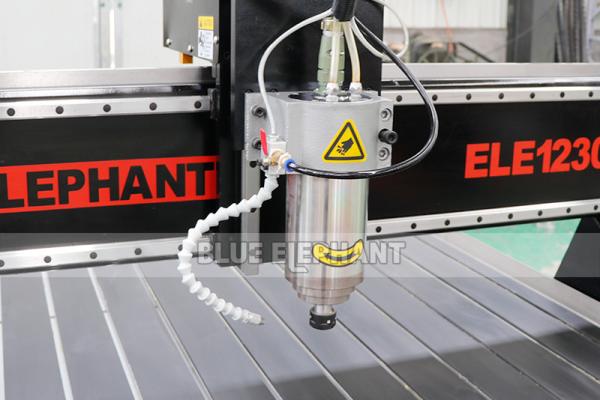

Spindle Power Changsheng 3kw water cooling spindle
Spindle Speed 0-24000RPM
Drive Motors FL118 stepper motor and YAKO2811 drive
Inverter Fuling 3.7kw inverter
Control System Mach3 3 axis control system
Lubrication Manual Lubrication system
Tool sensor Manual tool sensor calibration
Control box Single Control box
Option Water tank for option;

Water mist cooling sprayer;

Dust collector system
Limit switch Japan OMRON limit switch for X, Y, Z axis
Command Language G Code
Computer Interface USB
Software Compatibility ARTCAM software
Running Environment Temperature 0 – 45 Centigrade
Relative Humidity 30% – 75%

PS:All the working area and specifications can be customized according to your requests.

Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

Packaging & Delivery

  1. Outside package:Standard marine export plywood case.
  2. inner package:Stretch film and plastic film for humidity.
  3. We can package according to your requests.
  4. Delivery Detail: Shipped in 15 working days after payment.

Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

Our Factory

  • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
  • We have our R & D department, Quality control department, and after sale & service department.
  • Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
  • We had got CE and ISO9001 certification always offer best quality machine.

Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone

Customized 1230 CNC Wood Router for Engraving Thin Metal and Heavy Stone
