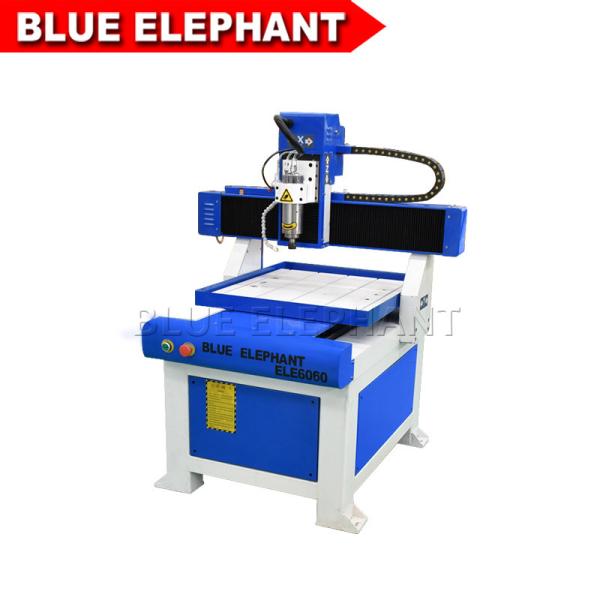

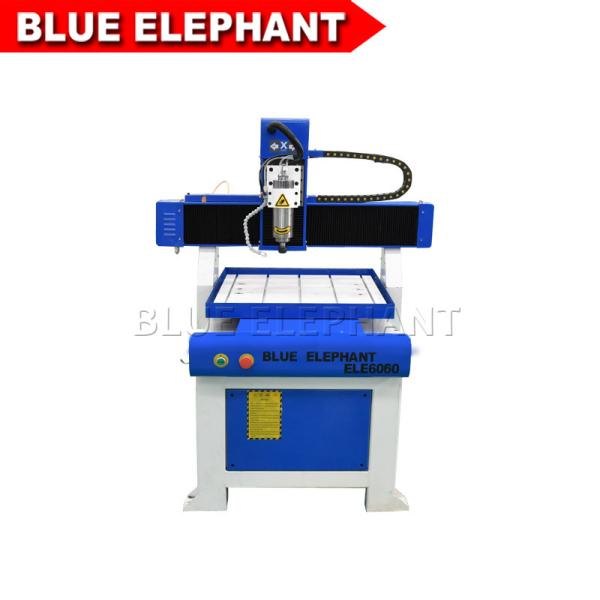

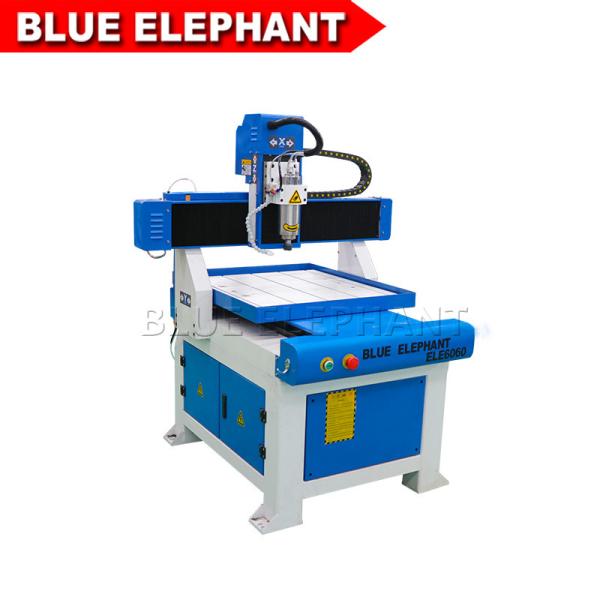

ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood
ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood
ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood
ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood
ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood
ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELECNC- 6060 Mini Advertising CNC Router
Certification :
CE, ISO9001, SGS, CIQ
Place of Origin :
Jinan City, Shandong Province, China
Price :
US $3,800 - 4,999 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10-20 working days
Packaging Details :
Standard marine export plywood case
Working area :
600*600*130mm
Control system :
DSP A11 control system
Spindle :
2.2kw Changsheng water cooling spindle
Spindle speed :
0-24000rpm/min
Motor :
450A stepper motor
Driver :
Leadshine M542 driver
Working speed :
12m/min
Inverter :
2.2kw Fuling Inverter
Table surface :
T-slot working table, table moving
Description

ELECNC- 6060 Mini Advertising CNC Router with Moving Table

for Carving Plywood

ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood

Features:

  • Delivery:Light Frame and easy to pack and ship
  • DSP A11 Control system:Easy operating system with handle
  • Table moving:much more precise than gantry moving, much better finished wooden figures by table moving
  • Water mist cooling sprayer with water tank: very suitable for processing soft metal, like aluminum, copper, etc.

Parameters:

Descriptions Parameters
1. Model ELECNC-6060
2. Working area 600*600*130mm
3. Control system DSP A11 control system
4. Spindle 2.2kw Changsheng water cooling spindle
5. Spindle speed 0-24000rpm/min
6. Motor 450A stepper motor
7. Driver Leadshine M542 driver
8. Working speed 12m/min
9. Inverter 2.2kw Fuling Inverter
10. Table surface T-slot working table, table moving
11. Linear rail TBI ball screw and ABBA 20# linear square guide
12. Control box Inner box
13. Rotary device optional
14. Mist cooling sprayer Water mist cooling sprayer with water tank
15. Tool sensor calibration Simple tool sensor calibration
17. Working voltage 220V, 1phase, 50Hz

Detail Images:

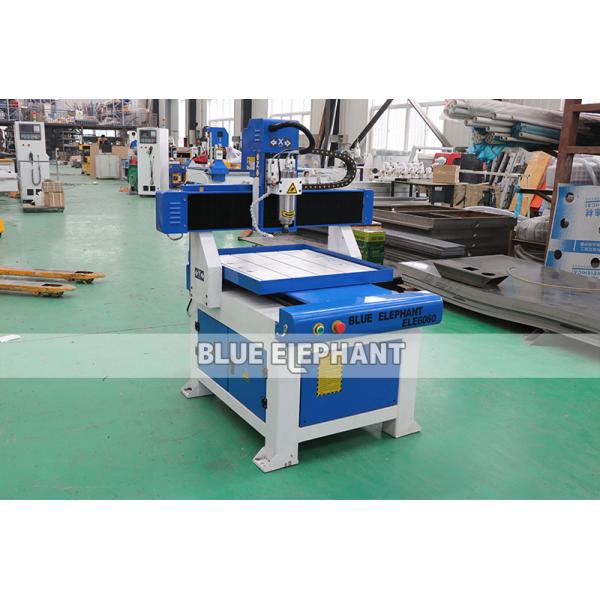

ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood

ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood

ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood

ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood

ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood

Packaging & Delivery

  1. Outside package:Standard marine export plywood case.
  2. inner package:Stretch film and plastic film for humidity.
  3. We can package according to your requests.
  4. Delivery Detail: Shipped in 15 working days after payment.

ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood

Our Factory

  • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
  • We have our R & D department, Quality control department, and after sale & service department.
  • Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
  • We had got CE and ISO9001 certification always offer best quality machine.

ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood

ELECNC- 6060 Mini Advertising CNC Router with Moving Table for Carving Plywood
