1122 Removable Rotary Device 4 Axis Electric Wood Cnc Cutter Machine Woodworking Equipment in Good Price for Wooden Craf
1122 Removable Rotary Device 4 Axis Electric Wood Cnc Cutter Machine Woodworking Equipment in Good Price for Wooden Craf
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1122-4
Certification :
CE ISO9001 SGS BV TUV ISO9000
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1Sets
Price :
US $8,010-9,100 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
15-30 working days after payment
Packaging Details :
Standard marine export plywood case
Voltage :
220V, 1PH, 60HZ (380V for Optional)
Power(W) :
7.5KW
Weight :
900KGS
Warranty :
12 Months
Working Area :
1100*2200*350mm
Control System :
DSP A18 Control System for 4 Axis
Spindle :
3.5kw HQD Air Cooling Spindle
Spindle Speed :
0-18000RPM
Description

1122 Removable Rotary Device 4 Axis Electric Wood Cnc Cutter Machine Woodworking Equipment in Good Price for Wooden Crafts

1122 Removable Rotary Device 4 Axis Electric Wood Cnc Cutter Machine Woodworking Equipment in Good Price for Wooden Craf

Features of wood cnc router prices:

  • Working Size: 1100x2200x350mm;
  • Heavy Duty 6mm Steel machine bed; Moving Steel Gantry;
  • Vacuum Table + Aluminum T slot working table;
  • Helical rack and pinions for axis;Z axis by Taiwan TBI ball screw;
  • Taiwan PMI 20mm square guide rails for 3 axis;
  • Chinese 3.5kw air cooling spindle;
  • China 3.7kw FULING Inverter;
  • LEADSHINE 750W Servo motor and Driver;
  • Tool sensor system;
  • 4 Axis DSP A18 control system with usb port;
  • Rotary Axis: Diameter: 200mm; Length:1200mm;
  • Working Voltage: 220V/1Phase, 60HZ.
  • Manual Oil lubrication system.
  • 2 Sets 2.2kw air cooling vacuum pump;

Product Details of wood cnc router prices:

1122 Removable Rotary Device 4 Axis Electric Wood Cnc Cutter Machine Woodworking Equipment in Good Price for Wooden Craf

Parameters of wood cnc router prices:

Descriptions Parameters
Model ELE1122-4
Working area 1100*2200*350mm
Control system DSP A18 control system for 4 axis
Control box Inner box with French Schneider rotary handle
Spindle 3.5kw HQD air cooled spindle
Spindle speed 0-18000RPM
Motor 5 sets 750W Leadshine Hybrid Servo Motors
Driver 5 sets Leadshine Hybrid Servo Drivers
Inverter 3.7kw Fuling Inverter
Table surface T-slot and vacuum working table with 4 zones
Structure New type thicker and bigger heavy duty welded frame and gantry

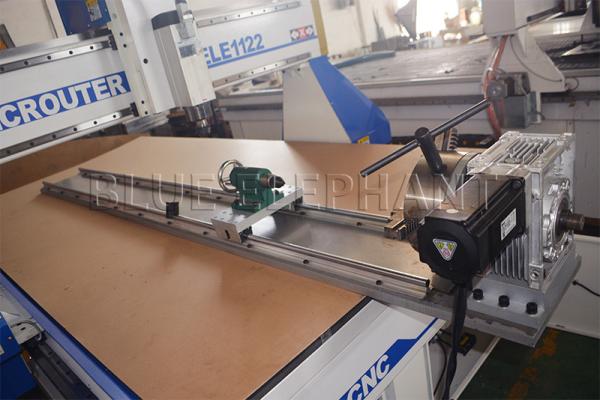

Rotary device 200mm diameter and 1200mm length for rotary device
Voltage 220V, 1Ph, 60Hz (380V for optional)
Lubrication system Automatic lubrication system
Transmission

X,Y rack and pinion drive; Z Taiwan TBI ball screw

Sweden ABBA linear square rail 20# for X,Y,Z axis
Vacuum pump 2 sets separate 2.2kw air cooled vacuum pump (220V, 1Ph, 60Hz)
Software ARTCAM

PS:All the working area and specifications can be customized according to your requests.

Applications:

MDF, PLYWOOD, PLASTIC, WOOD, ALUMINUM AND COPPER CUTTING AND EBGRAVING. Suitable with Advertisment Sign and furniture making.

Samples:

1122 Removable Rotary Device 4 Axis Electric Wood Cnc Cutter Machine Woodworking Equipment in Good Price for Wooden Craf

Packaging & Delivery:

1.Outside Package: Standard export wooden case .

2.Inner package: strech film .

For shipping, you can choose the sea shipping,air shipping or the transmission of expressage: DHL/TNT/Fedex.

For terms of payment, you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.

Guarantee and After-sale service:

12 months for the whole machine .

1, Technical support by phone , email or MSN/Skype around the clock

2, Friendly English version manual and operation video CD disk

3, Engineer available to service machinery overseas

Welcome to our factory:

1122 Removable Rotary Device 4 Axis Electric Wood Cnc Cutter Machine Woodworking Equipment in Good Price for Wooden Craf

  • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
  • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
  • Just looking forward to service every customer, like you.

Contact us:

Skype: elephantcnc

WhatsApp/Mobile: 0086-15064026772

Web: www.elephant-cnc.com
