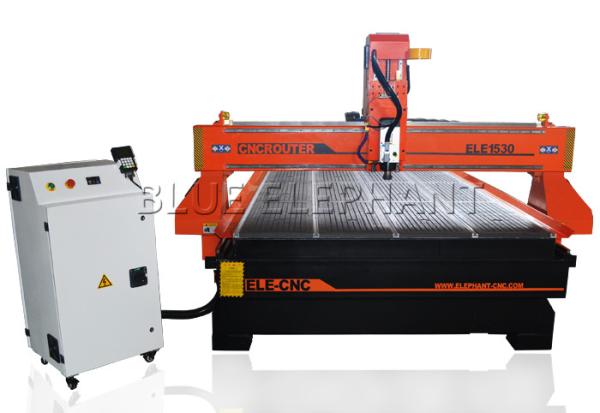

ELE 1530 cnc router automatic , 3d engraving machinery , cnc cutters on wood chair door cabinets desk mdf pvc
ELE 1530 cnc router automatic , 3d engraving machinery , cnc cutters on wood chair door cabinets desk mdf pvc
Specifications
Brand Name :
Blue Elephant
Model Number :
ELE1325
Place of Origin :
Jinan City
MOQ :
1
Price :
6000
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
200sets/month
Delivery Time :
15days
Voltage :
220V/380V
Description

ELE 1530 cnc router automatic , 3d engraving machinery , cnc cutters on wood chair door cabinets desk mdf pvc

ELE 1530 cnc router automatic , 3d engraving machinery , cnc cutters on wood chair door cabinets desk mdf pvc

Features of 1530 cnc router:

  • 1500x3000x200 working area
  • 4.5Kw Italy HSD air cooling spindle ,24000rpm
  • 5.5 KW Taiwan DELTA inverter
  • DSP control system
  • YASKAWA 850w servo motor and 1KW servo driver
  • Imported Taiwan HIWIN 25# Square Linear Guide
  • Z axis Original Taiwan TBI ball screw Transmission
  • Automatic oil mist cooling sprayer system
  • 5.5KW Air type vacuum pump
  • Vacuum and T-slot table
  • Separated control cabinet with two sides open
  • Manual Oil Lubrication system
  • Japan Ormon Limit Switch,
  • France Schneider safety switch
  • 21 different size cutter free
  • Import milling cutter for aluminum 3mm 10pcs ,6mm 10pcs
  • Voltage 220V 3phase 60HZ
  • Plywood case Package
  • Type3/Artcam software

Product Details of 1530 cnc router:

ELE 1530 cnc router automatic , 3d engraving machinery , cnc cutters on wood chair door cabinets desk mdf pvc

Technical Parameters of 1530 cnc router:

Description Parameter
X,Y,Z Working Area 1500x3000x200mm
X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
X,Y,Z Repositioning Accuracy ±0.03mm
Table Surface Vacuum & T-slot Table
Frame Welded structure steel tube frame
X, Y Structure 20#Taiwan HIWIN Linear guide and helical rack
Z Structure Ball screw and#20 Taiwan HIWIN Linear guide
Vacuum pump 5.5KW Air type vacuum pump
Max. Rapid Travel Rate 45000mm/min
Max. Working Speed 30000mm/min
Spindle Power 4.5KW Italy HSD air cooling spindle
Spindle Speed 0-18000RPM
Drive Motors Japan YASKAWA servo motor and driver
Inverter 5.5 kw Taiwan Delta Inverter
Command Language G Code
Control System DSP
Computer Interface USB
Flash Memory 512M(U Disk)
Collet ER30
X,Y Resolution <0.01mm
Software Compatibility Type3 Software, (Option: Artcam Software)
Running Environment Temperature 0 - 45 Centigrade
Relative Humidity 30% - 75%

PS:All the working area and specifications can be customized according to your requests.

Applications:

Furniture:ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.

Well suited for processing panel.insulating materials,plastic,expoxy resin.carbon mixed compound,etc.

Our Factory

ELE 1530 cnc router automatic , 3d engraving machinery , cnc cutters on wood chair door cabinets desk mdf pvc

  • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
  • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
  • Just looking forward to service every customer, like you.

Contact us:

Skype: elephantcnc

WhatsApp/Mobile: 0086-15064026772

Web: www.elephant-cnc.com
