Portable 6090 Mini Advertising Engraving Machine , Desktop Cnc Cutting Machine
Portable 6090 Mini Advertising Engraving Machine , Desktop Cnc Cutting Machine
Portable 6090 Mini Advertising Engraving Machine , Desktop Cnc Cutting Machine
Portable 6090 Mini Advertising Engraving Machine , Desktop Cnc Cutting Machine
Portable 6090 Mini Advertising Engraving Machine , Desktop Cnc Cutting Machine
Portable 6090 Mini Advertising Engraving Machine , Desktop Cnc Cutting Machine
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE6090
Certification :
CE, ISO, SGS, BV, TUV
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $2,900 - 3,600 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
5-10 working days
Packaging Details :
Standard marine export plywood case
Voltage :
220V, 1phase, 50-60HZ
Dimension(L*W*H) :
1300*1100*1000mm
Control system :
DSP A11 control system
Spindle :
1.5kw Changsheng water cooling spindle
Motor & Driver :
Leadshine mix servo motor & driver
Inverter :
1.5kw Taiwan Delta Inverter
Description

Portable 6090 mini advertising small cnc machine , desktop cnc cutting machine for sale


Advantages of mini cnc:

  • Chinese servo system, it's more precision and powerful ,never lose the step.
  • DSP A11 with USB interface, it's offline operate ,easy to operate.

Features of mini cnc:

  • Effective working area 600*900*160 mm
  • 1.5KW cooling spindle, 24000 rpm
  • 1.5KW Taiwan DELTA inverter
  • Leadshine servo motors and drivers
  • DSP A11 control system
  • HIWIN #20 linear square guide
  • Taiwan TBI ball screw for Z axis
  • Auto tool sensor Calibration
  • precision Resolution is 0.0125m
  • T-slot table
  • Water mist cooling sprayer
  • Wood packing

Parameters of mini cnc:

Descriptions Parameters
Modle ELE6090
Working area 600*900*160mm
Control system DSP A11 control system
Spindle 1.5kw Changsheng water cooling spindle
Spindle speed 0-24000rpm/min
Motor & Driver Leadshine mix servo motor & driver
Traveling speed 7000mm/min
Working speed 7000mm/min
Inverter 1.5kw Taiwan Delta Inverter
Table surface T-slot working table with PVC protection
Linear rail Taiwan HIWIN linear guide 20#
Control box Inner box
Tool sensor calibration Automatic tool sensor calibration
Gantry structure Gantry moving
Mist cooling sprayer Simple mist cooling sprayer
Working voltage 220V, 1phase, 50-60HZ

PS:All the working area and specifications can be customized according to your requests.
​
Applications of cnc wood routers:

It's used for wood, acylic , MDF and aluminum etc engraving and cutting .

Our Service:

12 months for the whole machine .

1. Technical support by phone , email or WhatsApp/Skype around the clock

2. Friendly English version manual and operation video CD disk

3. Engineer available to service machinery overseas

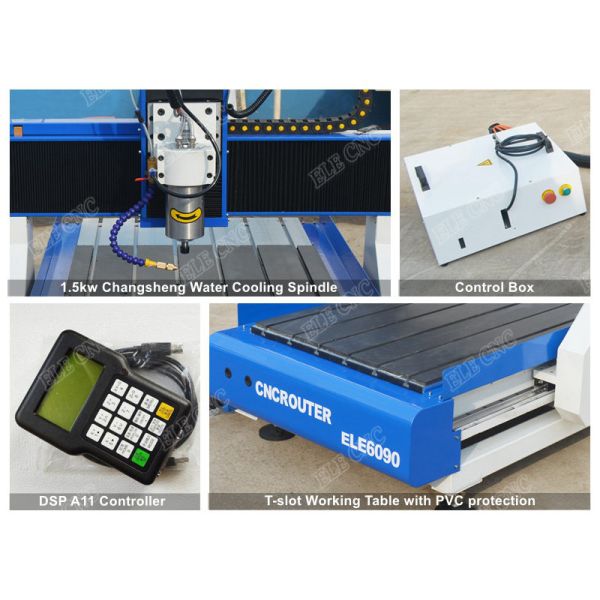

Main Parts:
Portable 6090 Mini Advertising Engraving Machine , Desktop Cnc Cutting Machine
