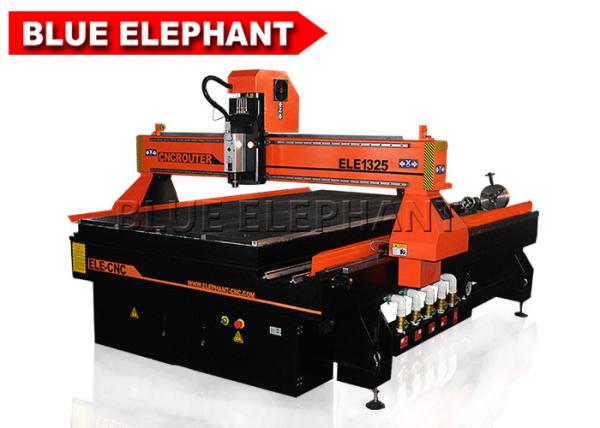

FL118 Stepper Motor 4 Axis CNC Router Machine Cnc 1325 Wood Cutting Machine
FL118 Stepper Motor 4 Axis CNC Router Machine Cnc 1325 Wood Cutting Machine
FL118 Stepper Motor 4 Axis CNC Router Machine Cnc 1325 Wood Cutting Machine
FL118 Stepper Motor 4 Axis CNC Router Machine Cnc 1325 Wood Cutting Machine
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE1325
Certification :
CE, ISO, SGS, BV, TUV
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $7,300 - 7,800 / Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10-20 working days
Packaging Details :
Standard marine export plywood case
Voltage :
220v, 1ph, 50Hz (380v for optional)
Working area :
1300*2500*200mm
Control system :
Mach3 control system for 4 axis
Spindle :
Italy HSD air cooling spindle
Motor :
FL118 stepper motor
Driver :
Yako2811 big driver
Inverter :
3.7kw Fuling Inverter
Rotary device :
200mm diameter rotary device
Description

1325 cnc router 4 axis , cnc 1325 wood cutting machine , wood stair cnc router machine

Advantages of cnc router 4 axis :​​

  • 10~12mm thinkness heavy duty frame. Promise the machine working stable and durable. Have a longer work life.
  • Original Italy HSD air cooling spindle.
  • High soft shielded copper wires to protect against the static electricity. More safe and have a longer work life.
  • All the manuals of the machine are in English.

Parameters of cnc wood routers:

Descriptions Parameters
Modle ELE1325-4
Working area 1300*2500*200mm
Control system Mach3 control system for 4 axis
Spindle 3kw Italy HSD ari cooling spindle
Spindle speed 0-18000RPM
Motor FL118 stepper motor
Driver Yako2811 driver
Inverter 3.7kw Fuling Inverter
Table surface T-slot and vacuum working table
Structure New type thicker and bigger heavy duty welded frame and gantry
Rotary device 200mm diameter rotary device
Voltage 220v, 1ph, 50Hz (380v for optional)
Lubrication system Manual lubrication system (automatic for optional)
Transmission

X,Y rack and pinion drive; Z Taiwan TBI ball screw

Taiwan HIWIN linear square rail 20# for X,Y,Z axis
Traveling speed 32m/min
Working speed 20m/min
Collet ER25

PS:All the working area and specifications can be customized according to your requests.

Features of 4*8 cnc router:

  • 1300*2500*200mm working size
  • 3Kw Italian HSD air-cooling spindle
  • 3.7kw FULING inverter
  • T slot &Vacuum table
  • Taiwan HIWIN Square Rail for X, Y, Z axis #20
  • Stepper motor FL118 YAKO2811 driver
  • Mach3 control system
  • 200mm diameter rotary device
  • Artcam 2012 software
  • 8mm Heavy duty Body construction
  • 21 pieces router bits

Applications of cnc wood routers:

The machine is with 200mm rotary. It can be working on both flat and cylinde.

Main Parts:

FL118 Stepper Motor 4 Axis CNC Router Machine Cnc 1325 Wood Cutting Machine
