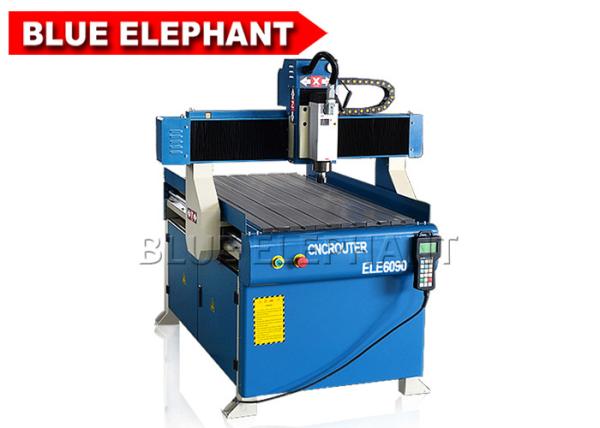

Portable Advertising CNC Woodworking Router Machine 6090 X Y Z 3 Axis with Ball Screw Transmission
Portable Advertising CNC Woodworking Router Machine 6090 X Y Z 3 Axis with Ball Screw Transmission
Portable Advertising CNC Woodworking Router Machine 6090 X Y Z 3 Axis with Ball Screw Transmission
Portable Advertising CNC Woodworking Router Machine 6090 X Y Z 3 Axis with Ball Screw Transmission
Specifications
Brand Name :
BLUE ELEPHANT
Model Number :
ELE6090
Certification :
CE, SGS, TUV, BV, ISO9000, ISO9001
Place of Origin :
Jinan City, Shandong Province, China
MOQ :
1 set
Price :
US $2,860 - 3,420 / Set
Payment Terms :
L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability :
200 Set/Sets per Month
Delivery Time :
10-15 working days
Packaging Details :
Standard marine export plywood case
Voltage :
220V, 1Phase, 60HZ
Control System :
NK105 Control System
Spindle :
3.5kw HQD Air Cooling Spindle
Motor :
450A Stepper Motors
Drivers :
Leadshine M542 Drivers
Inverter :
3.7Kw Fuling Inverter
Description

Portable Mini Small Advertising Cnc Woodworking Router Machine 6090 X Y Z 3 Axis with Ball Screw Transmission

Advantages of small machines for business:

  • China HQD air cooling spindle, similar to Italy HSD air cooling spindle, air-cooled, 0-18000rpm.
  • NK105 control system, don't need connect with computer, very easy to cooperate.
  • Portable, easy to transport and move, it's the best choice to do some small pieces.

Features of small machines for business:

  • It is very suitable for CNC hobby friends, small engraving shop and factories as well.
  • Popular NK105 control system is very easy for every buyer and beginner.
  • Taiwan Ball screw gives it good resolution and less noise. We use Taiwan TBI brand,more stable and precise.
  • Cast iron machine body,stable and strong in use.
  • We use Highly flexible towline; fire-resistant double-sheathed cable, Prevent electrostatic interference; also with cable carrier outside to protect the cable.
  • Optional part: With Rotary can process cylinder materials.

Applications of cnc router 6090:

  • Cnc router 6090 has a wide range of application, such as advertising field, seal field, packing field, pane making field, decorating field, art and craft field, architecture model field, souvenir field, badge field, electric circuitry field and carpentry field.
  • It is used to engrave on Acrylic sheet, abs double color sheet, PVC foam sheet, wooden sheet, scagliola, PCB, granite, stone, steel and soft metal etc.

Technical Parameters of small machines for business:

Descriptions Parameters
Modle ELE6090
Working area 600*900*160mm
Control system NK105 control system with handle
Spindle 3.5kw HQD air cooling spindle
Spindle speed 0-18000rpm/min
Motor 450A stepper motors
Driver Leadshine M542 drivers
Traveling speed 15m/min
Working speed 12m/min
Inverter 3.7kw Fuling Inverter
Table surface T-slot working table with PVC protection
Linear rail Round orbit
Control box Inner box
Tool sensor calibration Simple tool sensor calibration
Gantry structure Cast steel gantry
Working voltage 220V, 1phase, 60Hz

PS:All the working area and specifications can be customized according to your requests.

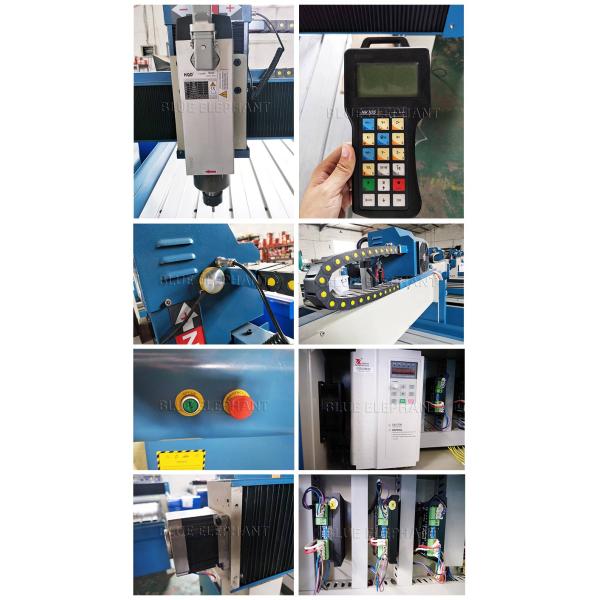

Product Details of small machines for business:
Portable Advertising CNC Woodworking Router Machine 6090 X Y Z 3 Axis with Ball Screw Transmission

Sample:

Portable Advertising CNC Woodworking Router Machine 6090 X Y Z 3 Axis with Ball Screw Transmission
