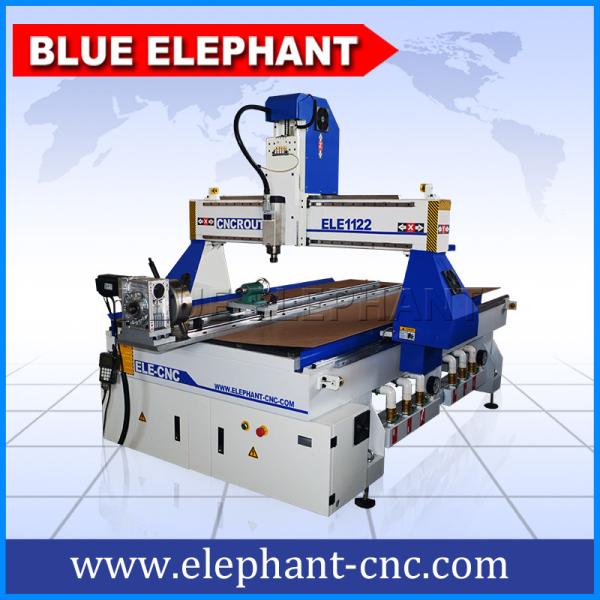

1122 CNC Wood Router Carving Machine Woodworking Equipment for Sale with Cheap Prices in sri lanka

• Working Size: 1100x2200x350mm;
• Heavy Duty 6mm Steel machine bed; Moving Steel Gantry;
• Vacuum Table + Aluminum T slot working table;
• Helical rack and pinions for axis;Z axis by Taiwan TBI ball screw;
• Taiwan PMI 20mm square guide rails for 3 axis;
• Chinese 3.5kw air cooling spindle;
• China 3.7kw FULING Inverter;
• LEADSHINE 750W Servo motor and Driver;
• Tool sensor system;
• 4 Axis DSP A18 control system with usb port;
• Rotary Axis: Diameter: 200mm; Length:1200mm;
• Working Voltage: 220V/1Phase, 60HZ.
• Manual Oil lubrication system.
• 2 Sets 2.2kw air cooling vacuum pump;

  Advantages of wood cnc router prices:

• Chinese top brand HQD 3.5KW Air cooling spindle, good quality with powerful cutting ability;
• LEADSHINE 750W Easy Servo Motor and driver, with fast speed and high precision;
• Rotary Device for Wood cylinder carving;
• Vacuum table can fix the materials automatically, improve work's efficent and save labor's cost.

• Parameters of wood cnc router prices:

  Descriptions	Parameters
  Model	ELE1122-4
  Working area	1100*2200*350mm
  Control system	DSP A18 control system for 4 axis
  Control box	Inner box with French Schneider rotary handle
  Spindle	3.5kw HQD air cooled spindle
  Spindle speed	0-18000RPM
  Motor	5 sets 750W Leadshine Hybrid Servo Motors
  Driver	5 sets Leadshine Hybrid Servo Drivers
  Inverter	3.7kw Fuling Inverter
  Table surface	T-slot and vacuum working table with 4 zones
  Structure	New type thicker and bigger heavy duty welded frame and gantry
  Rotary device	200mm diameter and 1200mm length for rotary device
  Voltage	220V, 1Ph, 60Hz (380V for optional)
  Lubrication system	Automatic lubrication system
  Transmission	X,Y rack and pinion drive; Z Taiwan TBI ball screw Sweden ABBA linear square rail 20# for X,Y,Z axis
  Vacuum pump	2 sets separate 2.2kw air cooled vacuum pump (220V, 1Ph, 60Hz)
  Software	ARTCAM

  PS:All the working area and specifications can be customized according to your requests.

  Applications:

  MDF, PLYWOOD, PLASTIC, WOOD, ALUMINUM AND COPPER CUTTING AND EBGRAVING. Suitable with Advertisment Sign and furniture making.
