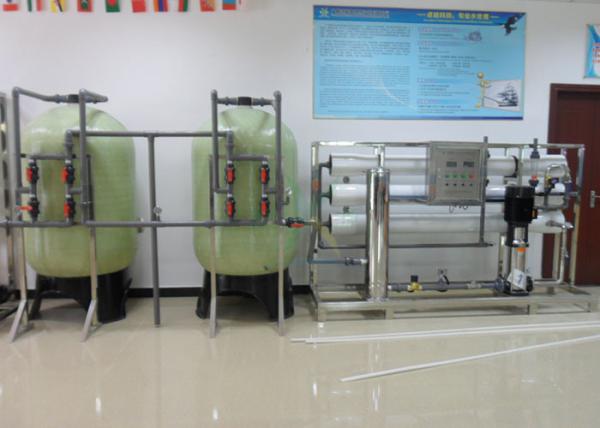

6TPH Water Purifiying System / 6000LPH Water Filter System / RO Water Treatment

with FRP Housing For Pure Industrial

3. Wroking Process

This system is designed as regards to customer raw water test report and application.

Pumps:

CHUNKE is using CNP/Grundfos/Danfoss pump for high pressure pumps and raw water pump. We are using SEKO

pump for chemical dosing. As regards to customer budget, customer can choose one brand from them.

Sand Filter Tank:

We are giving three option to you for sand filter tank; FRP, Stainless Steel S304 and Stainless Steel 316. For food

and pharmaceutical industry we suggest SS316, of course the raw water source is also is important to choose tank

material. To choose correct tank, we have to check every data of your application and then suggest to you most

appropriate solution.

CHUNKE has all kind of sand media at its stock. Commonly customers are using 1-2mm,2-4mm, 4-8mm,

8-16mm size Quartz Sand.

If you want to use FRP tank, the tank size is Ф900x 1850mm, our code for this tank is CK-3672. Flow rate is

10-15 m3/h and you can put 1050kg sand inside.

If you want to use Stainless Steel 304 or 316 tank the tank size is Ф350 x 1650mm, our code for this tank is

CK1-3672. Flow rate is 10-15 m3/h and you can put 1050kg sand inside.

Carbon Filter Tank:

Carbon filter is same with sand filter,tank material will be decided by you and our engineering team as FRP

orstainless Steel 304or 316.

If you want to use FRP tank, the tank size is Ф900 x 1850mm, our code for this tank is CK-3672. Flow rate is

10-15 m3/h and you can put 350kg activated carbon inside.

If you want to use Stainless Steel 304 or 316 tank the tank size is Ф900x 1850mm, our code for this tank is

CK1-3672. Flow rate is 10-15 m3/h and you can put 350kg activated carbon inside.

Water Softener (Resin) Tank:

If you raw water has hardness, you can choose CHUNKE water softener tank in your system, size is same with

sand and carbon filter. You can choose material as FRP or Stainless Steel. You can put 700L resin in CK-3672

type FRP tank.

Cartridge Filter Housing & Cartridge:

All our Reverse Osmosis Water Treatment Machine has cartridge filter housing before membrane, membranes

are most important and expensive parts of system. Therefore we have to protect them, cartridge filter housing

material is SS304 or SS316. We mostly using 5micron or 1 micron PP cartridge. For 6000LPH 40" 7 pieces

cartridges are enough.

Our Stainless Steel Cartridge Housing code is CK40-7core×40", its diameter is 230mm, it has 7 core (you can

put 5 cartridges), cartridge height is 40" and all universal cartridge is suitable to use in our housing.

We suggest you to change cartridges in every month.

Membrane Housing:

At CHUNKE we are using stainless steel or FRP (ceramic) type membrane housing. It is depend on design and

application.

For 6000LPH machine, we have to use 8040 type membrane so as regards to membrane size , we offer you two type

membrane housing as FRP and Stainless Steel (304 or 316).

Membrane:

The most important part of RO Water Treatment Machine is membrane, in market there are a lot of membrane

available.

As regards to customer application and budget, our team offer from Vontron/GE/DOW/TORAY brands. Our

company do not use no name membranes or low quality membranes.

For 6000LPH , you can choose one brand from below;type of the membrane is 8040
