50T/H Ultrapure Water System / Purifier System With CNP High Pressure Pump
50T/H Ultrapure Water System / Purifier System With CNP High Pressure Pump
50T/H Ultrapure Water System / Purifier System With CNP High Pressure Pump
50T/H Ultrapure Water System / Purifier System With CNP High Pressure Pump
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-50TPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
>= 1sets
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
RO Membrane :
USA DOW
Production Capacity :
50T/H
Recovery Rate :
more than 75%
Electrical Power :
220V 3Phase / 380V
Tank Material :
Fiberglass / Stainless steel / Carbon Steel
Application :
Pure / Drinking / Industrial Water
High pressure Pump :
CNP Nanfang
Desalination Rate :
>=97%
Description

50T/H RO Machine Plant Water Treatment System RO Water Purifier System With CNP Nanfang High Pressure Pump

1.Product Description

Reverse Osmosis(RO) water system is an equipment to purify water with the action of pressure difference of semi permeable membrane. RO membranes can effectively remove majority of organics, harmful substances, bacteria, particulates etc. RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production, power stations, electronic industries, medicine manufactories, and medical treatment.


2.Product Details

KYRO-50TPH Two Stage Ultrapure RO water System

RO-50T/H
capacity of pure water: 5000Iph(50T/H)
general power:58KW
RO membranes: 8040 50 items
Beforehand filter: 2 items
PP sediment membranes filter tube: 1 item
Quartz sand filter:9000kg
Active carbon filter:2750kg

3. Benefits

RO system requires very less energy for its working.
It requires very low maintenance.
The RO system uses an automated technique called cross-flow to clean its clogged membrane.
RO system, when used in water filters, eliminates 98% of the impurities from tap water.
RO systems are cost-effective, and their price is continually decreasing.
RO systems do not make use of harmful chemicals, hence are used in many power plants.
The water produced by RO technology, when supplied to a gas turbine, improves operating efficiency, and increases output by more than 10%.


4. Application


1. Preparation of beverage industry, drinking pure water, natural water, mineral water, distilled water, mineral water;
2. Pure water for food factory, pure water for milk, pure water for fruit juice, pure water for food additives;
3. Pure water for preparation of blending wine produced, pure water for beer saccharification cast materials and pure water for draft beer filtration;
4. Hotels, buildings, communities, high-quality direct drinking water;

5. Optional Components

A. Regulating wheels
B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank

5. Process
Raw water tank - raw water pump - quartz filter - active carbon filter - security filter - 1st high pressure pump - 1st reverse osmosis filters - 2nd high pressure pump - 2nd reverse osmosis filters - pure water tank - UV lamp -outlet water point
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter
2. Sand filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
5. High pressure pump-- Provide the high pressure to RO membrane
6. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
50T/H Ultrapure Water System / Purifier System With CNP High Pressure Pump

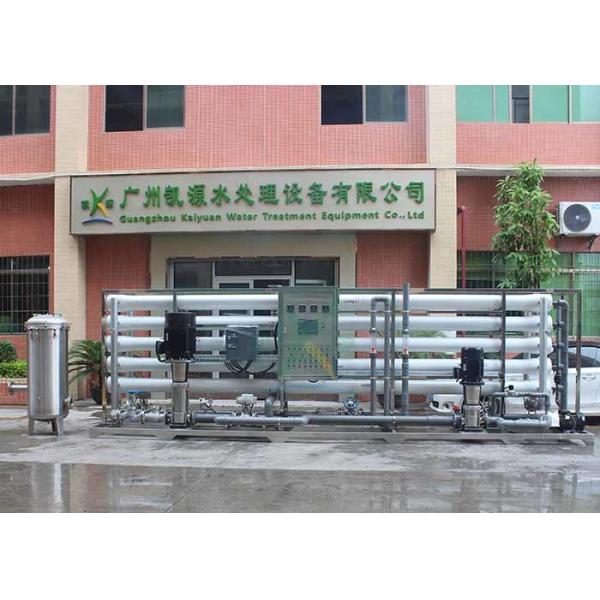

6. Photo Show
50T/H Ultrapure Water System / Purifier System With CNP High Pressure Pump
50T/H Ultrapure Water System / Purifier System With CNP High Pressure Pump
50T/H Ultrapure Water System / Purifier System With CNP High Pressure Pump

Welcome to visit our factory
Any inquiry please feel free to contact me directly.^^
