Application :

1. Dairy, fruit juice, vegetable juice and other clear, concentrated.

2. Animals and plants (aloe vera, mangosteen, tea, etc.) effective ingredients extraction.

3. Soybean protein, oligosaccharides, isoflavones and other extraction, concentration.

4. Antibiotics, amino acids, VC and other fermentation broth purification, concentration.

5. Chinese medicine (Bupleurum, Salvia, Scutellaria, etc.) injection of active ingredients purification, separation.

6. Polysaccharides (Ganoderma lucidum, Grifola frondosa, mushrooms, etc.) material purification, concentration.

7. Fluorescent whitening agent desalination, concentration.

8. Electrophore paint recovery and water reuse.

9. PVA of textile desizing wastewater reuse.

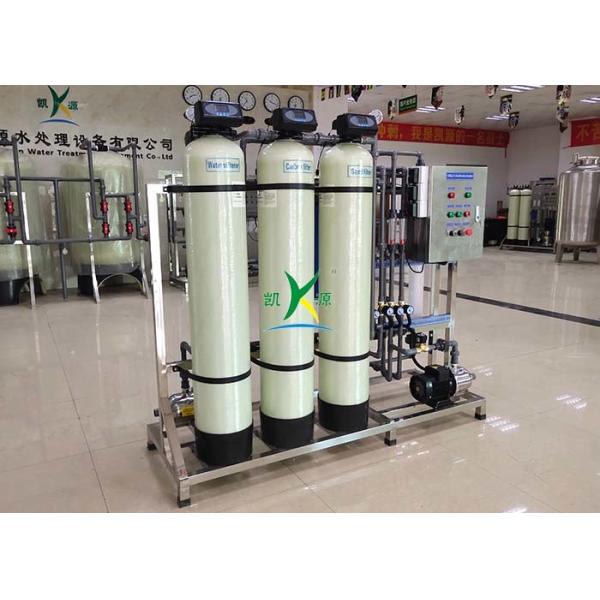

Working process of UF Purification System:

Raw water→ Raw water tanks(buyer supply) →Raw water pumps →Disc filter→ Activated carbon filter →5μm security filter→Ultrafiltration device → Pure water tank(buyer supply) →Water supply point

1.Using the Pretreatment, Micro filter, UF, Ozone Generator for sterilization to produce the qualified natural mineral water.

2.The pretreatment device installs with multimedia filter, which is filled with refining Quartz Sand, to remove the large particles, silt particles ,suspended solids ,other impurities.

3.And the activated carbon filter can effectively remove the organic substance, odor, color, colloidal impurities .

4. 5μ security filter, can block the particle more than 5 micron-meter passing into next process.

5.UV Sterilizer can kill the bacteria, virus,effectively.

6. 1μ security filter, mainly used to get rid of the smaller particles and remains of bacteria,virus.

7.Ultra filtration is a separation process, with pore sizes in the range of 0.1 to 0.001 micron. Typically, ultra filtration will remove high molecular weight substances, colloidal materials, and organic and inorganic polymeric molecules. Low molecular weight organics and ions such as sodium, calcium, magnesium chloride, and sulfate can not be removed, so, it can make the finished water with no bacteria, clear and good tasty.

8.At terminal, there is a Ozone generator for sterilization, keep water clean avoiding secondary pollution, ensuring high-quality finished water sterile and longer shelf-life.

Direction for electric control system:

1---PLC(Programmable Logic Controller):Design the program as requirements you need.

2---Air switch:protect the electric system

3---Auto controller which RO membrane can flush automatically.
