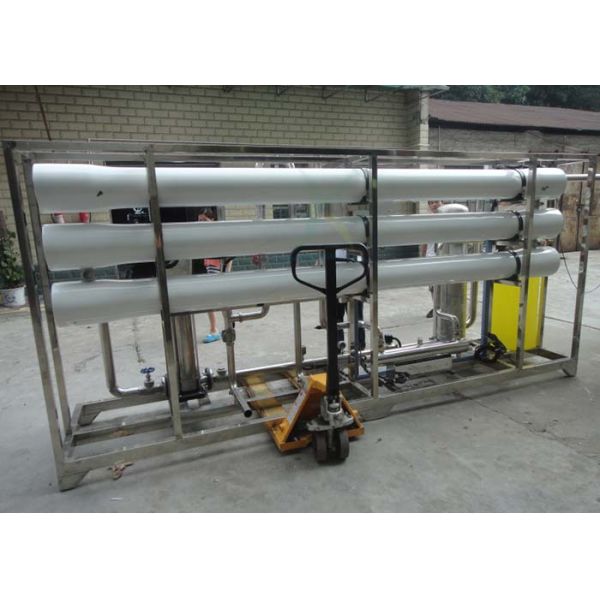

Stainless Steel 10 Ton / H Brackish Water RO System
Stainless Steel 10 Ton / H Brackish Water RO System
Stainless Steel 10 Ton / H Brackish Water RO System
Stainless Steel 10 Ton / H Brackish Water RO System
Stainless Steel 10 Ton / H Brackish Water RO System
Stainless Steel 10 Ton / H Brackish Water RO System
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-10TPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
>= 1sets
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>100sets/month
Delivery Time :
20-25working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Name :
Brackish Water RO System
Production Capacity :
10TPH
Recovery Rate :
50% - 75%
Electrical Power :
220V / 380V or others
Membrane Housing :
Stainless Steel
Control Valve :
Automatic/ Manual
Pipe fitting :
SUS304/ U-PVC
RO Rack Size :
4000*900*1800MM
Application :
Industrial Water / Mineral Water
Description

Stainless Steel 10 Ton / H Brackish Water RO System

1. Brackish Water RO System Description

(1) pressure is the main force in RO separation process, which does not go through the phase transition of energy intensive exchange and has low energy consumption; (2) RO does not need a lot of precipitants and adsorbents, and its operating cost is low; (3) RO separation engineering is simple in design and operation and short in construction period; (4) RO purification efficiency is high and environmentally friendly. Therefore, RO technology has been widely used in domestic and industrial water treatment, such as desalination of seawater and brackish water, production of medical and industrial water, preparation of pure and ultra-pure water, industrial wastewater treatment, food processing concentration, gas separation, etc.

2. Brackish Water RO System Parameter

Item Name

Stainless Steel 10 Ton / H Brackish Water RO System

Capacity

10T (Customized from 500L/H to 200T/H)

Desalting rate

More Than 97%

Pipe material

High quality U-PVC (Stainless steel for option)

Frame material

304stainless steel (carbon steel,316stainless steel for option)

Pre-treatment vessel material

FRP vessel ( stainless steel or carbon steel for option)

3. Brackish Water RO System Application

Electronic industry water: integrated circuit, silicon wafer, display tube and other electronic components.

Pharmaceutical industry water: large infusion, injection, tablets, biochemical products, equipment cleaning etc.

Chemical industry process water: chemical circulating water, chemical products manufacturing, etc.

Food industry water: purified drinking water, beverage, beer, alcohol, health products, etc.

Brackish Water RO System Process

Raw water----booster pump---quartz sand filter---activated carbon filter---water softener (optional)---security filter----high pressure pump---RO system---UV system (Ozone generator)---pure water tank

Stainless Steel 10 Ton / H Brackish Water RO System

Stainless Steel 10 Ton / H Brackish Water RO System

Any interests & any questions just feel free to buzz me anytime^-^
