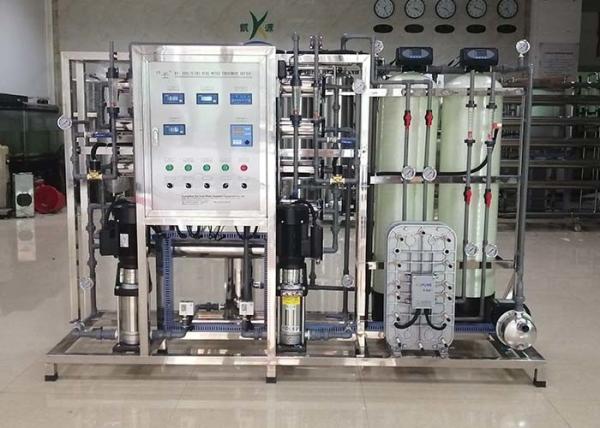

EDI Electric Desalination 500 LPH Ultrapure Water System For Hemodialysis
EDI Electric Desalination 500 LPH Ultrapure Water System For Hemodialysis
EDI Electric Desalination 500 LPH Ultrapure Water System For Hemodialysis
EDI Electric Desalination 500 LPH Ultrapure Water System For Hemodialysis
EDI Electric Desalination 500 LPH Ultrapure Water System For Hemodialysis
EDI Electric Desalination 500 LPH Ultrapure Water System For Hemodialysis
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-500LPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
>= 1sets
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days (depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Name :
EDI Electric Desalination For Hemodialysis
Application :
Hemodialysis /Cosmetic /Semiconductor /Painting
Production Capacity :
500LPH
Recovery Rate :
50%-75%
Desalination Rate :
>=97%
Pipe fitting :
SUS304/ U-PVC
Pretreatment Valve :
Automatic control valve
Electrical Power :
110V/220/380V 50/60Hz
Function :
Water Purifier / Water Treatment
Tank Material :
FRP/ Stainless steel/ Carbon Steel
Description

Double Stage Ro System and EDI Electric Desalination 500LPH For Hemodialysis

Advantages of EDI Technology

1.Best stability of water quality

2.Constantly produce ultrapure water as per user requirements

3.Modular production, can achieve automatic control

4.No need acid and alkali regeneration, no pollution emissions

5.No need stop because of regeneration

6.No need regeneration equipment and chemical storage

7.Compact equipment, small size

8.Low operation and maintenance cost

9.Simple operation and low labor strength

EDI system

EDI, also known as electric desalination. It is a new ultra pure water technology which gradually developed in the 20th century. EDI equipment combined electro dialysis technology and ion exchange technology. It is using the selectivity penetrate function of anion and cation membrane and exchange function of ion exchange resin, under direct current electric field to make ion directed migration. Finally to make deep desalination of water. In the same time, hydrogen ion and hydroxide ion which produced when water ionize will regenerate ion exchange resin. So if use EDI equipment, no need acid and alkali chemical to do any regeneration, and it can produce ultra pure water continuously.

Application

a. Medical production,industrial pharmacy use
b. Cosmetics, Hemodialysis
c. Recycling water system
d. Chemical, electroplate industrial etc
e. Microelectronic, power, and biological project
f. Chemical Lab,semiconductor
g. Other electronic standard water
Process
Raw water tank(user supply) → raw water pump → sand filter → carbon filter → softener filter → security(micro) filter → high pressure pump 1st → reverse osmosis system 1st →high pressure pump-2nd reverse osmosis system 2nd→UV lamp→EDI system→ pure water tank(user supply) - outlet
Main parts function

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter/softener.
2. Multi-medium filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active Carbon filter--Remove the color, smell, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane.
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

EDI Electric Desalination 500 LPH Ultrapure Water System For Hemodialysis

Electric control box

EDI Electric Desalination 500 LPH Ultrapure Water System For Hemodialysis

Thank you so much for your value time.Any questions please click "contact now" send us inquiry !
We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
