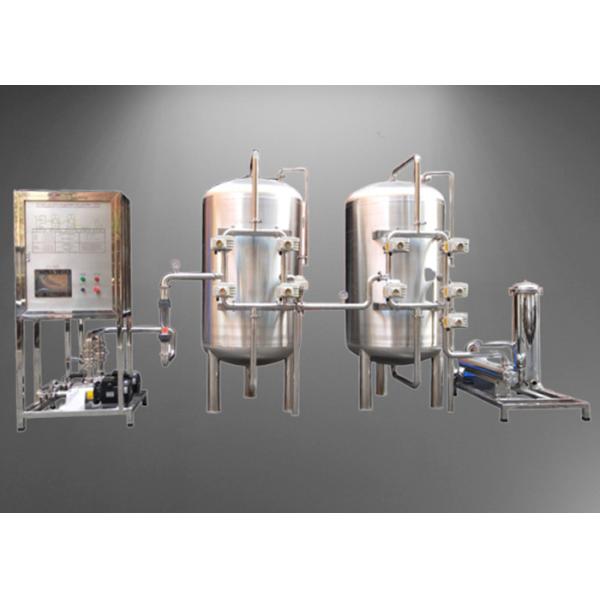

SUS - 304 Well Water Desalination Machine RO Water Treatment Plant Purification System
SUS - 304 Well Water Desalination Machine RO Water Treatment Plant Purification System
SUS - 304 Well Water Desalination Machine RO Water Treatment Plant Purification System
SUS - 304 Well Water Desalination Machine RO Water Treatment Plant Purification System
SUS - 304 Well Water Desalination Machine RO Water Treatment Plant Purification System
SUS - 304 Well Water Desalination Machine RO Water Treatment Plant Purification System
SUS - 304 Well Water Desalination Machine RO Water Treatment Plant Purification System
SUS - 304 Well Water Desalination Machine RO Water Treatment Plant Purification System
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-10TPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Name :
Ro Water Purifier Machine
Production Capacity :
10 ton per hour
Recovery Rate :
50% - 75%
Application :
Filtration
Tank Material :
FRP/ Stainless Steel/ Carbon Steel
Other Name :
Drinking Water Treatment Systems
Pipe fitting :
SUS304/ U-PVC
Warranty :
1 Year
Description

SUS - 304 Well Water Desalination Machine RO Water Treatment Plant Purification System

Ro Water Purifier MachineDescription


1. Product description of CE approved 10TPH commercial water filters
automatic water filter uses semi permeable spiral wound membranes to separate and remove dissolved solids,
organic, pyrogens,sub micron colloidal matter and bacteria from water. Water permeates the minute pores of
the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream
and flushed to drain. Reverse osmosis is capable of removing 9799% of total dissolved solids (TDS), 99% of
organic, including pyrogens, and 99% of all bacteria in the feed water .

2. Technological process of water purifier machine/ commercial water filters
raw water+ raw water tank+ raw water pump+ sand filter+ carbon filter+softener (optional)+ security filter+ high pressure pump+
reverse osmosis system+ pure water tank+ UV sterilizer (ozone generator) +precision filter + water supply points

Ro Water Purifier Machine Details

Capacity

10TPH

Water recovery

more than 50%

Function

Producing Fresh Water

Type

Pure Water Treatment System

Application

Filtration

Material

FRP+PVC/stainless teel

Usage

Pure Water Process

Voltage

110V / 220V / 380V

Desalting rate

more than 97%

Membrane

USA Filmtec DOW

Ro Water Purifier Machine Processing

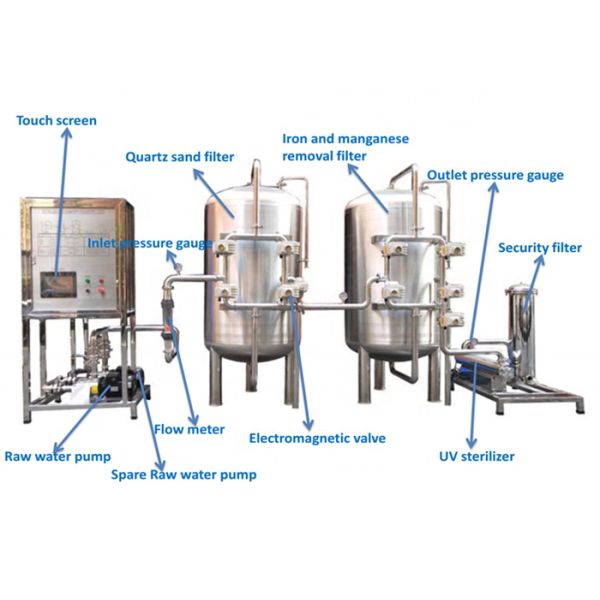

Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point

1. Raw Water Pump-- provide the pressure to quartz sand filter/active carbon filter;

2. Quartz Sand Filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.;

3. Active Carbon Filter--Remove the color, free chloride, organic matter, harmful matter, ect.;

4. Water Softener--exchange "ions" of calcium and magnesium with the most common and easiest method;

5. Micron PP Filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um;

6. High Pressure Pump-- Provide the high pressure to RO membrane;

7. RO System-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

8 . UV Sterilizer- Kill the bacteria

Ro Water Purifier Machine Application

1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding

Ro Water Purifier Machine Details

SUS - 304 Well Water Desalination Machine RO Water Treatment Plant Purification System

SUS - 304 Well Water Desalination Machine RO Water Treatment Plant Purification System

Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours.

Tel/whatsapp/wechat: +86-13711203110


Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
