Residential Drinking Water System / Reverse Osmosis Water Purification Equipment For Well Water
Residential Drinking Water System / Reverse Osmosis Water Purification Equipment For Well Water
Residential Drinking Water System / Reverse Osmosis Water Purification Equipment For Well Water
Residential Drinking Water System / Reverse Osmosis Water Purification Equipment For Well Water
Residential Drinking Water System / Reverse Osmosis Water Purification Equipment For Well Water
Residential Drinking Water System / Reverse Osmosis Water Purification Equipment For Well Water
Residential Drinking Water System / Reverse Osmosis Water Purification Equipment For Well Water
Residential Drinking Water System / Reverse Osmosis Water Purification Equipment For Well Water
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-3000LPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Name :
RO Water Treatment System
Production Capacity :
3000 litters per hour
Electrical Power :
220/380V 50/60Hz
Tank Material :
FRP
Pipe fitting :
SUS304/ U-PVC
Function :
Remove Dissolved Solids From Water
Feed Water TDS :
<2000mg/L
Desalination Rate :
>=97%
Description

Residential Drinking Water System Reverse Osmosis Water Purification Equipment For Well Water

RO Water Treatment System Description

Output water application: Human consumption drinking/washing water, agriculture irrigating/drinking water.

indusrtial drinking water, foodstuff(alkaline/mineral bottle water for selling...),

pharmaceutical(need to add 2 stage ro and EDI), chemical industry, electronic industry for terminal process.

We can design different kinds of water system for customers' different requirements of water.

Raw/feed/source water: Can be well/ground water, city/tap water, river/lake water,rains water...

Description of reverse osmosis system:

Our standard reverse osmosis/ro system is one of the the most popular type of water treatment plant in our company,among coastal country, such as African country,South American and Asian country to treat the salty water with high TDS.

The raw water through the pretreatment,it can remove the suspend solid,colloid,particle,impurities,turbidity,colloid, microbe, color,taste in water.

Then the wate through the ro system ,it can remove all the impurities such as ions,bacteria,dissolved salts...

The water coming out is pure drinking water, beverage water, medical industrial water, chemical industrial using water,boiler water for industry...

RO Water Treatment System Details
Pre-treatment:
Item Name Brand Function
Raw water pump CNP Provide prssure for filters
Quartz sand filter Kai Yuan Remove suspended particle and large impurity. In this system, we willl provide one set quartz sand to our customer for using 1.5/2 years.
Activated carbon filter KaiYuan

Adsorb smell,ordor,iron ions,color...

In this system, we willl provide one set quartz sand to our customer for using 1.5/2 years.
Anti-scalant system SEKO To add chemicals to remove some impurities and prolong thememebranes using/washing time(prevent membrane blocking)
Manual/Auto control valves Kai Yuan Flushing sand/carbon filter after some time
Security filter Kai Yuan Remove larger than 5 micro colloids in the water. In this system, we willl provide one set PP filter cartridges to our customer for using 1 month.
Ro main part

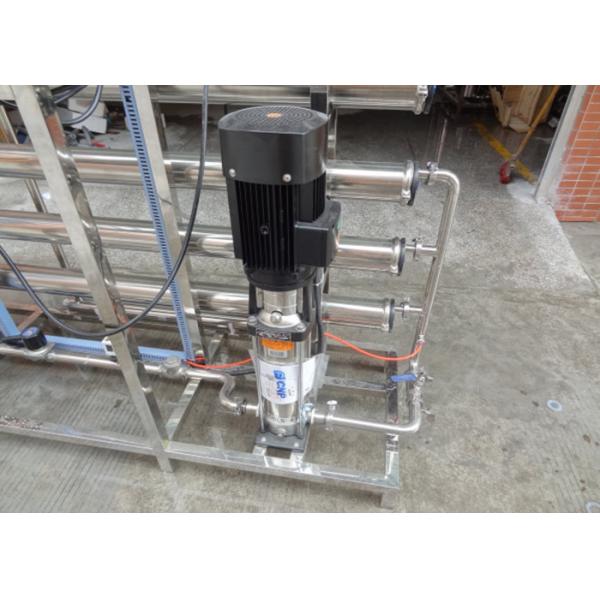

High pressure pump CNP Provide pressure for ro membrane
Ro membranes DOW,USA More than 97% desalination rate, can remove ions except H2O. In this system, we willl provide one set quartz sand to our customer for using 1.5 years.
CIP washing system Kai Yuan To washing the membranes when it is blocked after using for long time
Electronic system Kai Yuan PC controller or PLC controller
RO Water Treatment System Performance
⇒ Main part (membrane) of reverse osmosis system is imported from USA.
⇒ Auto stop when no water and full water.
⇒ Auto controller, RO membrane auto flush to protect membrane.
⇒ Auto start when pure water tank have no water.
⇒ Low pressure protection switch to protect high pressure pump when there is no raw water.
⇒ High efficient and low noise high pressure pump.
⇒ Product water conductivity meter to monitor product water quality all the time.
⇒ Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
⇒ Inlet water solenoid valve to stop water when machine is stop.
RO Water Treatment System Processing

(Water softener,dosing system,CIP washing system,ozone generator or UV can be added if you need it. It depends on the quality of raw water/ouput water using.

raw water→raw water tank→raw water pump→sand filter+ carbon filter→water softener→security filter→high pressure pump→reverse osmosis system→ water supply points

Residential Drinking Water System / Reverse Osmosis Water Purification Equipment For Well Water

RO Water Treatment System Show
Residential Drinking Water System / Reverse Osmosis Water Purification Equipment For Well Water
