EDI Reverse Osmosis Pure Water Treatment System / Commercial Water Filter System
EDI Reverse Osmosis Pure Water Treatment System / Commercial Water Filter System
EDI Reverse Osmosis Pure Water Treatment System / Commercial Water Filter System
EDI Reverse Osmosis Pure Water Treatment System / Commercial Water Filter System
EDI Reverse Osmosis Pure Water Treatment System / Commercial Water Filter System
EDI Reverse Osmosis Pure Water Treatment System / Commercial Water Filter System
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-250LPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Name :
Pure Water Treatment System
Electrical Power :
220/380V 50/60Hz
Tank Material :
FRP
Pipe fitting :
SUS304/ U-PVC
Type :
Commercial Water Filter System
Desalination Rate :
>=97%
Description

EDI Reverse Osmosis Pure Water Treatment System / Commercial Water Filter System

KYRO-250LPH Pure Water Treatment System

1. Capacity: 250L/H

2. Rated power: 1.5KW/H

3. Desalting rate:>=97%

4. Water recovery rate: 50-75%

5. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase

Pure Water Treatment System Performance
⇒ Main part (membrane) of reverse osmosis system is imported from USA.
⇒ Auto stop when no water and full water.
⇒ Auto controller, RO membrane auto flush to protect membrane.
⇒ Auto start when pure water tank have no water.
⇒ Low pressure protection switch to protect high pressure pump when there is no raw water.
⇒ High efficient and low noise high pressure pump.
⇒ Product water conductivity meter to monitor product water quality all the time.
Pure Water Treatment System Processing

  • STEP 1: AG Pre-Filtration – cartridge type, removes particulate matter down to 20 microns.
  • STEP 2: Carbon – an activated carbon cartridge filter that removes chlorine, chloramine, solvents, lead, insecticides, gasses, and other harmful contaminants. Works as a water softener, without the use of salt and drawing hardness particles together and crystallizing them. Includes an automatic backwashing system.
  • STEP 3: 5 Micron Pre-Filter – removes particles, sediments, and algae.
  • STEP 4: R.O. Pump – high pressure, stainless steel pump to boot water pressure to 160 lbs. for maximum membrane efficiency.
  • STEP 5: Reverse Osmosis Membrane – water is forced through a semi permeable, .0002 micron membrane, allowing only pure water molecules to pass.
  • STEP 6: Pressure Tank – 32 gallon pressure tank assures a constant flow of water to the filler and prolongs pump life.
  • STEP 7: Post Carbon Filtration – water travels through a 4.5in x 20in coconut shell carbon block filter, polishing it for an exceptionally smooth taste.
  • STEP 8: Ultraviolet Sterilizer – stainless steel sterilizer eliminates up to 99.9% of all bacteria.
  • STEP 9: Optional – ozone may be added to water storage tanks to prevent future bacterial growth.
Some parts function:
1. Raw water pump: provide needed pressure for every pre-treatment filter;
2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...

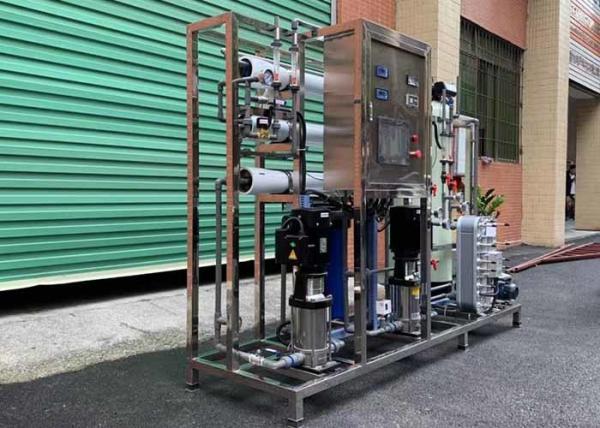

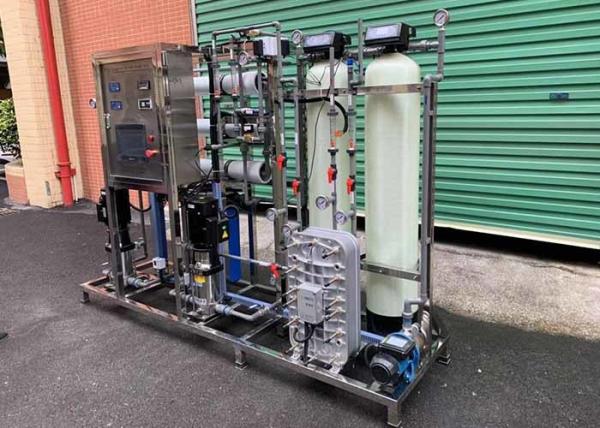

Pure Water Treatment System Show
EDI Reverse Osmosis Pure Water Treatment System / Commercial Water Filter System
