Specifications
Brand Name :
Kaiyuan
Model Number :
PET Plastic bottle filling machine
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
>= 1sets
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Name :
Bottle Filling Machine 2000BPH
Rated production capacity :
2000-3000 bottles/hour (500ml/bottle)
Bottle height :
150~310mm
Bottle diameter :
28 or 30mm
Number of stations :
washing 8 / filling 8 /capping 3
Supply voltage :
AC: 220V/ 380V 50Hz
Air consumption :
0.8m3/min
Air source pressure :
0.7MPa
Description
3 in 1 Bottle Filling Machine Automatic PET Plastic Bottle Drinking Plant
Washing /Filling /Capping 2000BPH Mineral Water Making Machine 500ml
The bottled water filling line adopts the MK8/8/3 type three-in-one filling machine. This equipment has absorbed the advanced technology of the same type of foreign products, with stable performance, safety and reliability. It is suitable for beverage factory water filling.
Rated production capacity: 2000-3000 bottles/hour (e.g. : 500ml bottle)
220ml~3000mll optional (250ml 300ml 500ml 750ml 1000ml 15000ml 2000ml etc.)
We also have 5000-6000BPH, 8000BPH, even more than 10000BPH^^
Send us inquiry to get more information!

Bottle Filling Machine Automatic PET Plastic Bottle Washing Filling Capping 2000BPH Mineral Water Making Machine

1)This machine is mainly used to fill the water.
2)Washing,filling and capping are available in one machine.
3)The structure of conveying is hanging type and clamping the bottleneck to easily change bottle type.
4)The filling method adopts the isobaric filling so that the filling speed is faster and stable.
5)Using the advanced PLC (Programmable Logic Controller) technology.
6)The major electrical apparatus are all products of well-known brands
7)The material tank is 304 stainless steel,no sanitary dead Angle,in line with GMP standards.
8)Filling valve material:SUS304

Bottle Filling Machine Automatic PET Plastic Bottle Washing Filling Capping 2000BPH Mineral Water Making Machine

1. Air conveyor
Air conveyor is horsed on the floor, with fan installed on the top. Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are blocked on the neck in the conveyor and transported into filling machine by blowing power.
All are made of stainless steel ANSI304, except the horses, board of plastic and nylon.
Length of air conveyor:according to plant layout.

Bottle Filling Machine Automatic PET Plastic Bottle Washing Filling Capping 2000BPH Mineral Water Making Machine

2. 3 in 1 bottle washing/ filling/ capping machine

Bottle Filling Machine Automatic PET Plastic Bottle Washing Filling Capping 2000BPH Mineral Water Making Machine

Bottle Filling Machine Automatic PET Plastic Bottle Washing Filling Capping 2000BPH Mineral Water Making Machine

3. Cap elevator

1)It can be compatible with other machines.

2)The traveling wheel make it convenient to use.

3)It has simple structure to operate it easily.

4)The stepless speed regulating system make it stable&fast.

5)The console model storage has big capacity,reducing

adding frequency and ease the burden of the operator.

4. Lamp inspection

1. The light box bracket shell uses the import aluminum and the high grade softener plate.

2. It equipped with the nice appearance,convenient operation and testing.

3. Fluorescent lamp

Parameter

Washing head
8pcs
Filling head
8pcs
Capping head
3pcs 2000BPH@500ml bottle
Rated production capacity
2000-3000 bottles/hour (500ml/bottle)
Suitable bottle
bottle diameter Φ28 or Φ30mm,
bottle height 150～310mm
Air pressure
0.7MPa
Air consumption
0.8m3/min
Filling motor power
2.2KW
Washing motor power
0.37KW
Capping motor power
0.18KW
Dimensions
L1950-W1800-H2200
Total weight
around 1800KG

Main configuration
Name
Original
Frequency converter
Mitsubishi
PLC
Mitsubishi
touch screen
Weilun
Contactor
Delixi
thermal relay
Delixi
Intermediate relay
Schneider
air switch
Delixi
Proximity switch
Autonics
Photoelectric switch
Autonics
Main motor
Sanli Motor
Pneumatic system
Airtac or Destor
Water pump
CNP

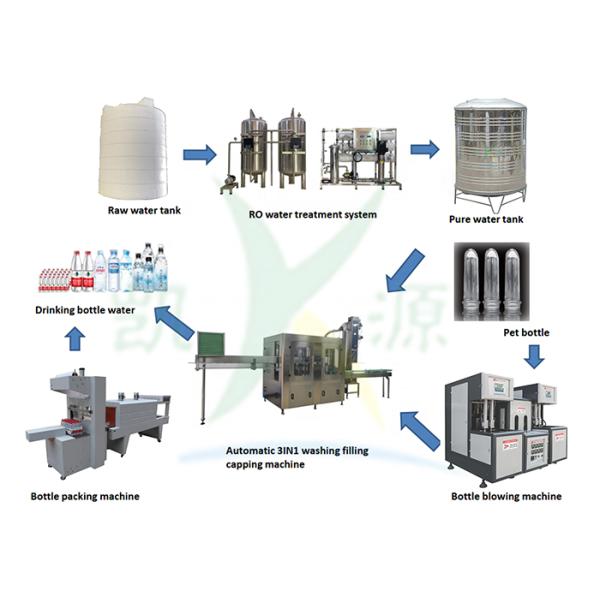

Water Line Equipment

Bottle Filling Machine Automatic PET Plastic Bottle Washing Filling Capping 2000BPH Mineral Water Making Machine

Send us inquiry to get more information!^^

Thank you so much for your value time. Any questions please send us inquiry or chat now!

We will reply you within 24hours. whatsaapp/wechat/mob: +86 13660858152
