50TPH Iron Removal Water Systems Automatic Desalination Of Brackish Water By Reverse Osmosis Water Purification Unit
50TPH Iron Removal Water Systems Automatic Desalination Of Brackish Water By Reverse Osmosis Water Purification Unit
50TPH Iron Removal Water Systems Automatic Desalination Of Brackish Water By Reverse Osmosis Water Purification Unit
50TPH Iron Removal Water Systems Automatic Desalination Of Brackish Water By Reverse Osmosis Water Purification Unit
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-50TPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
>= 1sets
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Name :
50TPH Automatic Desalination Of Brackish Water
Production Capacity :
50TPH
Recovery Rate :
50% - 75%
Electrical Power :
380V 50Hz 3Phase (Customize available)
Tank Material :
FRP / Stainless Steel / Carbon Steel
Control Valve :
Automatic / Manual
Pipe fitting :
SUS304 / SUS316L / U-PVC
Operating temperature :
5℃ - 39℃
Description

50TPH Automatic Desalination Of Brackish Water By Reverse Osmosis Water Purification Unit

RO (Reverse Osmosis) Water Purification Treatment : The capacity ranges: from 1500GPD (0.25t/h) to 3,000,000 GPD (500t/h). Reverse osmosis (RO) technology known as hyper filtration, is widely used in Cosmetic, Pharmaceutical, chemical industries, food, drinking water. RO equipment is the most advance and energy saving in water treatment industry.

Reverse osmosis pure water equipment parameters

1. Pure water output: 500L/hour; (actual water output is higher than standard design value)
2. Inlet water source: municipal tap water or ground water etc...
3. Outlet water quality: conductivity is less than 3us / cm(TDS is <2PPM), desanilation rate is 97%
4. Outlet quality meets the standards of the urban construction industry of the People's Republic
5. Rated power: 2000w
6. Rated voltage: 220v or 380v
7. Water pressure: 0.1mpa or more
8. Packaging type: wooden frame packaging

We don't produce water, we only treat water

Water treatment equipment can choose different treatment processes and equipment according to the user's raw water quality, capacity and the difference industry area. The process is different and the cost is quite difference. We can provide you economy and suitable peocess according to your water quality and capacity you need. Maximize your cost savings^^

FEATURES

1. High salt rejection: 98% and recovery rate .
2. No need to flush frequently and importantly, no pollution.
3. The product water can be drunk directly, no mineralization is required.
4. Rust and corrosion resistant with stainless steel or carbon steel coated frame
5. Flushing the membrane surface by low pressure fresh water when system stops to reduce pollution to membrane thus prolong membrane’s lifetime.
6. Stable performance, safe and reliable, up to date design
7. Small in size,easy installation and operation, easy maintenance

MAIN COMPONENTS

DOW membrane BW30-4040,BW30-400
FRP pressure vessel
GRUNDFOS SS centrifugal high pressure pump
CIP system(including cleaning tank)
PLC automatic control
SS/Carbon steel coated frame

OPTIONAL COMPONENTS

Multi-media filter
Activated carbon filter

APPLICATION

* Daily drinking water for buildings, hotel rooms, factories, schools, etc.
* For mobile working organizations such as ocean voyages, drilling units, field exploration, tec.
* Desalination of water used in production techniques

RO plant Flow chat


Raw water→ 1. Booster pump→ 2. Sand(multi-medium) filter→3. Active carbon filter→4. Softener (optional)→ 5. Security(micron) filter→6. High pressure pump→7. Reverse osmosis system→ 8. UV sterilizer (ozone generator) →Pure water storage tank

Function of each part of water treatment plant

1.Booster pump– provide the pressure to quartz sand filter/active carbon filter

2.Multi-medium filter– get rid of turbidity, suspended matter, organic matter, colloid, ect.

3.Active Carbon filter–Remove the color, free chloride, organic matter, harmful matter, ect.

4.Softener–exchange "ions" of calcium and magnesium with the most common and easiest method.

5.Security filter–prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um

6.High pressure pump– Provide the high pressure to RO membrane

7.RO system– main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions

8.UV sterilizer or ozone generator- kill bacteria

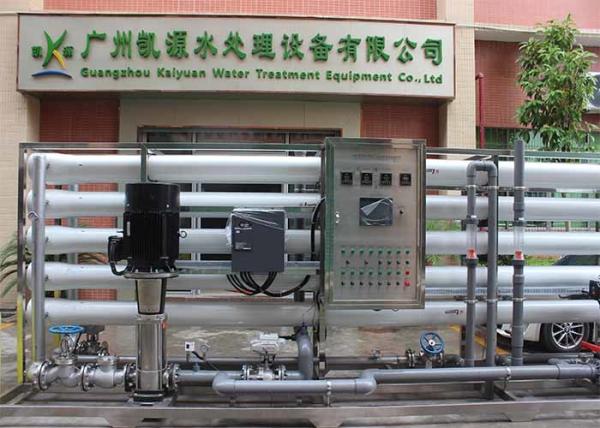

RO system Detail picture

50TPH Iron Removal Water Systems Automatic Desalination Of Brackish Water By Reverse Osmosis Water Purification Unit

50TPH Iron Removal Water Systems Automatic Desalination Of Brackish Water By Reverse Osmosis Water Purification Unit

50TPH Iron Removal Water Systems Automatic Desalination Of Brackish Water By Reverse Osmosis Water Purification Unit
