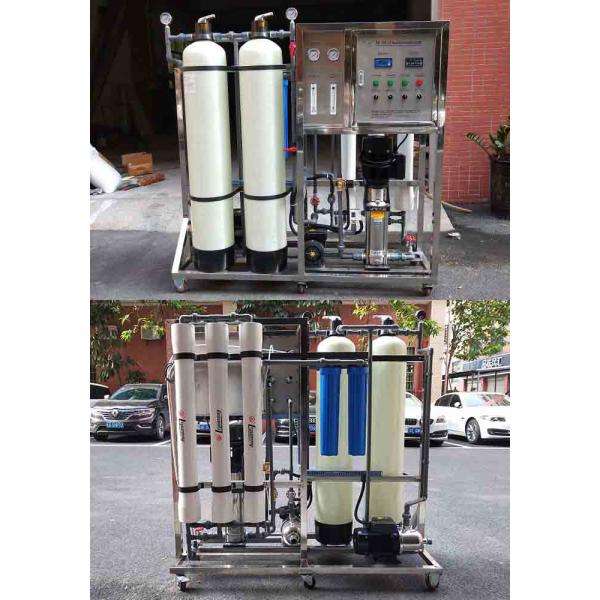

Domestic RO Water Purifier System / High Salty Brackish Water Reverse Osmosis Filter System
Domestic RO Water Purifier System / High Salty Brackish Water Reverse Osmosis Filter System
Domestic RO Water Purifier System / High Salty Brackish Water Reverse Osmosis Filter System
Domestic RO Water Purifier System / High Salty Brackish Water Reverse Osmosis Filter System
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-500LPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
>= 1sets
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Item name :
500LPH High Salty Brackish Water Reverse Osmosis Filter System
Production Capacity :
500LPH / 500liters per hour
Recovery Rate :
40%
Electrical Power :
220/380V 50/60Hz
Tank Material :
FRP
Control Valve :
Automatic/ Manual
Pipe fitting :
SUS304/ U-PVC
Warranty :
1 Year
Size :
1870*650*1850MM
Feed Water TDS :
5000 - 10000PPM
Description

500LPH Domestic RO Water Purifier System / High Salty Brackish Water Reverse Osmosis Filter System

Product Description

Deal with raw water TDS range 5000 - 10000 ppm.

RO Systems are our hot products. The capacity ranges from 250LPH to 500TPH.

Brackish water, according to the organic content can be devided into surface water and ground water . surface water we can reverse osmosis system mating with relative sterilization system , ground water we can direct use reverse osmosis system , if Iron and Manganese overpass the inlet condition of RO ,we need add Manganese sand filter for pretreatment system , here also include the specific inlet conditon of RO system for reference.

Product Details

500lph brackish water reverse osmosis system:
1. Capacity: 5000L/H
2. Rated power: 2.5KW/H
3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase
4. Desalting rate:>=97%
5. Water recovery rate: 40%
6. TDS of raw water: ≤20000μs
7. TDS of pure water: ≤600μs

A. Pretreatment system:

(1) Raw water pump CHL2-30 SUS-316
(2) Sand filter Φ250 × 1450 with 100KG sand / FRP tank
(3) Carbon filter Φ250 × 1450 with 25KG carbon / FRP tank
(4) Chemical dosing pump and tank
(5) Cartridge filter 20″×5μm 2core

B. RO system parts:

(1) High pressure pump: China Nanfang CNP brand
(2) Ro membrane: USA Dow brand
(3) RO membrane housing FRP

(4) Ro rack and other related meters

Product Processing

Raw water→ raw water pump→quartz sand filter →activated carbon filter→chemical dosing system→security filter→high pressure pump→ro system→water supply point

Quartz sand filter: fill quarts sand inside, it can filter big particles impurities, suspended substances, colloids etc.
Activated carbon filter: fill activated carbon inside, to remove color, odor, residual chlorine and organics substances.
Security filter: fill cation resion inside, prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
Chemical dosing system: add antiscalant(buyer supply) , absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling.
RO membrane: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
UV sterilizer / Ozone generator: for killing bacterial in water, be safe for drinking.

Application

1. Cosmetic industry, removal of the ions in the water, organic creature.
2. Food and beverage industrial water, drinking pure water, soft drink, beer, liquor, health care products, such as water purification and preparation of water
3. Textile, chemical industry process water/chemical preparation water circulating water, chemical products, such as purification and manufacturing
4. Can be used for bottled water, mineral water, etc filling water of making work
5. Electronic, biological and medical engineering( medical pure water).

Domestic RO Water Purifier System / High Salty Brackish Water Reverse Osmosis Filter System
Domestic RO Water Purifier System / High Salty Brackish Water Reverse Osmosis Filter System
Domestic RO Water Purifier System / High Salty Brackish Water Reverse Osmosis Filter System
Any interested kust sent us inquiry please^^
