50000LPH Seawater Reverse Osmosis System / Water Ro System For Irrigation Domestic Usage
50000LPH Seawater Reverse Osmosis System / Water Ro System For Irrigation Domestic Usage
50000LPH Seawater Reverse Osmosis System / Water Ro System For Irrigation Domestic Usage
50000LPH Seawater Reverse Osmosis System / Water Ro System For Irrigation Domestic Usage
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-50TPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
>= 1sets
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Name :
50000LPH Seawater Reverse Osmosis System
Production Capacity :
50TPH
Recovery Rate :
50% - 75%
Electrical Power :
380V 50Hz 3Phase (Customize available)
Tank Material :
FRP / Stainless Steel / Carbon Steel
Control Valve :
Automatic / Manual
Pipe fitting :
SUS304 / SUS316L / U-PVC
Operating temperature :
5℃ - 39℃
Description

50000LPH Seawater Reverse Osmosis System / Water Ro System For Irrigation Domestic Usage

Brackish water from the water pump into the quartz sand (multi-media filter) and activated carbon filtration system filtration. Filtered water after water quality reduction, PH adjustment and scale inhibitor added after the access to the precision and security filtration system, filtered low pressure brackish water all the way into the high-pressure pump pressure, the other way into the pressure exchange energy recovery device, after pressurized pump pressurized with high pressure pump into the reverse osmosis membrane reactor system. High-pressure brackish water in the membrane reactor under the treatment of the formation of fresh water through the membrane after water quality adjustment into the fresh water tank storage. The rest of the high pressure concentrated water enters the pressure exchange energy recovery unit to recover the energy after discharge.

Process

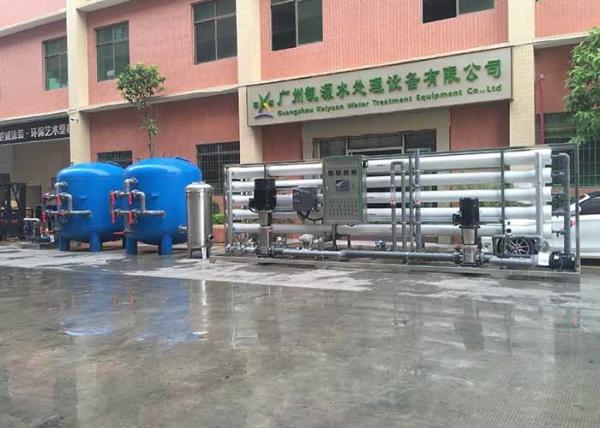

Raw water ->Raw water tank(buyer supply) -> Raw water pump -> Quartz sand filter ->Active carbon filter->Antiscale dosing system->Security filter-> High pressure pump -> RO equipment->Pure water tank(buyer supply)->Water supply point
Some parts function:

1. Raw water pump: provide needed pressure for every pre-treatment filter;
2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...


Optional Components

A. Regulating wheels

F. Auto or manual control valve

B. PC Touch Screen

G. U-PVC or stainless steel pipe

C. Two-stage RO system

H. UV sterilizer/Ozone Generator

D. PH adjustment

I. Dosing system(anti-scale)/Water Softener

E. CIP cleaning system

J. PE or stainless steel raw/pure water tank


Advantages:

1. Fresh water quality, transparent processing, clean, health, and meet GB requirements

2. High technical, stable operation, easy to maintain, long life time

3. We can design upon customers requirement

4. Competitive price, more profit


Applications:

1. Medical production,industrial pharmacy use

2. Cosmetics

3. Recycling water system

4. Chemical, electroplate industrial etc

5. Microelectronic, power, and biological project

6. Chemical Lab

7. Other electronic standard water
