Custom RO Water Treatment System , Reverse Osmosis Water Treatment Plant Stainless Steel
Custom RO Water Treatment System , Reverse Osmosis Water Treatment Plant Stainless Steel
Custom RO Water Treatment System , Reverse Osmosis Water Treatment Plant Stainless Steel
Custom RO Water Treatment System , Reverse Osmosis Water Treatment Plant Stainless Steel
Custom RO Water Treatment System , Reverse Osmosis Water Treatment Plant Stainless Steel
Custom RO Water Treatment System , Reverse Osmosis Water Treatment Plant Stainless Steel
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-500LPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
Negotiation
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
RO Membrane :
USA DOW
Production Capacity :
500liters per hour
Recovery Rate :
50%-75%
Electrical Power :
220/380V 50/60Hz
Tank Material :
FRP/ Stainless steel/ Carbon Steel
Control Valve :
Automatic/ Manual
Pipe fitting :
SUS304/ U-PVC
Warranty :
1 Year
Size :
1550*620*1670MM
Weight :
200KG
Feed Water TDS :
<2000mg/L
Desalination Rate :
>=97%
Description

500LPH Automatic Reverse Osmosis Water Treatment Plant Full Stainless Steel

1. Product Description

Reverse osmosis (RO) is a water purification technology that uses a semipermeable membrane to remove ions,molecules, and larger particles from drinking water. it could apply to both industrial processes and the production of potable water.

Reverse Osmosis(RO) use enough pressure to separate solvent (usually it is water) of liquor through film of RO membrance, so it is called to reverse osmosis, RO as high efficient technology of desalting which can remove impurity such as inorganic ion, bacteria, virus, organic substance and colloid so that high quality pure water could be obtained. The system salt rejection rate gets 96-98%, outlet water conductivity gets ≤10μs/cm².

2. Product Details

kyro-500lph Stainless Steel two stage ultrapure water equipment

1. Capacity: 500L/H

2. Rated power: 1.5KW/H

3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase

4. Desalting rate:>=97%

5. Water recovery rate: 50-75%

6. Conductivity of raw water: ≤ 400μs

7. Conductivity of pure water: < 10μs

3. Features

1. High and stable output water quality;
2. Output water continuously, do not regenerate due to stopping;
3. Do not need chemical regeneration;
4. Thoughtful stacked design, small occupy room
5. Simple and safe operation

6. Low operation and maintain cost
7. No acid and alkali in stock and transportation fee
8. Totally automatic operation, do not need mens attention

4. Advantages

**Main part (membrane) of reverse osmosis system is imported from USA.
**Auto stop when no water and full water.
**Auto controller, RO membrane auto flush to protect membrane.
**Auto start when pure water tank have no water.
**Low pressure protection switch to protect high pressure pump when there is no raw water.
**High efficient and low noise high pressure pump.
**Product water conductivity meter to monitor product water quality all the time.
**Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
**Inlet water solenoid valve to stop water when machine is stop.

5. Application


a. Medical production,industrial pharmacy use
b. Cosmetics
c. Recycling water system
d. Chemical, electroplate industrial etc
e. Microelectronic, power, and biological project
f. Chemical Lab
g. Other electronic standard water
6. Process
SS304 raw water tank (provided by client) - raw water pump-quartz sand filter-actived carbon filter- precision filter-high pressure pump - reverse osmosis system -pure water tank (provided by client) - outlet

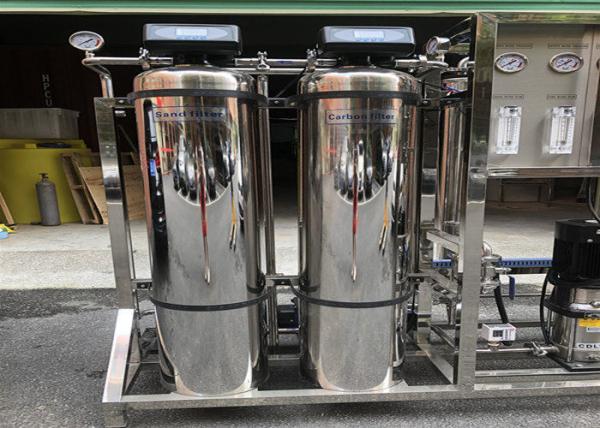

7. Photo Show

Custom RO Water Treatment System , Reverse Osmosis Water Treatment Plant Stainless Steel

Custom RO Water Treatment System , Reverse Osmosis Water Treatment Plant Stainless Steel

Custom RO Water Treatment System , Reverse Osmosis Water Treatment Plant Stainless Steel

Welcome to visit our factory^^
