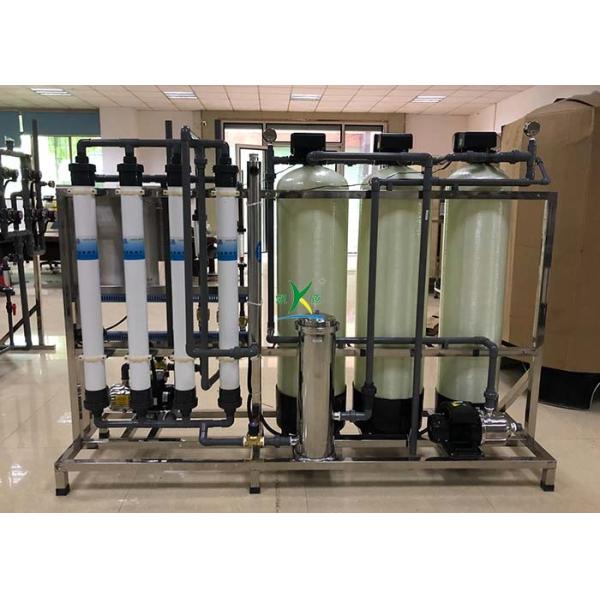

2000lph Ultrafiltration Membrane System FRP Purification UF Water Treatment Plant
2000lph Ultrafiltration Membrane System FRP Purification UF Water Treatment Plant
2000lph Ultrafiltration Membrane System FRP Purification UF Water Treatment Plant
2000lph Ultrafiltration Membrane System FRP Purification UF Water Treatment Plant
2000lph Ultrafiltration Membrane System FRP Purification UF Water Treatment Plant
2000lph Ultrafiltration Membrane System FRP Purification UF Water Treatment Plant
2000lph Ultrafiltration Membrane System FRP Purification UF Water Treatment Plant
2000lph Ultrafiltration Membrane System FRP Purification UF Water Treatment Plant
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-2000LPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
>= 1sets
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
UF Membrane :
UFc90AL
Production Capacity :
2000liters per hour
Electrical Power :
220V / 380V 50Hz / 60Hz
Tank Material :
FRP / Stainless steel
Control Valve :
Automatic / Manual
Pipe fitting :
SUS304 / U-PVC
Warranty :
1 Year
Optional :
Ozone/ UV / water softener
prefiltering tank :
Glass Fiber / FRP
Description

Purification UF Water Purification Plant Ultra Filtration Membrane Filter System

1. Product Description

Ultrafiltration is a separation technique widely used.Mainly the use of polysulfone, microporous polyethersulfone
ultrafiltration membranes (molecular weight cut thousands of ten thousands daltons) filter out impurities in the water
can be removed more than 98% organic matter, to ensure that the treated water is less than 1 SDI, the SDI value, the
turbidity is very satisfactory.The pretreatment facilities are exempt large, does not need the coagulant, flocculation, comply
with environmental requirements.

2. Product Details

kyro-2000lph Ion exchange equipment

Specificationfor 2000L/H UF system
Item
Material/Model
Brand
Function
Raw water pump
SS304
Domestic
Provide pressure for raw water
Quartz sand filter
FRP
Domestic
Remove large particule
Activated carbon filter
FRP
Domestic
Remove smell,color,bacterial and organic matter
Water softener
FRP
Domestic
Remove hardness,such as Ca2+,Mg2+
Security filter
PVC 1μm/5μm
Domestic
Block impurities greater than 5micron(1micron)
UF membrane
UF-90
Domestic
Remove impurities great than 0.001micron
Backwashing pump
SS304
CNP
Clean the UF membrane
UV sterilizer(Optional)
23w
Domestic
Kill 99% bacterial
(For drinking directly)
Ozone Generator(Optional)
3g/l
Domestic
Kill 99%bacterial and keep 2hours.(For making bottled water)

3.Product Processing

Raw water →raw water pump→ sand filter→carbon filter→water softener→security filter→ UF system→UV→pure water tank

2000lph Ultrafiltration Membrane System FRP Purification UF Water Treatment Plant

The main technical data

1). Turbidity(NTU):<0.5
2). Pollution index : <0.5
3). PH:2-12
4). Work pressure (Mpa):0.05-0.2
5). Work temperature(°C):10-45

Spare parts of this system

Part name
Advice Replacement time
Quantity in this system
pp filter cartridge
Every one month
5pcs
Quartz sand
Every 15-18months
150kgs(3bags)
Activated carbon
Every 15-18months
50kgs(2bags)
Resin
Every 15-18months
75L(3bags)
UF membrane
Every 2years
4pcs

4. Application fields

1. Dairy, Fruit Juice, Vegetable Juice And Other Clear, Concentrated.

2. Animals And Plants (Aloe Vera, Mangosteen, Tea, Etc.) Effective Ingredients Extraction.

3. Soybean Protein, Oligosaccharides, Isoflavones And Other Extraction, Concentration.

4. Antibiotics, Amino Acids, Vc And Other Fermentation Broth Purification, Concentration.

5. Chinese Medicine (Bupleurum, Salvia, Scutellaria, Etc.) Injection Of Active Ingredients Purification, Separation.

6. Polysaccharides (Ganoderma Lucidum, Grifola Frondosa, Mushrooms, Etc.) Material Purification, Concentration.

7. Fluorescent Whitening Agent Desalination, Concentration.

8. Electrophore Paint Recovery And Water Reuse.

9. Pva Of Textile Desizing Wastewater Reuse.

5. Pictures Show

2000lph Ultrafiltration Membrane System FRP Purification UF Water Treatment Plant

2000lph Ultrafiltration Membrane System FRP Purification UF Water Treatment Plant
