Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-1500LPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
>= 1sets
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Product keywords :
1500L/H RO System Water Purification Plant
Tank Material :
FRP / Stainless Steel / Carbon Steel
RO Membrane :
Vontron ULP31-4040
Production Capacity :
1500liters per hour
Recovery Rate :
50% - 75%
Consumables :
Quartz Sand / Activated Carbon / PP filter cartridge
Pump :
CNP, Grundfos optional
Control Valve :
Automatic / Manual
Operating Temperature :
5°C - 39°C
Desalination rate :
>= 97%
Description

Automatic Fiber Glass CE ISO Approved 1500L/H RO System Water Purification Plant For Drinking​

Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won’t polluted environment. Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.

1.Product Description

Work process:

The RO water system is adopt advanced technology , the RO water output rate is 1.5M3/HR.

The quartz sand filter can remove the suspend solid and improve the outlet water turbidity.
The activated carbon filters will remove color, odor, chlorine from the raw water.

After these two filters , the water will be through into the security filter which can remove the smaller suspended solids .Then water flow into RO system part cause by the boosting of high pressure pump.

The inlet water reach working pressure of the RO system part , then transport into to the pressure vessel which with RO membrane module .The water will be separated by the RO membrane and become two water current, the one is outlet pure water , the other one is dense water.

The pure water is transport to pure storage tank and the dense water is discharged to gutter after the adjustment of dense water valve and measurement of the measure meter.

2. Product Details

KYRO-1500LPH RO Water Treatment System:

1. Capacity: 1500 Liters per hour

2. Rated power: 3.5KW/H

3. Desalting rate:>=97%

4. Water recovery rate: 50-75%

5. Voltage: 110V - 415V, 50Hz or 60Hz, single phase or 3phase

3. Product Processing

Process: raw water tank → raw water pump → quartz sand filter → activated carbon filter → water softener / chemical dosing system (optional) → security filter → high pressure pump → ro system → pure water tank → UV sterilizer (ozone generator) → precision filter → water supply point

4. Application

Feed water(source water / raw water):

City water, river water, lake water, underground water(borehole water , well water), brackish water, sea water atc...

Treated water:

1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water

2. Food and beverage industry: filter for mineral water, wines and fruit juice

3. Medicine industry: filter for drug liquid, gases

4. Chemical industry: filter for organic solvent

5. Petroleum industry: filter for oil-field flooding

5. Optional Components

A. Regulating wheels

B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system

F. Auto or manual control valve

G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator

I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank

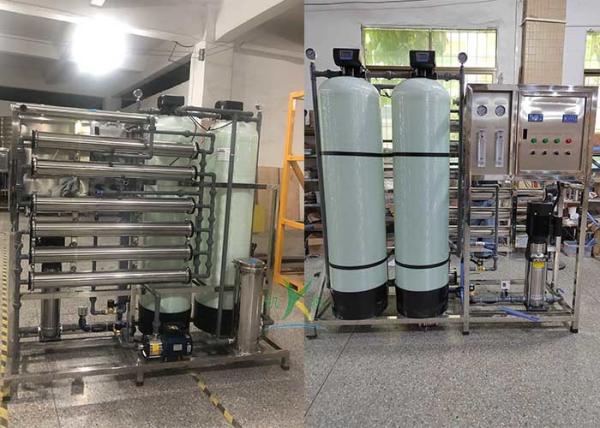

5. Pictures show

Manual style:

Automatic Fiber Glass Water Purification Plant 1500L/H RO System For Drinking
Automatic Fiber Glass Water Purification Plant 1500L/H RO System For Drinking
Automatic style:
Automatic Fiber Glass Water Purification Plant 1500L/H RO System For Drinking
Automatic Fiber Glass Water Purification Plant 1500L/H RO System For Drinking

Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
