CE Products Alkaline Water Machine Water Reverse Osmosis Water Purifier Machine
CE Products Alkaline Water Machine Water Reverse Osmosis Water Purifier Machine
CE Products Alkaline Water Machine Water Reverse Osmosis Water Purifier Machine
CE Products Alkaline Water Machine Water Reverse Osmosis Water Purifier Machine
CE Products Alkaline Water Machine Water Reverse Osmosis Water Purifier Machine
CE Products Alkaline Water Machine Water Reverse Osmosis Water Purifier Machine
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-4000LPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
>= 1sets
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>100sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Item Name :
RO Water System 4000LPH
Production Capacity :
4000liters per hour
Recovery Rate :
50% - 75%
Electrical Power :
110V - 415V 50Hz or 60Hz
Tank Material :
FRP/ Stainless Steel/ Carbon Steel
Warranty :
1 year
Description

CE des produits machine eau alcaline prix usine de dessalement machine fabrication eau osmose inverse purificateur eau 4TPH

CE Products Alkaline Water Machine Factory Price Desalination Machine Manufacture Water Reverse Osmosis Water Purifier

1. Product Description

Reverse osmosis system is using city water as feed water.

Pre-treatment filters always contain quartz sand filter, activated carbon filter, water softener and security filter. Main purpose is to remove sludge, rust, colloid, suspended solids, color, odor, biochemical organic impurity in raw water. And pre-filters can also reduce water residual chlorine and pesticide and other harmful pollutions. If raw water in high hardness, we will need to add water softener to protect reverse osmosis membrane.
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogen, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogen, and 99% bacterial in the feed water.
2. Product Parameter
Parameters of 4TPH RO Water Purifier
Product Name
Material
Brand
Usage
Raw Water Pump
SUS-304
CNP
Provide needed pressure for every pre-treatment filter
Sand Filter
SUS-304
China
Remove the water contains sediment, manganese, rust, colloid material, and other particles in the above 20UM of substances hazardous to health.
Activated Carbon Filter
SUS-304
China
Remove the pigment in the water, smell,organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Water Softener(optional)
SUS-304
China
Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water.
Security Filter
SUS-304
China
Remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
High Pressure Pump
SUS-304
CNP
Provide needed pressure for RO system
RO Membrane
BW30-400IG
USA,Dupont
Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts.
UV Sterilizer /Ozone generator
40W*2
China
Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water
3. System Advantages
1 water treatment plant Adopting SS304 material with opening design, clear process and convenient maintenance.
2 water treatment plant High quality TFC compound Ro membrane treatment crafts with very low pressure and the capacity of desalinization rate comes to 98% at least.
3 water treatment plant is Auto-check conductance display guarantee watching water quality.
4 Multi medium beforehand filter increases the capacity of water treatment plant.
5 water treatment plant adopts high efficiency active carbon filter which can wipes chlorine of raw water , protect RO system membrane and adjust the taste.
6 water treatment plant has Safe and reliable electrical system. Which designed equipment auto stop protection when open circuit, short circuit and overload.
7 Intelligent circuit design equipment auto stop and run when high or low level water.
8 water treatment plant has auto wash and manual wash model for choosing , which can protect RO membrane easily.
4. Optional Components
A. Regulating wheels B. PC Touch Screen
C. Two-stage RO system D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
5. Product Processing

Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point
CE Products Alkaline Water Machine Water Reverse Osmosis Water Purifier MachineSome parts function
1.Raw water pump: provide needed pressure for every pre-treatment filter;
2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;
3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

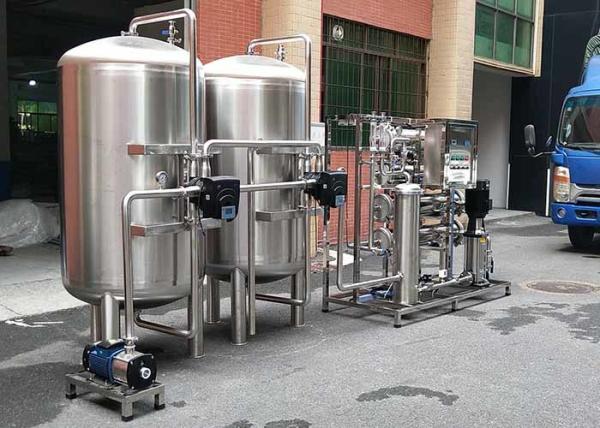

6. Pictures Show

CE Products Alkaline Water Machine Water Reverse Osmosis Water Purifier Machine

CE Products Alkaline Water Machine Water Reverse Osmosis Water Purifier Machine

CE Products Alkaline Water Machine Water Reverse Osmosis Water Purifier Machine


Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
