Double Stage RO Water Purification Plant Reverse Osmosis Purifier Machine 2T/H
Double Stage RO Water Purification Plant Reverse Osmosis Purifier Machine 2T/H
Double Stage RO Water Purification Plant Reverse Osmosis Purifier Machine 2T/H
Double Stage RO Water Purification Plant Reverse Osmosis Purifier Machine 2T/H
Double Stage RO Water Purification Plant Reverse Osmosis Purifier Machine 2T/H
Double Stage RO Water Purification Plant Reverse Osmosis Purifier Machine 2T/H
Double Stage RO Water Purification Plant Reverse Osmosis Purifier Machine 2T/H
Double Stage RO Water Purification Plant Reverse Osmosis Purifier Machine 2T/H
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-2000LPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Name :
RO Water Treatment System
Production Capacity :
2000 litters per hour
Electrical Power :
220/380V 50/60Hz
Tank Material :
FRP
Pipe fitting :
SUS304/ U-PVC
Function :
Remove Dissolved Solids From Water
Feed Water TDS :
<2000mg/L
Desalination Rate :
>=97%
Description

Double Stage Water Osmosis Ozone Purifying Systems RO Water Purification Plant Reverse Osmosis Purifier Machine

RO Water Treatment System Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% bacterial in the feed water.

Double Stage RO Water Purification Plant Reverse Osmosis Purifier Machine 2T/H

RO Water Treatment System Details
1. Capacity: 2T/H Reverse Osmosis System
2. Rated power: 4.0 KW/H
3. Voltage: 110V / 220V / 380V, 50Hz / 60Hz, single phase / 3phase
4. Desalting rate:>=97%
Product Processing
Double Stage RO Water Purification Plant Reverse Osmosis Purifier Machine 2T/H
Raw water----booster pump---quartz sand filter---activated carbon filter---water softener (optional)---security filter
----high pressure pump---RO system---UV system (Ozone generator)---pure water tank

First stage pretreatment.(Sand filter)
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.

Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.

Third stage pretreatment (Resin softener)
Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.

Components:

There are several kinds of consumables you need to replace regularly.

a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
e. Ro membrane: replaced about every 2 year

We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.

RO Water Treatment System Consumables
There are several kinds of consumables you need to replace regularly. (for 2000LPH)

a. Quartz sand: replaced about every 15 months. 50kg/bag,450kg/set
b. Activated carbon: replaced about every 15 months. 25kg/bag, 125kg/set
c. Resin: replaced about every 15 months. 25L/bag, 225L/set
d. PP Filter cartridge: replaced about every 1 month. 7pcs/set
e. Ro membrane: replaced about every 2 year. 8pcs/set

We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.

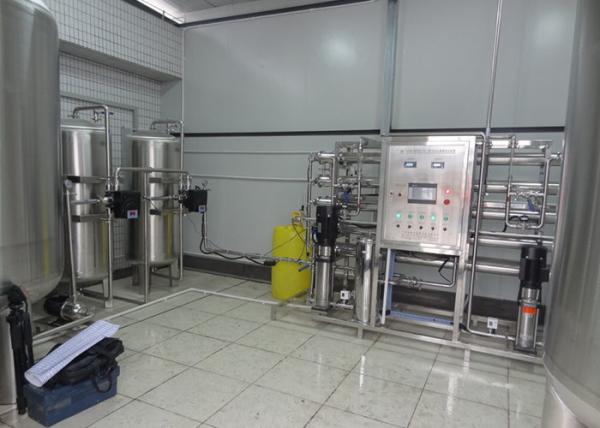

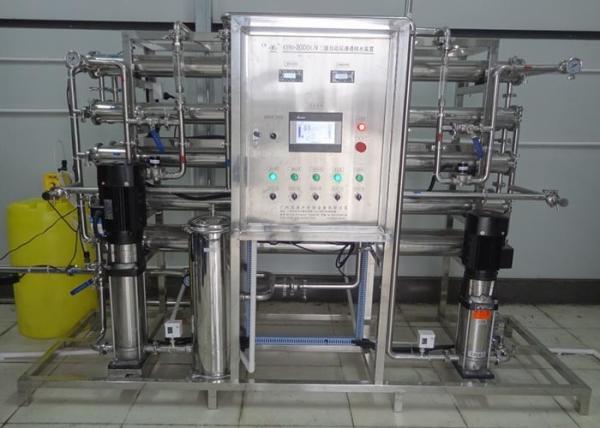

RO Water Treatment System Show
Double Stage RO Water Purification Plant Reverse Osmosis Purifier Machine 2T/H
Double Stage RO Water Purification Plant Reverse Osmosis Purifier Machine 2T/H
Double Stage RO Water Purification Plant Reverse Osmosis Purifier Machine 2T/H

Thank you so much for your inquiry. Any questions please contact us without any hesitation !We will reply you within 24hours.

Tel/ whatsApp/ wechat: +86-13711203110


Note:
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
