1.5TPH RO Water System Filter Reverse Osmosis Plant For Making Bottle Selling Water
1.5TPH RO Water System Filter Reverse Osmosis Plant For Making Bottle Selling Water
1.5TPH RO Water System Filter Reverse Osmosis Plant For Making Bottle Selling Water
1.5TPH RO Water System Filter Reverse Osmosis Plant For Making Bottle Selling Water
1.5TPH RO Water System Filter Reverse Osmosis Plant For Making Bottle Selling Water
1.5TPH RO Water System Filter Reverse Osmosis Plant For Making Bottle Selling Water
1.5TPH RO Water System Filter Reverse Osmosis Plant For Making Bottle Selling Water
1.5TPH RO Water System Filter Reverse Osmosis Plant For Making Bottle Selling Water
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-1500LPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Name :
Ro Water Purifier Machine
Production Capacity :
1500liters per hour
Recovery Rate :
50% - 75%
Application :
Filtration
Tank Material :
FRP/ Stainless Steel/ Carbon Steel
Other Name :
Drinking Water Treatment Systems
Pipe fitting :
SUS304/ U-PVC
Warranty :
1 Year
Description

1.5TPH RO Water System Filter Reverse Osmosis Plant Set Treatment Machinery For Making Bottle Selling Water

Ro Water Purifier MachineDescription

Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogen, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogen, and 99% bacterial in the feed water.

Ro Water Purifier Machine Details

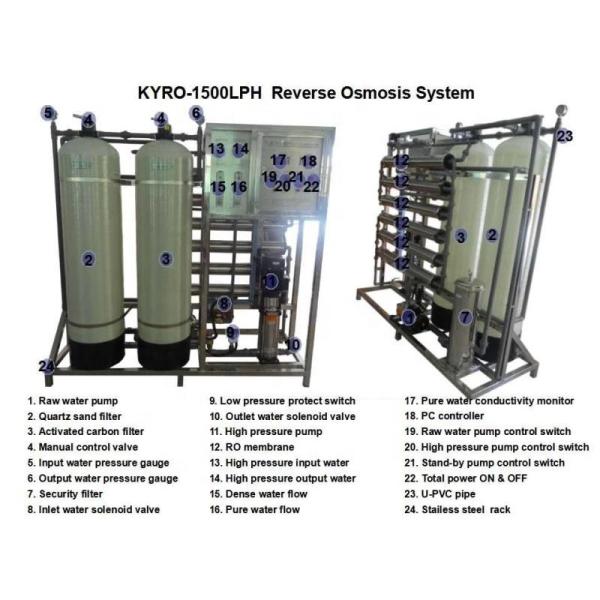

Parameters of 1.5TPH RO Water Purifier
Product Name
Material
Brand
Usage
Raw Water Pump
SUS-304
CNP
Provide needed pressure for every pre-treatment filter
Sand Filter
FRP
China
Remove the water contains sediment, manganese, rust, colloid material, and other particles in the above 20UM of substances hazardous to health.
Activated Carbon Filter
FRP
China
Remove the pigment in the water, smell,organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Water Softener(optional)
FRP
China
Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water.
Security Filter
SUS-304
China
Remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
High Pressure Pump
SUS-304
CNP
Provide needed pressure for RO system
RO Membrane
LCLE-4040
USA,Dupont
Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts.
UV Sterilizer /Ozone generator
28W
China
Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water

Capacity

1500lph

Water recovery

more than 50%

Function

Producing Fresh Water

Type

Pure Water Treatment System

Application

Filtration

Material

FRP+PVC/stainless teel

Usage

Pure Water Process

Voltage

110V / 220V / 380V

Desalting rate

more than 97%

Membrane

USA Filmtec DOW

Ro Water Purifier Machine Processing

1.5TPH RO Water System Filter Reverse Osmosis Plant For Making Bottle Selling Water

Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point

First stage pretreatment.(Sand filter)

The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.

Second stage pretreatment (Carbon filter)

Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.

Third stage pretreatment (Resin softener)

Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.

Fourth stage pretreatment (Micron filter)

Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.

RO system

The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level.

Ro Water Purifier Machine Application

  1. Antibiotics, Amino Acids, Vc And Other Fermentation Broth Purification, Concentration.
  2. Chinese Medicine (Bupleurum, Salvia, Scutellaria, Etc.) Injection Of Active Ingredients Purification, Separation.
  3. Polysaccharides (Ganoderma Lucidum, Grifola Frondosa, Mushrooms, Etc.) Material Purification, Concentration.
  4. Fluorescent Whitening Agent Desalination, Concentration.
  5. Electrophore Paint Recovery And Water Reuse.
  6. Pva Of Textile Desizing Wastewater Reuse.

Ro Water Purifier Machine Details

1.5TPH RO Water System Filter Reverse Osmosis Plant For Making Bottle Selling Water

Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
