RO Mineral Water Filter Machine Soft Drinking Water Process Line Reverse Osmosis
RO Mineral Water Filter Machine Soft Drinking Water Process Line Reverse Osmosis
RO Mineral Water Filter Machine Soft Drinking Water Process Line Reverse Osmosis
RO Mineral Water Filter Machine Soft Drinking Water Process Line Reverse Osmosis
RO Mineral Water Filter Machine Soft Drinking Water Process Line Reverse Osmosis
RO Mineral Water Filter Machine Soft Drinking Water Process Line Reverse Osmosis
RO Mineral Water Filter Machine Soft Drinking Water Process Line Reverse Osmosis
RO Mineral Water Filter Machine Soft Drinking Water Process Line Reverse Osmosis
Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-5TPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Name :
Reverse Osmosis System
Production Capacity :
5000liters per hour
Recovery Rate :
50% - 75%
Application :
Filtration
Tank Material :
FRP/ Stainless Steel/ Carbon Steel
Other Name :
Drinking Water Treatment Systems
Pipe fitting :
SUS304/ U-PVC
Warranty :
1 Year
Description

RO Mineral Water Machine Soft Drinking Water Process Line Filtration Equipment Plant Reverse Osmosis

Ro Water Purifier MachineDescription

RO(Reverse Osmosis, RO), the basic working principle is : using of a special high pressure pump, increasing pressure to raw water, then force raw water penetrating through reverse osmosis membrane under the pressure. Only water molecules and solvent less than microns can pass through the RO membrane.

Ro Water Purifier Machine Processing

RO Mineral Water Filter Machine Soft Drinking Water Process Line Reverse Osmosis

Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point

Parameters of 5000LPH RO Water Purifier
Product Name
Material
Brand
Usage
Raw Water Pump
SUS-304
CNP
Provide needed pressure for every pre-treatment filter
Sand Filter
FRP / SUS-304
China
Remove the water contains sediment, manganese, rust, colloid material, and other particles in the above 20UM of substances hazardous to health.
Activated Carbon Filter
FRP / SUS-304
China
Remove the pigment in the water, smell,organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Water Softener (one stand-by)
FRP / SUS-304
China
Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water.
Security Filter
SUS-304
China
Remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
High Pressure Pump
SUS-304
CNP
Provide needed pressure for RO system
RO Membrane
BW30-400IG
USA,Dupont
Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts.
UV Sterilizer /Ozone generator
40W*2
China
Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water
Option Item
Anti-dosing system / CIP system / Chlorination system

Main Features(Pump):

1--Brand : CNP

2--Origin :China (with high quality and good reputation)
3--Function :Provide pressure for the pre-treatment.
4--Material :Stainless steel 304,anti-rust
5--Optional Brand : Danfoss & Grundfos ...
Main Features(RO Membrane):
1--Brand : USA,Dupont
2--Origin :USA (Top in the world,with high quality and good reputation)

3--Function :Remove 99% dissolved salts...

4--Membrane housing material :FRP

5--Optional membrane brand : Toray & HYDECANME & Vontron ...

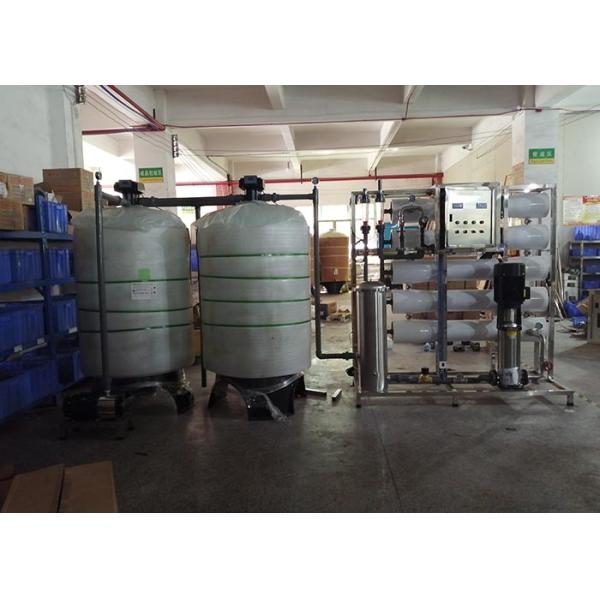

Ro Water Purifier Machine Details

RO Mineral Water Filter Machine Soft Drinking Water Process Line Reverse Osmosis

RO Mineral Water Filter Machine Soft Drinking Water Process Line Reverse Osmosis

Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
