Specifications
Brand Name :
Kaiyuan
Model Number :
KYRO-1000LPH
Certification :
ISO9001, CE, SGS
Place of Origin :
Guangzhou, China
MOQ :
>= 1sets
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Plant name :
1000LPH Alkaline Water Purifier
Production Capacity :
1000liters per hour
Recovery Rate :
50%-75%
Electrical Power :
220/380V 50/60Hz
Pipe fitting :
SUS304/ U-PVC
Application :
Pure /Alkaline / Mineral water dor sale
Size :
1550*620*1670MM
Desalination Rate :
>=97%
Description

99% Bacterial Removal 1000LPH Alkaline Water Purifier ORP Magnesium Ball Drinking Water Treatment For Commerce / Home

RO(Reverse Osmosis, RO), the basic working principle is : using of a special high pressure
pump, increasing pressure to raw water, then force raw water penetrating through reverse
osmosis membrane under the pressure. Only water molecules and solvent less than microns
can pass through the RO membrane.

Industrial water filter, the raw water is underground water, first goes by pre-treatment, then by RO treatment. Through those treatments, can remove dissolving salt 99% and harmful materials, like particle, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat source, etc. the system salt rejection rate gets 96-98%, outlet water conductivity gets ≤10μs/cm².

Flow chat


raw water→raw water tank→ raw water pump→ sand filter→ carbon filter→softener (optional)→ security filter→ high pressure pump→ reverse osmosis system→ UV sterilizer (ozone generator) →pure water storage tank

Working process

1---Quartz sand filter
Function:Mainly remove the mud, suspended solids and large particles in the feed water
Flow rate: 1m3/h
Size: φ350×1400mm
Design pressure: 0~7kg
Material: FRP (Fiber glass)
Filter media: fine quartz sand
Filter media size: 1-2.5mm and 2.5-4.5mm
2---Active carbon filter
Function:mainly remove organic substances, residual chlorine , 50% iron and odor in feed water
Flow rate: 1m3/h
Size: φ350×1400mm
Design pressure: 0~7kg
Material: FRP
Filter media: fine active carbon
Filter media size: 20-40mesh
3---Mineralized/ Alkaline filter Size: φ250×1450mm
Function: meet market demand, customers can sell pure water, alkaline water, and mineralized water.
Difference between 3 of them:
Pure water after RO membrane it will change into pure water
mineral water is have Mineral inside, if do with this just based on purified water and add mineralized ball;
alkaline water is have Alkaline substance inside, if do with this just based on purified water and add alkaline ball;

Purified water PH6.5 around
Mineral water PH6.5-8 around
Alkaline water PH8.5 around
4---Security filter
Function: further filtration, to avoid quartz(paticle) entry into RO to break the membrane, accuracy less then 5μm
Housing Material: SUS304
Cartridge material: Spray-fusing polypropylene 5μm x 20"
Cartridge Qty: 5pcs
5---RO membrane
Function: the main part of pure water equipment, the production of high-purity water. Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
Model: USA DOW(DUPont) LCLE-4040
Flow rate: ≥1.0m3/h(25°C)
Desalination rate: ≥97%
Water Temperature: 5~39 °C
Max Working Pressure: 1.5MPa
Recovery rate : ≥50%
Operation: automatic control, automatic flush
Membrane material: aromatic polyamide composite membrane
Membrane housing material: SUS 304

Application

Electronics Industry

Silicon,micro-electronics products with high water. Semiconductors,tubes and other manufacturing industries with high water. The using of production water batteries in lithium batteries, solar power batteries, dry cell batteries.

Food and Beverage field

Pure water, distilled water, mineralized water, natural water,mineral water. The using of production water in liquor blending and beer production. The using of pure water in food and beverage production. The supply of drinking water for hotels, building and uptown.

Phamaceutical industry

Pharmaceutical, injection with pure water, high pure water and sterile water,etc. Purification and separation of drug raw materials. Medical hemodialysis, biochemical analysis and water for injection.

Cosmetics

The using of pure water in the production of skincare, shampoo,toothpaste and other cleaning fluid.

Chemistry and

Chemical Engineering

The using of pure water in the production of chemical reagent, chemical fertilizers and paper making.

Surface Treatment:

The using of highly pure water in electroplating and glass coated. Ultrasonic cleaning with pure water. The surface coating and cleaning automotive,appliance, building material products with pure water.

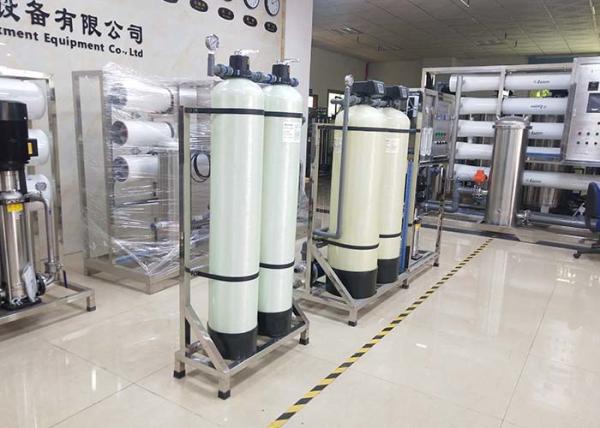

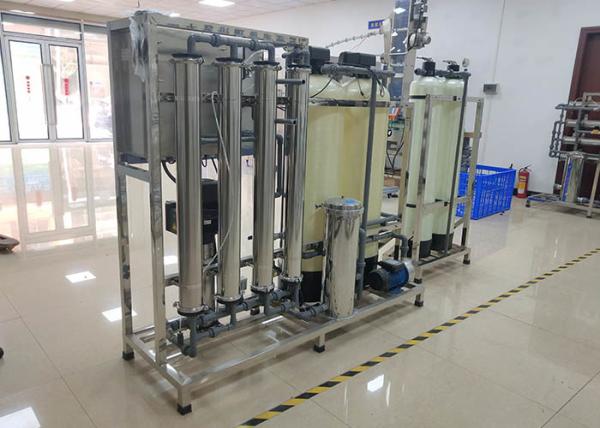

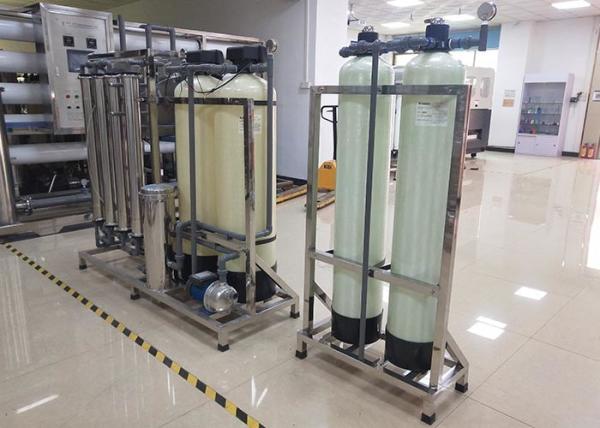

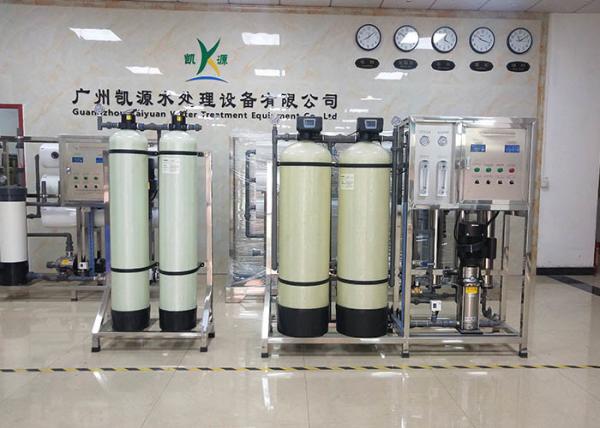

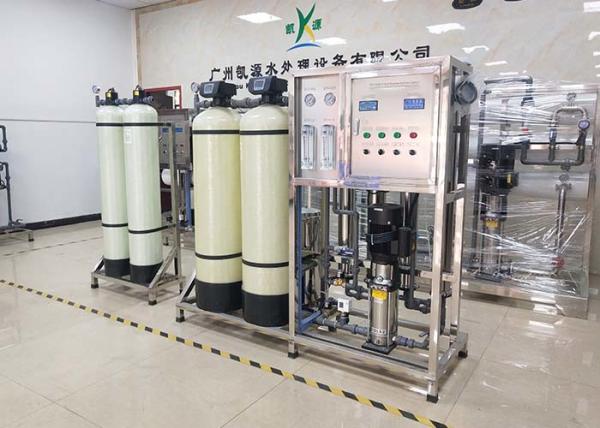

Photo Show

99% Bacterial Removal 1000LPH Alkaline Water Purifier ORP Magnesium Ball Drinking Water Treatment

99% Bacterial Removal 1000LPH Alkaline Water Purifier ORP Magnesium Ball Drinking Water Treatment

99% Bacterial Removal 1000LPH Alkaline Water Purifier ORP Magnesium Ball Drinking Water Treatment

Packing

99% Bacterial Removal 1000LPH Alkaline Water Purifier ORP Magnesium Ball Drinking Water Treatment
