Reverse Osmosis Water Filter System Industrial Ro Plant Desalination Plant

Product Introduction of RO Water Treatment System

Design Features:
1. Achieve deep filtration of water by increasing the pressure on water. In addition to general filters, reverse osmosis pure water equipment also has fine filters, granular activated carbon filters and compressed activated carbon filters. The fine filter has a finer filtering function than the general filter, and can better filter impurities in the water. As we know, activated carbon has a good adsorption and filtration function for odors and impurities. The reverse osmosis pure water equipment uses double activated carbon filters to realize the deep filtration of raw water and improve the filtration efficiency of the equipment. At the same time, it is also an innovation to enhance the filtration capacity by increasing the pressure of the water.
2. The core of reverse osmosis pure water equipment is the application of reverse osmosis membrane. The reverse osmosis membrane is a filter membrane with extremely small pore size. Using this membrane can realize ultra-fine filtration of raw water, and can divide water into high concentration and low concentration at the same time. Water with a higher concentration can be recycled and reused, and water with a lower concentration is pure water that can be used by humans.

Advantages of RO water treatment system:

Technical Features:

1. American ultra-low pressure roll-type composite reverse osmosis membrane with high desalination rate and low operating pressure, excellent water quality, low operating cost and long service life;
2. High-efficiency, low-noise, high-quality high-pressure pumps;
3. The online product water conductivity meter can monitor the water quality at any time;
4. The product water and concentrated water are equipped with flow meters to monitor the water output and recovery rate of the system;
5. Pressure gauges before and after the fine filter, and pressure gauges before and after the reverse osmosis membrane can continuously monitor the pressure difference between the reverse osmosis membrane and the fine filter, prompting when to clean or replace;
6. The high pressure switch protects the reverse osmosis membrane from damage due to excessive pressure;
7. The low-pressure switch protects the high-pressure pump from damage due to water supply stop;
8. The stainless steel regulating valve adjusts the water output and the system recovery rate at any time;
9. The standard program automatic control system can reduce the membrane fouling speed, prolong the service life of the membrane, and ensure the stable and reliable water quality of the system effluent.

Process flow of RO Water Treatment System
Raw water → Raw water tank → Raw water pump → Multi-media filter (quartz sand filter) → Activated carbon filter → Soft water processor → Precision filter → High pressure pump → Primary reverse osmosis (RO) device → Purified water tank → High pressure pump → Two Stage reverse osmosis → ultraviolet sterilization device → water point.

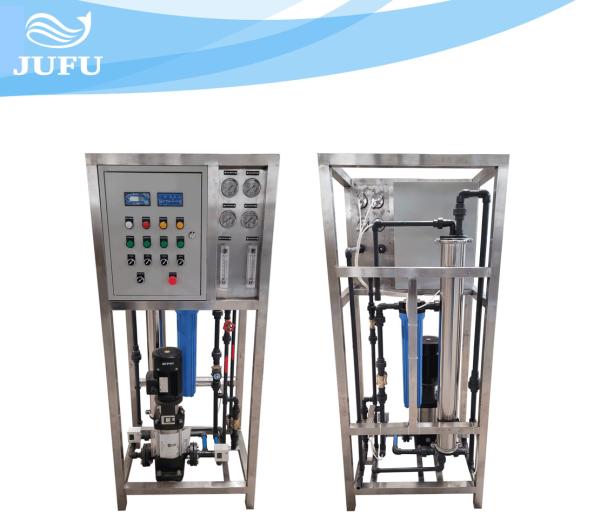

Photos of Reverse Osmosis Water Treatment System

FAQ:

1. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)

Model 4040 is designed by 0.25m3/h

Model 8040 is designed by 1-1.2m3/h

2. What is the material of mechanical filter?

Carbon steel, stainless steel, fiberglass

3.What are the multi-way control valves?

Manual control valve, automatic control valve

Multi - way control valve is divided into: filter valve and softening valve

Automatic control valve is divided into: time type and flow type.

Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean source, etc.
