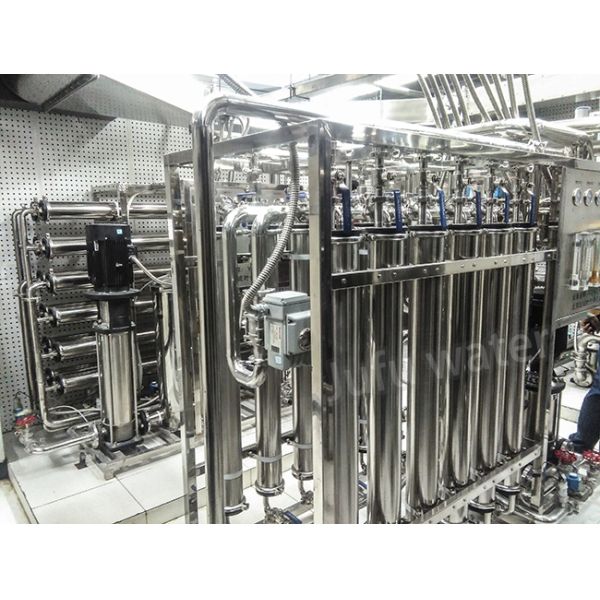

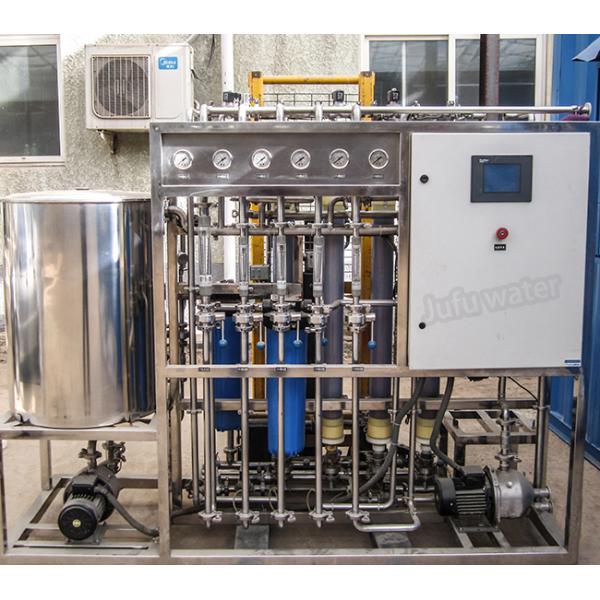

UF Water Treatment Machine Ultrafiltration Water Treatment Equipment 1000 LPH

Characteristics of Ultrafiltration Water Treatment System

1, ultrafiltration equipment control system can be personalized design according to the specific requirements of users, combined with advanced control software, on-site centralized monitoring of important process operation parameters, to avoid manual misoperation, multi-directional to ensure long-term stable operation of the system.
2, ultrafiltration equipment system recovery rate is high, the product quality is good, can realize the material of efficient separation, purification and high multiple concentration.
3. There is no phase change in the treatment process, and no adverse effect on the composition of the material.
4, ultrafiltration equipment system low energy consumption, short production cycle, compared with the traditional process equipment, equipment operation cost is low, can effectively reduce the cost of production, improve the economic benefits of enterprises.
5. The advantages of ultrafiltration technology are simple operation, low cost and no need to increase any chemical reagents.

Technical specifications of Ultrafiltration Water Treatment System

About ultrafiltration device:
The ultrafiltration device generally consists of several ultrafiltration components. Usually can be divided into plate frame, tube, spiral coil and hollow fiber type four main types. Most of the liquid treated by ultrafiltration contains water-soluble biological macromolecules, organic colloid, polysaccharides and microorganisms.

Workflow of Ultrafiltration Water Treatment System

Typical process flow of ultrafiltration technology Raw solution - storage tank - pressure pump - precision filter - hollow ultrafiltration equipment - liquid storage tank - backwash water tank - backwash pump.



Have you learned about the eight application fields of ultrafiltration water treatment system?

1, in the preparation of pure water and ultra-pure water process, as reverse osmosis pretreatment and ultra-pure water terminal treatment.
2, industrial water for the separation of bacteria, heat source, colloid, suspended matter, macromolecular organic matter, etc.
3, purify urban drinking water, purify mineral water. Ultrafiltration membrane technology can realize the inactivation and purification of microorganisms and fungi in drinking water and the purification of micron suspended particles. Ultrafiltration membrane technology can effectively remove nano particles and improve the quality of effluent water, which is of great significance to the drinking water health of urban residents.
4, fermentation, enzyme preparation industry, pharmaceutical industry concentration, purification and clarification. Concentration and separation of fruit juice.
5, soybean, dairy products, sugar industry, wine, tea juice, vinegar separation, concentration and clarification.
6. Purification and recycling of domestic sewage. Ultrafiltration membrane technology can achieve the standard treatment of urban sewage, because of the good biodegradability of urban sewage, the combined use of cyclic activated sludge (CASS) and ultrafiltration membrane technology can effectively improve effluent quality in practical work.
7, food processing wastewater, electroplating wastewater, oil wastewater and other industrial wastewater treatment.
8. It is used for separation, concentration and purification of biological products, pharmaceutical products and food industry, and has been increasingly used for concentration and purification of Traditional Chinese medicine.

FAQ:

1. What is the material of ultrafiltration membrane?

Polyacrylonitrile (PAN), polyethersulfone (PES), polyvinyl chloride (PVC), polysulfone (PS), polyvinylidene fluoride (PVDF)

2. What are the types of ultrafiltration membranes?

Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane

3. What is the operation mode of ultrafiltration membrane?

Operation mode: internal pressure type, external pressure type
