1000L RO Water Purifier Desalination Plant Water Treatment Machinery EDI

What is EDI?

EDI ( Electro deionisation), is a process whereby anions and cations in the feed water are adsorbed by mixed ion exchange resins, and these adsorbed ions are removed by passing through the anion and cation exchange membranes respectively under the action of direct current pressure.

The Features of EDI Water Treatment Plant

Combining the traditional electrodialysis technology ED and ion exchange technology IE is a process that continuously removes ions from raw water without the use of acids and bases, using a DC power supply, to continuously produce high quality pure water.

Technical Specifications of EDI Water Treatment Plant

EDI System Components

EDI pumps +EDI modules+ Control systems +Monitoring+ Metering systems+ Pure water tanks

The Working principle of EDI Water Treatment Plant

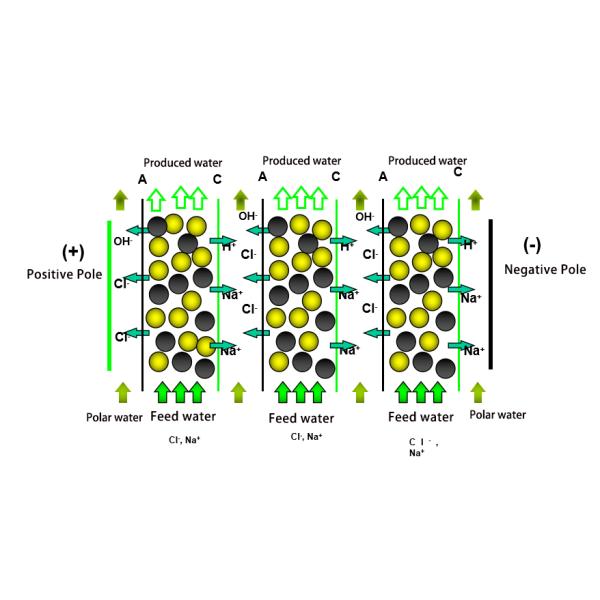

The EDI membrane block contains a number of EDI cells separated by a grid to form a concentrated water chamber and a fresh water chamber. Anion/cation electrodes are also provided at both ends of the cells.The anions and cations in the water stream passing through the fresh water chamber are removed in the fresh water chamber by means of a direct current and migrate through the anion and cation exchange membrane to the concentrated water chamber.(As shown in the picture)

EDI Water Treatment Plant Advantages

1,Water quality ≥18MQ.cm;
2,No need for acid and alkali regeneration;
3,Modular design, automatic operation;
4,Less waste water, concentrated water about 10% ;
5, core replacement cycle of 3-5 years, operation Low cost.

EDI Modules

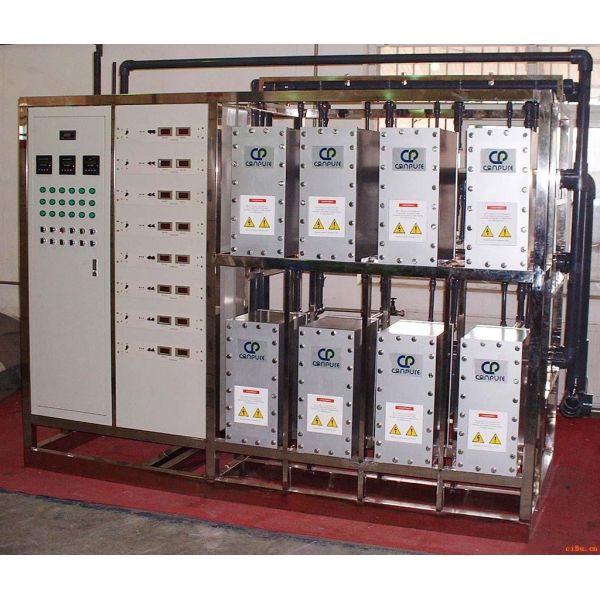

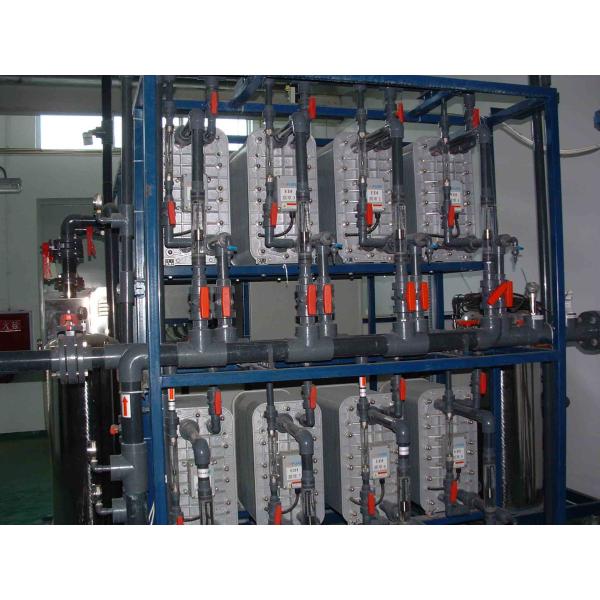

Product Photos

Wide Range of Applications of EDI Water Treatment Plant

EDI technology is mainly used for deep desalination of reverse osmosis (RO) produced water and is now widely used in many fields such as electronics, electric power, biology, pharmaceuticals and chemicals.

Our advantages, Jufu Water Purification Five Guarantees:

01 Focus on water treatment equipment for 14 years, the quality is trustworthy;
02 The product passed the ISO9001 quality system standard production
03 Provide free water treatment solutions;
04 Door-to-door installation service can be provided;
05 Provide lifetime after-sales service.

Pre-sale service:
1. Inquiry and purchase consultation.
2. Raw water test support.
3. Visit our factory

After-sales service:
1. Training how to install the machine, training how to use the machine
2. Lifetime online and telephone technical support services.
3. Overseas mechanical maintenance engineer on-site service installation or maintenance.

Here's a guide to getting the best offer

1. What is the source water to be treated? Industrial wastewater, tap water, well water, groundwater or seawater? Is there a water quality analysis report for conductivity?
2. How much capacity water treatment system do you need? 1000 liters per hour, 5000 liters per hour or more?
3. What is the purpose of outputting purified water? Drinking water, food, beverage manufacturing, industrial use or medical production use?
