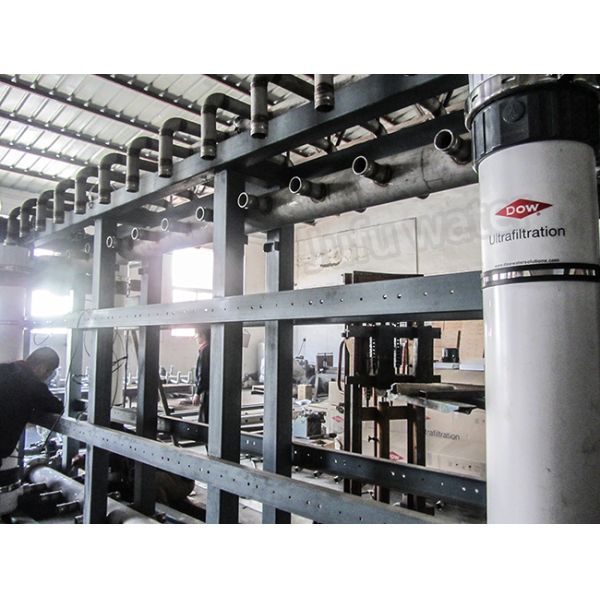

25TPH Ultrafiltration Water Treatment System Water Purification Plant

Ultrafiltration equipment (UF System) is part of a water treatment system based on user water quality. This is broad and applies to the separation, concentration and purification of substances. Under a certain pressure, the small molecule solute and solvent pass through a special membrane with a certain pore size, while the macromolecular solute cannot pass through and stays on one side of the membrane, so that the macromolecular substance is partially purified. Therefore, in this way, it becomes an expert in the interception of macromolecules, colloids, microorganisms and pyrogens, and is widely used in food and beverage, chemical electronics, environmental protection bioengineering, wastewater treatment and other fields.

Technical specification for Ultrafiltration Water Treatment System

The Flow Chart of Ultrafiltration Water Treatment System

Raw water + raw water tank + raw water pump + sand filter + carbon filter + security filter + UF system + pure water tank + ultraviolet sterilizer (ozone generation) + precision filter + water supply point


Advantages of Ultrafiltration Water Treatment System

A. Advanced and famous ultrafiltration membrane elements
B. High system recovery rate
C. There is no phase transition in the process
D. Low energy consumption, short production cycle, and low equipment operating costs
E. Small footprint, simple operation and maintenance, low labor intensity
F. The hygiene of the construction site is clean
G. The control system can be designed according to the specific requirements of users


Applications of Ultrafiltration Water Treatment System

1) the drinking water
2) Clarification and sterilization of mineral water
3) Water treatment for pharmaceuticals
4) Isolation and refinement of enzymes
5) Concentration and refinement of biological products
6) Concentration and separation of juice
7) Concentration and refinement of milking
8) Pretreatment of large water treatment equipment
9) Terminal treatment of ultra-pure water for electronic industry
10) Injection water treatment of ultra-low permeability Wells in oil fields
11) Treatment of industrial wastewater and recovery of available water


Technical parameters of Ultrafiltration Water Treatment System

Material: Polyacrylonitrile (PAN), polyethersulfone (PES), polyvinyl chloride (PVC), polysulfone (PS), polyvinylidene fluoride (PVDF)
Purpose: hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain TYPE MBR membrane, plate TYPE MBR membrane, tube type ultrafiltration membrane
Operation mode: internal pressure type, external pressure type
Operating pressure of hollow fiber ultrafiltration membrane: 0.1-0.3mpa
Shell material: ABS, PVC, PMMA, stainless steel
Size: 4 ", 6 ", 8 ", 10 "(different sizes)
Theoretical water yield of single membrane: 4 ": 0.5-1m3/h 8" : 3-4.5m3/h
Design water yield: 4 ": 0.5m3/h 8" : 2-2.5m3/h
Arrangement of hollow fiber ultrafiltration membrane: parallel connection
Recovery rate: 85%-90%

FAQ:

1. What is the material of ultrafiltration membrane?

Polyacrylonitrile (PAN), polyethersulfone (PES), polyvinyl chloride (PVC), polysulfone (PS), polyvinylidene fluoride (PVDF)

2. What are the types of ultrafiltration membranes?

Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane

3. What is the operation mode of ultrafiltration membrane?

Operation mode: internal pressure type, external pressure type
