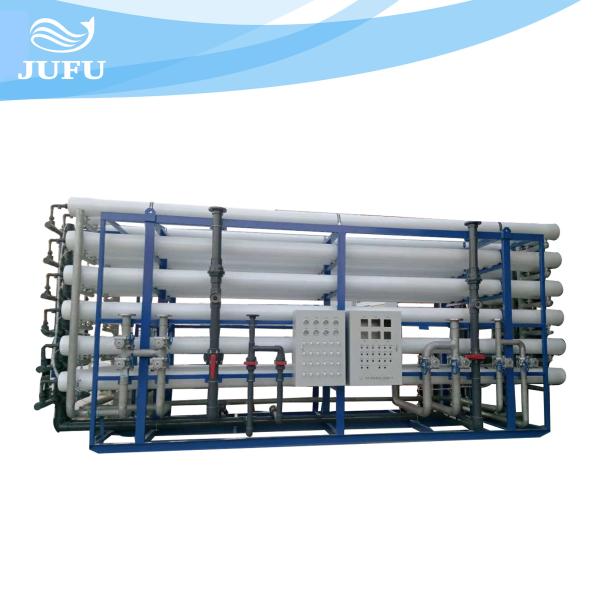

80TPH RO Water Treatment System FRP Pure Water Reverse Osmosis System

Product introduction of RO Water Treatment System

When a pressure greater than the osmotic pressure is applied to the brine side of the membrane, the direction of water flow is reversed, and the water in the brine flows into the freshwater side, a phenomenon called reverse osmosis (reverse osmosis, abbreviated as RO). It is pretreated first and then treated with RO. Through these treatments, 99% of dissolved salts and harmful substances such as particles, colloids, organic impurities, heavy metal ions, bacteria, viruses and heat sources can be removed. The desalination rate of the system reaches 96-98%, and the conductivity of the effluent is ≤ 10μ S/cm.

The basic working principle of RO Water Treatment System

After a special high-pressure pump, when the raw water is added to a pressure of 6-20 kg, the raw water permeates through the reverse osmosis membrane with a pore size of only 0.0001 microns under the action of pressure. Chemical ions, bacteria, fungi, and virions cannot pass through, and are discharged with wastewater. Only water molecules and solvents with a volume of less than 0.0001 microns are allowed to pass through.

Technical Specifications of RO Water Treatment System

Application fields of RO water treatment system:

1. Preparation of pure water and high-purity water required for electronic industry production such as kinescope glass bulbs, liquid crystal displays, circuit boards, computer hard disks, integrated circuits, chips, monocrystalline silicon semiconductors, etc.
2. Preparation of demineralized water and demineralized pure water for thermal power and thermal power boilers and low-pressure boiler feed water.
3. Preparation of medical infusions, injections, pharmaceuticals, pure water for biochemical products, medical sterile water and pure water for artificial kidney dialysis required by the pharmaceutical industry. Preparation of drinking pure water, distilled water, mineral water, alcoholic brewing water and pure water for blending in the beverage (including alcohol) industry.
4, sea water, brackish water to prepare domestic water and drinking water. To prepare pure water for surface coating, cleaning and coating glass of electroplating, storage battery, automobile, household appliances and building materials products; de-hardening and desalinating water required for textile printing and dyeing process.
5. The petrochemical industry, such as chemical reaction cooling water; pure water for chemical agents, fine chemicals, and cosmetics manufacturing. High-quality water supply network system and swimming pool water purification for hotels, buildings and communities.

Features of RO Water Treatment System

(1) The reaction rate is fast and the processing time is short.
(2) It has a wide range of applications, and has a good treatment effect on refractory organic compounds containing azo, carbon double bonds, nitro, and halogenated structures.
(3) The process is simple, the service life is long, the operating cost is low, the operation and maintenance are convenient, and the treatment effect is stable.
(4) The removal rate of chromaticity and COD is high, and the biodegradability of RO concentrated water is improved.


Process flow of RO Water Treatment System

Raw water → Raw water tank → Raw water pump → Multi-media filter (quartz sand filter) → Activated carbon filter → Soft water processor → Precision filter → High pressure pump → Primary reverse osmosis (RO) device → Purified water tank → High pressure pump → Two Stage reverse osmosis → ultraviolet sterilization device → water point.



Photos of reverse osmosis water treatment system

FAQ:

1. What is the design water yield of ro membrane element? (except anti-pollution membrane and seawater desalination membrane)

Model 4040 is designed by 0.25m3/h

Model 8040 is designed by 1-1.2m3/h

2. What is the material of mechanical filter?

Carbon steel, stainless steel, fiberglass

3.What are the multi-way control valves?

Manual control valve, automatic control valve

Multi - way control valve is divided into: filter valve and softening valve

Automatic control valve is divided into: time type and flow type.

Multi-way control valve brands are: FLECK, AUTOTROL, Runxin, clean source, etc.
