Specifications
Brand Name :
Siphtum
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
2-4 Weeks
Packaging Details :
Wooden box, Carton
Model Number :
AWP series
Price :
Negotiable
Material :
Stainless steel
1500 rpm flow (m³/h) :
4.5~36
1800 rpm flow (m³/h) :
5.4~11.2
3000 rpm flow (m³/h) :
1.8·3.5
Inlet Pressure (bar) :
2-5 bar
Outlet Pressure (bar) :
20-80
RPM range :
700-3000
Description

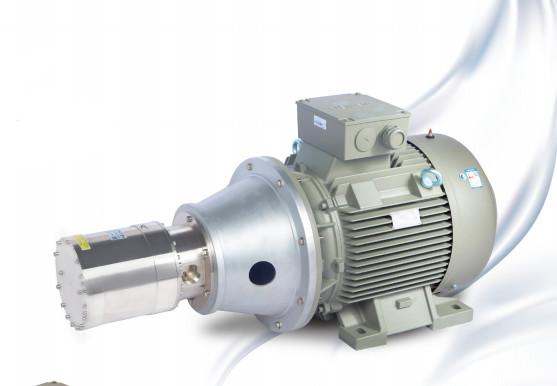

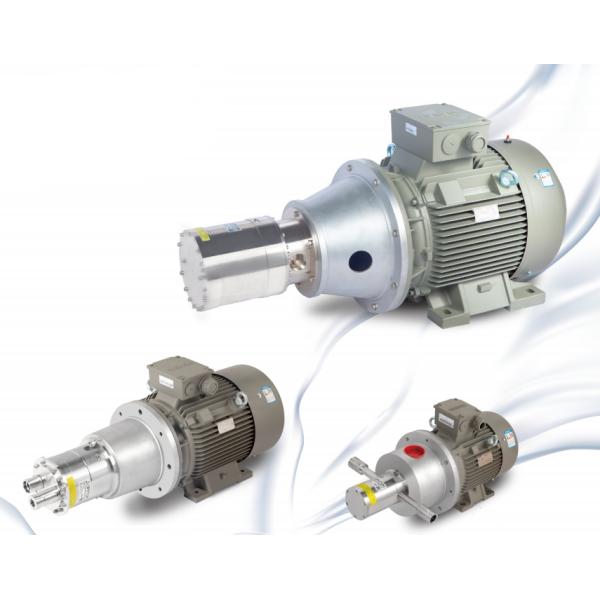

Stainless Steel High Pressure Water Piston Pump for Water Treatment System

AWP series High Pressure Water Piston Pump designed for Seawater desalination, High concentration brine treatment.

Stainless Steel High Pressure Water Piston Pump For Water Treatment System

Product Technical Specifications

AWP Series High Pressure Water Pump
Model 1500 rpm flow (m³/h) 1800 rpm flow (m³/h) 3000 rpm flow (m³/h) Inlet Pressure (bar) Outlet Pressure (bar) RPM Range
AWP11 1.8 2-5 20-80,MAX120 700-3000
AWP14 2.3 2-5 20-80,MAX120 700-3000
AWP16 2.7 2-5 20-80,MAX120 700-3000
AWP18 3.1 2-5 20-80,MAX120 700-3000
AWP21 3.5 2-5 20-80,MAX120 700-3000
AWP54 4.5 5.4 2-5 20-80,MAX120 700-1800
AWP65 5.4 6.5 2-5 20-80,MAX120 700-1800
AWP70 5.9 7.1 2-5 20-80,MAX120 700-1800
AWP80 6.8 8.2 2-5 20-80,MAX120 700-1800
AWP105 8.9 10.7 2-5 20-80,MAX120 700-1800
AWP110 9.3 11.2 2-5 20-80,MAX120 700-1800
AWP240 20.4 2-5 30-70 700-1500
AWP280 23.6 2-5 30-70 700-1500
AWP320 26.9 2-5 30-70 700-1500
AWP360 30.2 2-5 30-70 700-1500
AWP400 33.8 2-5 30-70 700-1500
AWP426 36 2-5 30-70 700-1500

Siphtum's Strength

Excellent Performance

| High efficiency

| Low Power Consumption

| Wide Pressure Range

| Low noise

Design Highlights

| Light and compact

| Onsite repair

| Longer Working hours with 10000h Maintenance-free

| PH tolerance >1

Manufacturing Highlights

| Friction adopts the latest diamond surface coating technology, longer lifespan

| Factory test combines conventional pressure and flow characteristics with unique sound and vibration detection

| Super-high processing accuracy and quality

Customer Service Highlights

| Predictive Maintenance

| Short leadtime

| Provide backup pump service

| Parts remanufacturing to reduce maintenance costs

| Short maintenance cycle

Optional Models

BWPSeries High Pressure Water Pump
Model 1500 rpm flow (m³/h) 1800 rpm flow (m³/h) 3000 rpm flow (m³/h) Inlet Pressure (bar) Outlet Pressure (bar) RPM Range
BWP11 1.8 2-5 20-80,MAX120 700-3000
BWP14 2.3 2-5 20-80,MAX120 700-3000
BWP16 2.7 2-5 20-80,MAX120 700-3000
BWP18 3.1 2-5 20-80,MAX120 700-3000
BWP21 3.5 2-5 20-80,MAX120 700-3000
BWP54 4.5 5.4 2-5 20-80,MAX120 700-1800
BWP65 5.4 6.5 2-5 20-80,MAX120 700-1800
BWP70 5.9 7.1 2-5 20-80,MAX120 700-1800
BWP80 6.8 8.2 2-5 20-80,MAX120 700-1800
BWP105 8.9 10.7 2-5 20-80,MAX120 700-1800
BWP110 9.3 11.2 2-5 20-80,MAX120 700-1800
BWP240 20.4 2-5 30-70 700-1500
BWP280 23.6 2-5 30-70 700-1500
BWP320 26.9 2-5 30-70 700-1500
BWP360 30.2 2-5 30-70 700-1500
BWP400 33.8 2-5 30-70 700-1500
BWP426 36 2-5 30-70 700-1500

Stainless Steel High Pressure Water Piston Pump For Water Treatment System

Stainless Steel High Pressure Water Piston Pump For Water Treatment System

Stainless Steel High Pressure Water Piston Pump For Water Treatment System

Stainless Steel High Pressure Water Piston Pump For Water Treatment System

Stainless Steel High Pressure Water Piston Pump For Water Treatment System

Stainless Steel High Pressure Water Piston Pump For Water Treatment System

Stainless Steel High Pressure Water Piston Pump For Water Treatment System

FAQ

Q: What’s the type of your company? Manufacturer or Trading agent?
A: We’re the Hi-tech manufacturer in Water treatment industrial for almost two decades, we specialized in integrating Research & Development, Manufacturing, Sales, Engineering installation and Consulting on water treatment and water purification equipment and technologies.

Q: What kind of information need to be provided for product selection?
A: What ‘s the raw source of your water? If possible, please provide Water Analysis Report.
B: What’s your request on the output capacity of the equipment?
C: What’s the application for the project?
D: What’s the piping standard applied in your local market?
E: Do you need on-site installation guidance?

Q: How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and sloved for overall optimization.

Q: What’s your payment terms?
A: Deposit in advance and balance before delivery.

Q: What’s the leadtime?
A: It depends. 3-5 weeks for general products.

Q: What’s your warranty?
A: Jufu offers 1 year warranty for the products.
The product itself can work for 5 years with proper use and maintenance.
