40T Per Hour Ultrafiltration Membrane Equipment UF Water Treatment Plant

Ultrafiltration is performed through a semi-permeable membrane filter.

Ultrafilters can be made of organic and inorganic materials. While organic materials are the cheapest solution, their low thermal, chemical and mechanical strength makes them unsuitable for harsh environments such as corrosive and high temperature environments. Inorganic ultrafilters have all these excellent properties and can withstand the vigorous and frequent chemical cleaning necessary to maintain excellent hygiene standards in many industries. Therefore, there are limits to the industrial, water and wastewater treatment tasks that organic membranes can withstand. Therefore, more and more industries are turning to inorganic membranes.
Based on more than 20 years of experience in water treatment, a high-quality inorganic ultrafiltration membrane has been developed based on silicon carbide, the second hardest material in the world after diamond. This extremely hard material provides consistent product quality regardless of water ingress.

Technical specifications of Ultrafiltration Water Treatment System

Workflow of Ultrafiltration Water Treatment System

Raw liquid - storage tank - pressure pump - precision filter - hollow ultrafiltration equipment - storage tank - backwash tank - backwash pump.



What can ultrafiltration be used for?

Ultrafiltration is used in many industries to treat all kinds of water and wastewater.
Ultrafilters are used in many industrial large-scale ultrafiltration systems to treat various types of water and wastewater. Among other things, ultrafiltration systems are used in dairy, biotechnology, pharmaceutical, food and beverage, drinking water treatment, water recycling and pool filtration.

UF can also be used as a pretreatment prior to nanofiltration (NF) and reverse osmosis (RO). The pretreatment filtration process protects the more sensitive NF or RO membranes to extend their life and reduce the risk of fouling problems. As pretreatment separates larger objects, it also reduces the need for chemical cleaning, thereby reducing operating expenses and operational downtime. The need for pretreatment depends on the feedwater and the desired product quality.

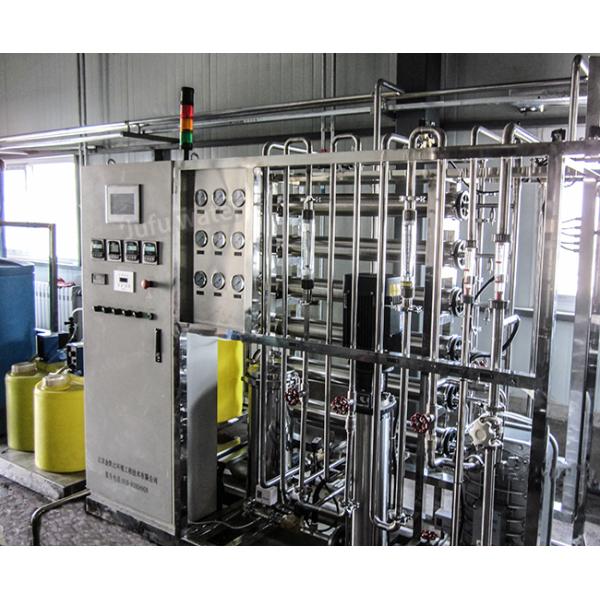

Photos of Ultrafiltration Water Treatment System

FAQ:

1. What is the material of ultrafiltration membrane?

Polyacrylonitrile (PAN), polyethersulfone (PES), polyvinyl chloride (PVC), polysulfone (PS), polyvinylidene fluoride (PVDF)

2. What are the types of ultrafiltration membranes?

Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane

3. What is the operation mode of ultrafiltration membrane?

Operation mode: internal pressure type, external pressure type
