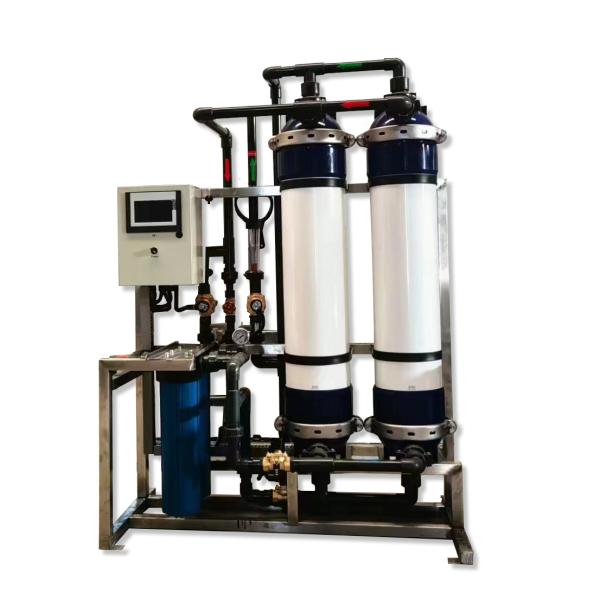

4TPH TPH Ultrafiltration Water Treatment Plant Ultra Filtration Plant

Ultrafiltration is one of membrane separation techniques driven by pressure. For the purpose of separating large and small molecules, the pore size of the membrane is between 20-1000A°. Hollow fiber ultrafilter (membrane) has the advantages of high filling density per unit container and small footprint.

Ultrafiltration is a pressurized membrane separation technology, that is, under a certain pressure, the small molecules of solute and solvent through a specific aperture of the membrane, while the large molecules of solute can not penetrate, left on one side of the membrane, so that the macromolecular material has been partially purified. Ultrafiltration is one of membrane separation techniques driven by pressure. For the purpose of separating large and small molecules

Technical specifications of Ultrafiltration Water Treatment System

Process flow of Ultrafiltration Water Treatment System

Raw water → original water tank (supplied by the buyer)→ raw water pump → disc filter → activated carbon filter →5μm security filter → ultrafiltration device → pure water tank (supplied by the buyer)→ water supply point


Application of Ultrafiltration Water Treatment System

1) the drinking water

2) Clarification and sterilization of mineral water

3) Water treatment for pharmaceuticals

4) Isolation and refinement of enzymes

5) Concentration and refinement of biological products

6) Concentration and separation of juice

7) Concentration and refinement of milking

8) Pretreatment of large water treatment equipment

9) Terminal treatment of ultra-pure water for electronic industry

10) Injection water treatment of ultra-low permeability Wells in oil fields

11) Treatment of industrial wastewater and recovery of available water

FAQ:

1. What are the types of ultrafiltration membranes?

Hollow fiber ultrafiltration membrane, electrophoretic paint ultrafiltration membrane, curtain MBR membrane, plate MBR membrane, tube ultrafiltration membrane

2. What is the operation mode of ultrafiltration membrane?

Operation mode: internal pressure type, external pressure type

3. What is the shell material of the ultrafiltration membrane?

Shell material: ABS, PVC, PMMA, stainless steel
