Specifications
Brand Name :
ROYAL
Model Number :
RTAC1215
Certification :
CE
Place of Origin :
China
MOQ :
10 sets
Payment Terms :
L/C, T/T
Supply Ability :
15 sets per month
Delivery Time :
12 weeks
Packaging Details :
Export standard
Price :
negotiable
Vacuum Technology :
Cathodic Multi Arc Plating, PVD Arc Evaporation, Magnetron Sputtering MF
Deposition Sources :
Circular Arc Cathodes, Pulsed Bias Power For Plasma Cleaning
Coating Films :
Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Industrial Applications :
Metal Ware Door Handles, Door Handle, Metal Furniture, Zinc Alloy, Brass Furniture
Name :
Titanium Nitride Coating Machine
feature :
low maintenance
Factory Location :
Shanghai city, China
Worldwide Service :
Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service :
Machine operation, maintenance, coating process Recipes, program
Warranty :
Limited warranty 1 year for free, whole life for machine
OEM & ODM :
available, we support tailor made design and fabrication
Description

PVD TiN Gold Coating Machine for glassware

The RTAC-1215 multi-arc plating machine is designed for S, M size hardware work pieces PVD plating, like: glassware, steel, metal alloy, ceramic etc.

The high light of this machine is, deposit the film in a low temperature: so that door/window/cupboards handles, door locks etc, Copper Alloy Faucets. (MS60), ZinC alloy, Brass, stainess steel .The cathodic arc’s exclusive design for plastic low temperature coating like ABS&PP.

The specifications:

1. Arc ( Ion Plating ) series equipment consists of: vacuum chamber, vacuum pumps, arc sources, spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems, substrate

carrier etc.

2. Benefits: easy to operate, compact foot print, low cost of owner ship, fast substrate exchange.

3. Coating Types: metal & alloy coatings, multiple layers coatings.

4. Coating Colors: gold, black, brown, grey, Chrome, rainbow colors etc

5. Substrates: stainless sheets and tubes, metal alloys, glass, ceramic materials

6. Coating properties: high shiny and bright colors, strong adhesion & excellent scratch protection.

Technical Advantages

1. Strong background of R&D support, focus on details of manufacturing.

2. Robust rotational system design for high up time.

3. Exclusive arc sources to guaranty high coatings quality, none color difference.

4. Powerful pump set for short cycle time and high productivity.

5. Unique design is friendly operation and low maintenance.

6. Turnkey coating solutions.

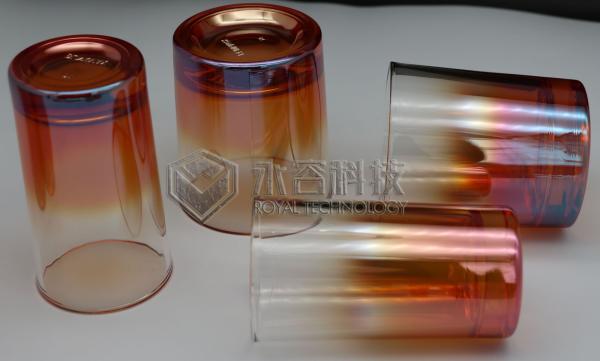

Coating Samples:

Amber Color Glass Products PVD Coating Machine Arc Evaporation Plating Machine On Glass BeadsAmber Color Glass Products PVD Coating Machine Arc Evaporation Plating Machine On Glass Beads

Amber Color Glass Products PVD Coating Machine Arc Evaporation Plating Machine On Glass Beads
