PVD Plating Glass Coating Machine TiC Deep Black Coating By Arc Evaporation
PVD Plating Glass Coating Machine TiC Deep Black Coating By Arc Evaporation
PVD Plating Glass Coating Machine TiC Deep Black Coating By Arc Evaporation
PVD Plating Glass Coating Machine TiC Deep Black Coating By Arc Evaporation
PVD Plating Glass Coating Machine TiC Deep Black Coating By Arc Evaporation
PVD Plating Glass Coating Machine TiC Deep Black Coating By Arc Evaporation
Specifications
Brand Name :
ROYAL
Model Number :
RTAC
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
5 sets per month
Delivery Time :
12 weeks
Packaging Details :
Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Technology :
PVD plating, Ion plating gold
Deposition source :
cathodic arcs
Target Material :
Ti, Cr, Zr, SS, Al, Cu, TiAl, Fe alloy
Work pieces :

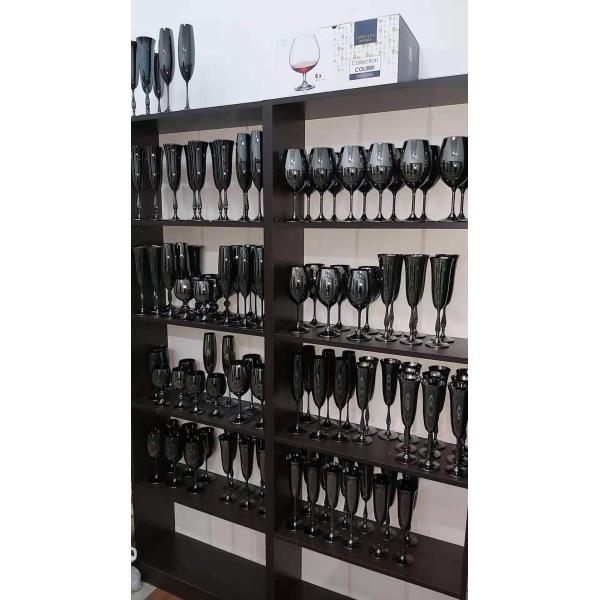

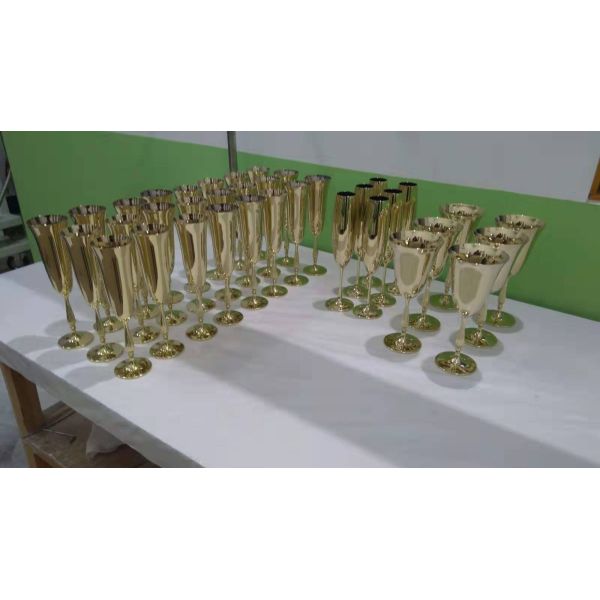

Glass cups, wine cups
Coating Colors :
Gold, copper, black, grey, rose gold, rainbow, Chrome
model :
RTAC
Factory Location :
Shanghai city, China
Worldwide Service :
Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service :
Machine operation, maintenance, coating process Recipes, program
Warranty :
Limited warranty 1 year for free, whole life for machine
OEM & ODM :
available, we support tailor made design and fabrication
Description


The machine's location: Ukraine
Built Time: 2017
Applications: glass vase, glass cups, ceramic products, metal and steel parts

Applications:
Bathroom and shower fixtures
Sanitary ware and plumbing applies
Door handles, fasteners, safe and locks
Glass and ceramic products
Eyewear
Writing Instruments

Only to name a few, but for more applications, please contact Royal Technology.


PVD Plating Glass Coating Machine TiC Deep Black Coating By Arc Evaporation
PVD Plating Glass Coating Machine TiC Deep Black Coating By Arc Evaporation



Advantages
Many bright colors of final finishings
Excellent scratch resistance
Enables longer life of products
Environmentally-friendly process
Robust and high volume design machine
HMI friendly operation system
Low maintenance
Low cost of ownership

Key Features

STANDARD, MODULAR DESIGN
1. PS eletrical enclosure, designed and manufactured strictly following CE standards
2. Central control cabinet with PLC, power output control and general power distributor
3. Operating software program in PLC is exclusive developed by Royal Technology, each set machine is ready for system upgrading



Description RTAC1000 RTAC1200 RTAC1400 RTAC1600


Standard Applications

 Medical & beauty instruments, pen, watches, glass beads, small size products Door handles, safe and locks, eyewear, fasteners, consumer electronic metal parts Sanitary ware, bathroom fixtures, glassware of medium size

Faucets, plumbings,
furniture components, metal lamps, for high volume products

Deposition Chamber
(mm)

 φ1000 * H800

φ1200 * H1500

 φ1400 * H1600

φ1600 * H1800

Maximum Loading
(kg)

 500 800 800 1000

Central Driving
Effective Coating Area (mm)

 φ800*H500

6: φ760*H1100
8: φ700*H1100

6: φ835*H1200
8: φ905*H1200

8: φ900*H1500
10:φ1000*H1500

Planetary Driving
Effective Coating Area (mm)

 6*φ250*H500

6: φ320*H1100
8: φ260*H1100

6: φ370*H1200
8: φ300*H1200

8: φ350*H1400
10: φ290*H1400

Pulsed Bias Power
(KW)

 24 24 36 48
Circular Arc Cathode (sets) 6 14 14 18
High Vacuum Pumps 1*Turbo Molecular Pump 2 * Turbo Molecular Pumps

1* Diffusion Pump or
3* Turbo Molecular Pumps

2* Diffusion Pumps or
4* Turbo Molecular Pumps
Backing Pumps 1*SV300B + 1*WAU501+ 1*TRP36 2*SV300B+1*WAU1001+1*TRP48 2*SV300B+1*WAU2001+1*TRP60 1*SV630BF+1*WAU2001+1*TRP90




If you are interested in outsourcing the PVD coating service, please contact us, we have global resources to help you get your desired coatings.
