22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
Specifications
Brand Name :
ROYAL MACHINE
Model Number :
MDF-30A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1unit
Price :
usd2256
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600units/month
Delivery Time :
5-20days
Packaging Details :
plywood case
name :
screw air compressor
cooling :
by air/water
voltage :
220v/380v/400v
Motor Power :
18~400(Kw)
Air Delivery :
2.3~68.5(m3/min)
Working Pressure :
7~13.0(Bar)
Description
DHH0.7Mpa0.8Mpa1.0Mpa1.3MpaPowerOutletDriving ModeWay of coolingWay of startVoltage
Model No.m3/minm3/minm3/minm3/minKWHPDia.
MDF-10A1.31.21.00.847.510G3/4''Direct transmissionAir CoolingFrequency start380v/415v-50hz, 380v/220v/400v-60hz
MDF-15A1.71.61.41.21115G3/4''
MDF-20A2.42.32.01.61520G3/4''
MDF-30A3.63.43.22.82230G1''
MDF-50A6.56.25.64.93750G1'' 1/2''
MDF-75A10.19.58.57.55575G2''
MDF-100A13.612.812.310.275100G2''
MDF-125A16.115.514.012.590125DN50
MDF-150A21.219.617.815.5110150DN65Direct transmissionAir/Water CoolingFrequency start
MDF-175A24.123.220.517.8132175DN65
MDF-220A28.827.825.022.4160220DN80
MDF-250A32.531.228.025.8185250DN80
MDF-270A34.534.030.528200270DN80
MDF-300W36.834.731.529.5220300DN100Direct transmissionWater CoolingFrequency start
MDF-350W43.041.538.034.9250350DN100
MDF-375W51.3550.5946.0641.51280375DN125
MDF-400W56.7955.9550.0845.62315400DN125
MDF-450W66.0865.4355.1249.58355450DN125
MDF-500W75.0574.3164.4658.07400500DN125

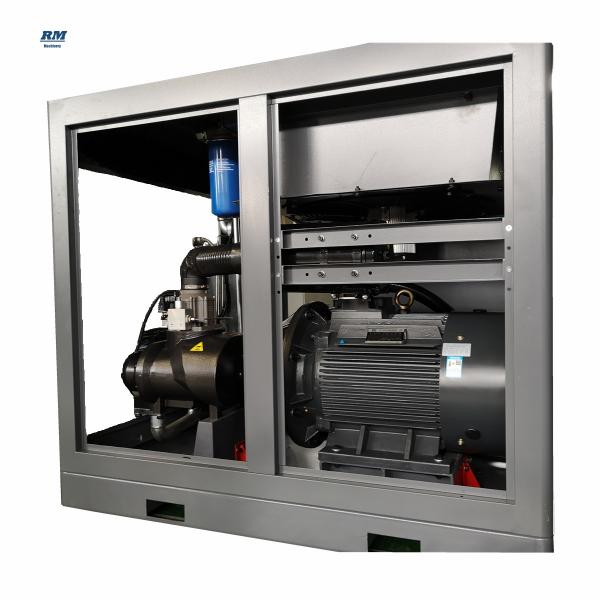

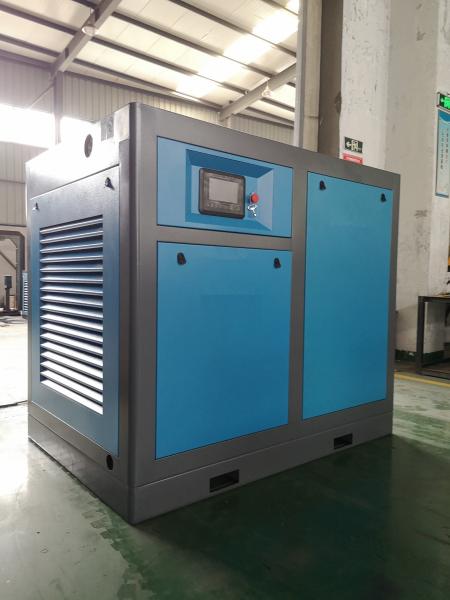

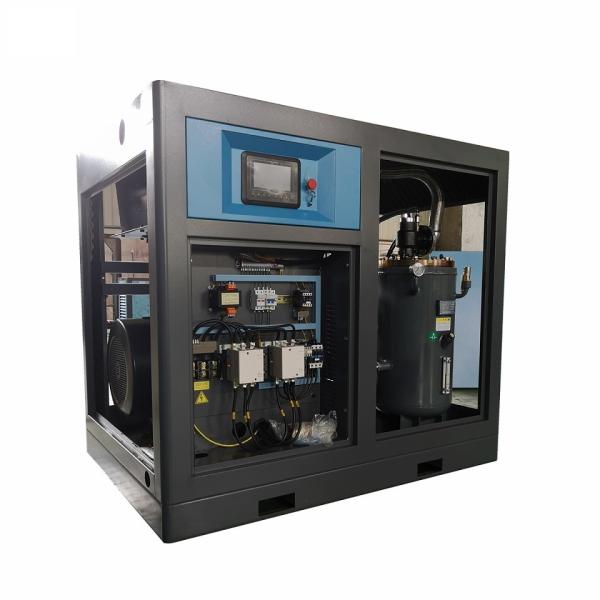

Stationary Air Cooled Screw Compressor Direct driven screw compressor

IP55 electric motor

Coupling driven

Air cooling

Big air flow capacity

Lower noise 22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor

22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor22kw-400kw Stationary Air Cooled Screw Compressor Direct driven screw compressor
