7.5kw screw air compressor 50HZ RMD-10A three phase 8bar compressor refrigerated air dryer with 320L tank
7.5kw screw air compressor 50HZ RMD-10A three phase 8bar compressor refrigerated air dryer with 320L tank
Specifications
Brand Name :
ROYAL MACHINE
Model Number :
RMD-10A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1unit
Price :
usd2256
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600units/month
Delivery Time :
5-20days
Packaging Details :
plywood case
name :
all in one screw air compressor
type :
permanent magnet inverter
cooling :
by air
voltage :
220v/380v/415v
tank volume :
160liters*2
Description

7.5kw screw air compressor 50HZ RMD-10A three phase 8bar compressor refrigerated air dryer with 320L

·Main motor: Permanent magnet motor IP23

·Control type: microprocessor

·Driven type: One shaft direct driven

·Cooling type: air cooling

·Residual oil content: less than 3 ppm (with one pcs line filter)

·Air dryer: refrigerant R410

·Delivery: 25 days

Technical parameters:

Model No. Air Flow Pressure Power Outlet Dimension Weight Tank capacity Voltage
m3/min Bar Kw Hp Inch mm Kg L
RMD-10A 1.2 8 7.5 10 G3/4" 1700*800*1400 395 160*2 220v/1p/50hz
1.0 10
RMD-10A 1.2 8 7.5 10 G3/4" 1700*800*1400 395 160*2 380v/3p/50hz
1.0 10
RMD-15A 1.6 8 11 15 G3/4" 1800x850x1500 500 160*2 380v/3p/50hz
1.4 10
RMD-20A 2.3 8 15 20 G3/4" 1800x850x1500 520 160*2 380v/3p/50hz
1.8 10
RMD-30A 1.2 8 22 30 G1-1/4" 1800x1000x1880 870 320*2 380v/3p/50hz
1.0 10
RMD-30A 1.2 8 22 30 G1-1/4" 1800x1000x1880 870 500*1 380v/3p/50hz
1.0 10

Photos:

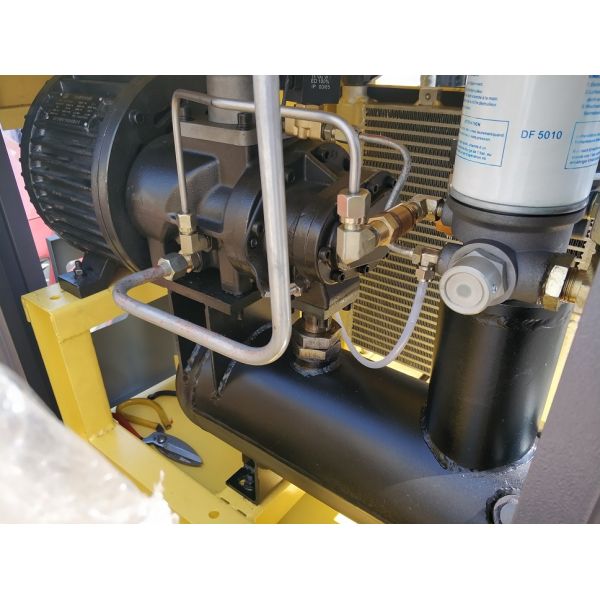

Mann filters, and copper piples

7.5kw screw air compressor 50HZ RMD-10A three phase 8bar compressor refrigerated air dryer with 320L tank

Permanent magnet motor, one shaft connect of airend and electric motor

7.5kw screw air compressor 50HZ RMD-10A three phase 8bar compressor refrigerated air dryer with 320L tank

Touch screen controller, high quality

Tank size: 160liters *2pcs

7.5kw screw air compressor 50HZ RMD-10A three phase 8bar compressor refrigerated air dryer with 320L tank
